Digital Pressure Gauges

Digital Pressure Gauges

WHY USE DIGITAL PRESSURE GAUGES

We carry Additel’s ADT680 & ADT681 series of digital pressure test gauges. These gauges offer laboratory standards of testing accuracy, in a rugged, hand-held field instrument. With gauge pressure, compound pressure, differential & absolute pressure range options, they cover every pressure range up to 420 MPa in various pressure measurement units. We can offer gauges with menu-driven ease of use, data logging, wireless connectivity and low-light readability. For instant user comprehension of results some models combine digital with analogue display.

When it comes to choosing a high quality digital pressure gauge, it’s hard to go past the selection at Zedflo. We specialise in supplying Additel digital pressure gauges to industries across Australia, and our highly experienced team is always on hand to provide you with expert advice.

Our digital pressure gauges provide the highest levels of both reliability and performance, and are used in a range of demanding applications, including in the mining, oil and gas, and chemical industries.

ABOUT OUR DIGITAL PRESSURE GAUGE RANGE

We stock and supply the Additel 680 and 681 series of digital pressure gauges, renowned for their high standard of testing accuracy and robust construction. Suitable for both general industrial applications and for testing and calibration, 680 and 681 series digital pressure gauges have a range of additional and customisable features that ensure you have the specifications you need.

DIGITAL PRESSURE GAUGES — VARIATIONS

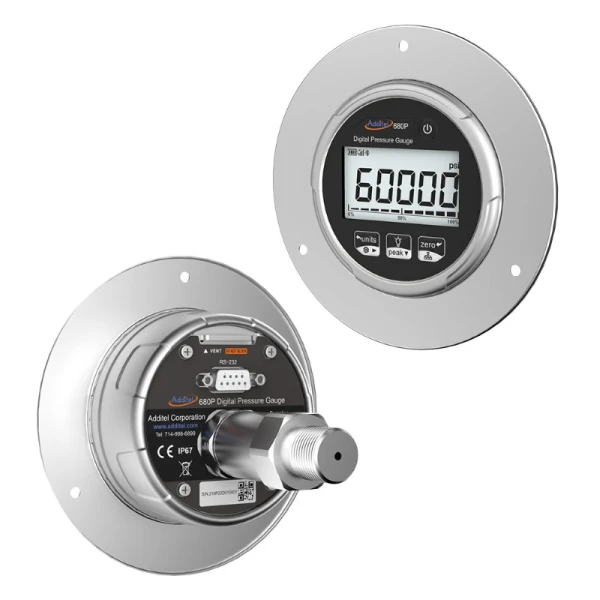

ADT 680/680W IP67 Digital Pressure Gauge

As well as microprocessor technology and silicon pressure sensors, the ADT 680/680W IP67 Digital Pressure Gauge has data logging and wireless capabilities, enabling the monitoring and logging of pressure in real time, with results being stored either internally or on a PC. The display is easy to read and navigate, and the gauge has an IP67 waterproof rating.

This is the ideal digital pressure gauge when you are looking for high levels of accuracy combined with reliability of performance. These are just some of the features: pressure ranges to 60,000 psi (4,200 bar), 05%FS, 0.1%FS or 0.25%FS accuracy, fully temperature compensated accuracy, IP67 waterproof rated and data logging and wireless (680W)

ADT 681 Digital Test Gauge

The Additel ADT 681 digital test gauge features a range of accuracy specifications up to 0.02% of full scale, and has IECEx hazardous approval and so can be used in Australia without additional testing. There are a range of options and configurations available, including an intrinsically safe and IP67 version.

The ADT 681 digital test gauge provides a highly efficient and cost-effective pressure solution. These are just some of the features: pressure ranges to 420 MPa (60,000 PSI), 0.02%, 0.05%, 0.1% or 0.2% FS or 0.1% RD accuracy, % pressure indication with fan-shaped graph scale for visual reference, fully temperature compensated accuracy, panel mount gauges are available (optional), intrinsically safe version 681IS (optional), data logging (optional) and IP67 rated (681IS).

ADT 681 Digital Differential Test Gauge

Able to measure and display gauge pressure, compound pressure, absolute pressure and differential pressure, the ADT 681 Digital Differential Test Gauge is suitable for field gauge calibration, pressure regulator testing, and pressure safety valve testing.

There are a range of options and configurations available, and the ADT 681 Digital Differential Test Gauge has IECEx hazardous approval. You can also choose the most cost-effective accuracy specifications to suit your needs. These are just some of the features: pressure ranges to 420 MPa (60,000 PSI), 02%, 0.05%, 0.1% or 0.2% FS accuracy, % Pressure indication with fan-shaped graph scale for visual reference, fully temperature compensated accuracy, panel mount gauges are available (optional), intrinsically safe version 681IS (optional) and data logging (optional)

ZEDFLO – AUSTRALIA’S LEADING SUPPLIER OF DIGITAL PRESSURE GAUGES ACROSS AUSTRALIA

The team at Zedflo are specialists in digital pressure gauges, and our team are happy to provide you with the advice and guidance to ensure that you have the right gauge to meet your needs. Contact us on 08 9302 1266 or email sales@zedflo.com.au to find out more.

Digital Pressure Gauges

Our Additel digital pressure gauges are cutting-edge instruments used to measure and display pressure levels in various systems. Unlike traditional analogue gauges, these digital variants offer more precise readings and simpler readability. Some of our digital pressure gauges also come with enhanced features like data logging, and compatibility with modern technology (Bluetooth etc.). They play a crucial role in industries where accurate pressure monitoring is essential, such as in the fields of hydraulics, gas industry, and process control. We offer a wide range of pressure gauges and price points, so we can consult on the best solution for you and your company.

Accuracy of Digital Pressure Gauges

We offer a range of digital pressure gauges, from low-price standard accuracy models suitable for industrial use, all the way to high-accuracy models for calibration or accuracy-critical work. Our precision gauges are critical in applications where even slight variations in pressure can lead to significant changes in performance or safety. Ensuring our clients have the best possible solution for tracking and monitoring pressure is our priority. Get in contact with one of our consultants today if you need help deciding what solution will be best for you. If you are worried or know it’s been a while since your last pressure gauge service we recommend you get in contact with us to book a calibration.

Advantages and Disadvantages of Digital Gauges

Advantages:

  •         Accuracy: Digital pressure gauges can be far more accurate than their analogue counterparts, so for accuracy-critical work are the better option.
  •         Calibration: Digital gauges generally have a more involved calibration mechanism allowing for more accurate readings along the entire range.
  • Customisation and Data Collection: These gauges offer significant customisation options, like the ability to display pressure in various units, record high and low readings, and even create custom units for specific applications. Many digital gauges can connect to computers or data loggers for efficient data collection and analysis​​​​.
  •         Readability and Reduced Error: Digital gauges feature clear, easy-to-read displays, often with backlighting, minimizing the chance of misinterpretation or parallax errors common in analogue gauges​​.
  • Minimal Moving Parts: The design often includes fewer moving parts, which reduces susceptibility to wear and tear. This also means they are able to withstand mechanical vibrations – a common situation in which an analogue gauge could struggle.

Disadvantages:

  • Power Dependency: Digital gauges require a power source, usually batteries or a power supply, which can be a drawback in remote locations or when batteries drain unexpectedly. Options like solar or loop power have their limitations, such as dependency on sunlight or a continuous power supply​​​​.
  • Cost: Digital gauges tend to be more expensive initially due to their sophisticated technology and features. However, this cost may be offset in the long run by reduced maintenance and replacement needs​​​​.

Digital vs. Analogue Pressure Gauges

Digital Pressure Gauges:

  • Offer precise digital readouts.
  • Often have backlit displays for easy reading in various light conditions.

Analogue Pressure Gauges:

  • Use a needle to display pressure.
  • Simpler but less precise.

Why Choose Digital Gauges

Our digital pressure gauges are preferred for their precision, user-friendliness, and additional features. Our gauges also have features like data storage, customisable alerts, and integration with other digital systems.

Accuracy Comparison: Analogue vs. Digital

While both analogue and digital gauges can be accurate, digital gauges generally offer superior precision. They are less prone to interpretation errors and can provide finer detail in readings. We offer both digital and analogue gauges for your convenience. However, if you are unsure what would be best for you get in touch with us and one of our experts will be able to help advise you.

The Value of Digital Pressure Gauges

Investing in digital pressure gauges is beneficial due to their accuracy, reliability, and adaptability to various applications. They will improve system efficiency and safety, making them a worthwhile investment for many industries. Contact us to find out how our products can make your business more efficient.

Calibration of Digital Pressure Gauges

Calibration is crucial for maintaining the accuracy of digital pressure gauges. Our process involves adjusting the gauge (if applicable) to ensure its readings are consistent with known standards. Regular calibration is essential for maintaining measurement integrity.

Applications of Digital Pressure Gauges

Digital pressure gauges are versatile and used in various industries, including:

  • Manufacturing: For monitoring and controlling pneumatic and hydraulic systems.
  • Automotive: In testing and servicing of vehicle systems.
  • Environmental Monitoring: For tracking atmospheric or water pressures
  • Mining Process and Power: for testing, calibrating and data logging of pressures

… and many more

Overpressure Limits in Digital Pressure Gauges

The overpressure limit is the maximum pressure a gauge can withstand without incurring damage. Understanding and adhering to this limit is vital for the longevity and reliability of digital pressure gauges. Overpressuring digital gauges will likely result in sensor damage that is uneconomical to repair.

Contact us today for Digital Pressure Gauges

For more information, consultation on specialised digital pressure gauges, or to book a calibration service, don’t hesitate to reach out. Contact us today to discover how our digital pressure gauges can elevate your business’s efficiency and precision.
