Intrinsically safe digital pressure gauge with Bluetooth connectivity, ATEX and IECEx certification, and rugged IP67 stainless steel construction. Accurate, durable, and built for demanding hazardous environments.
0.5% FS accuracy for all pressure ranges

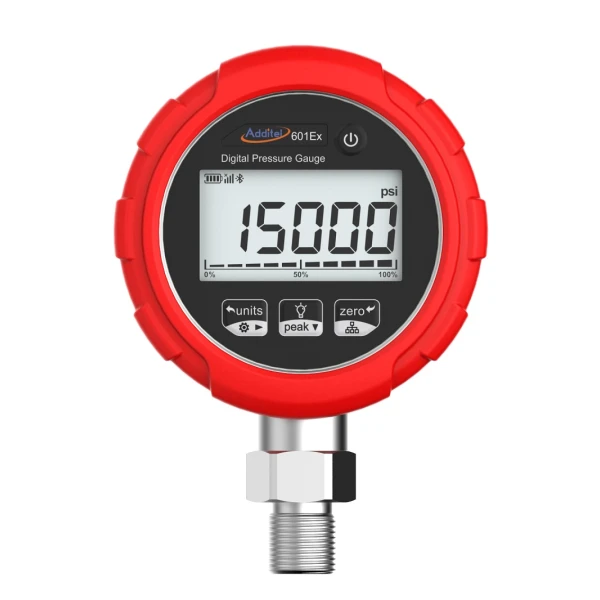

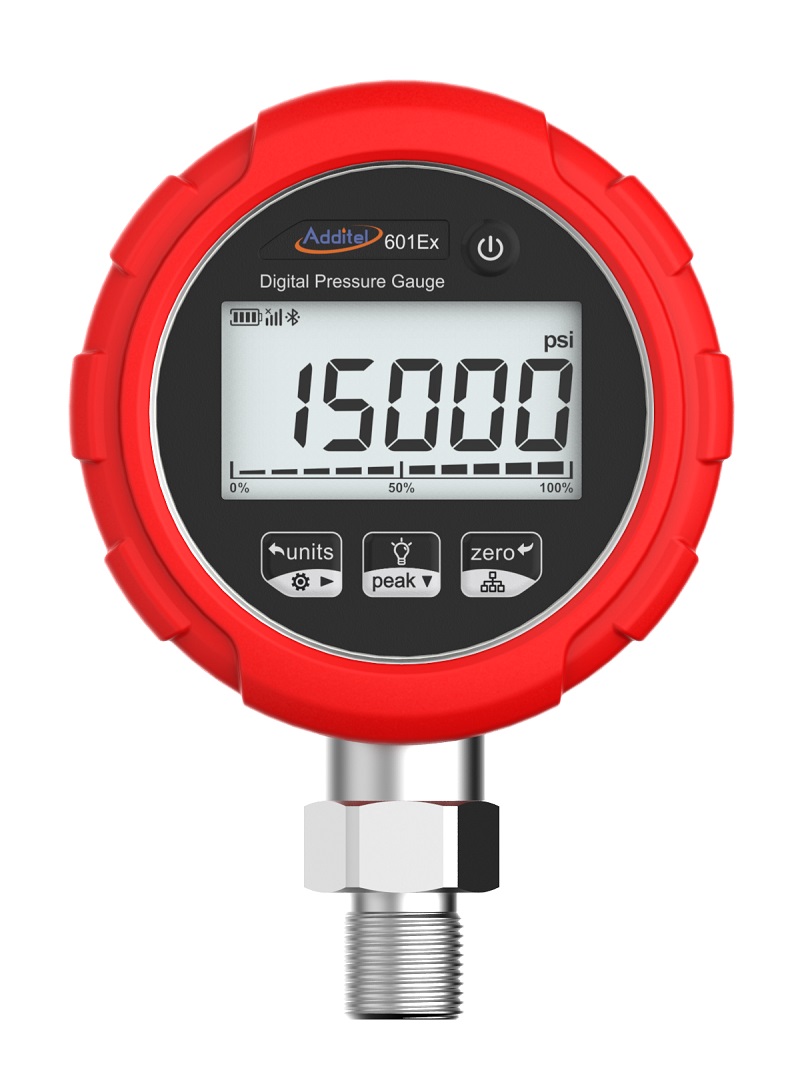

Rubber Boot (RED) for the ADT601EX is not included and can be bought separately below.
Price range: $565.00 through $707.00 ex. GST

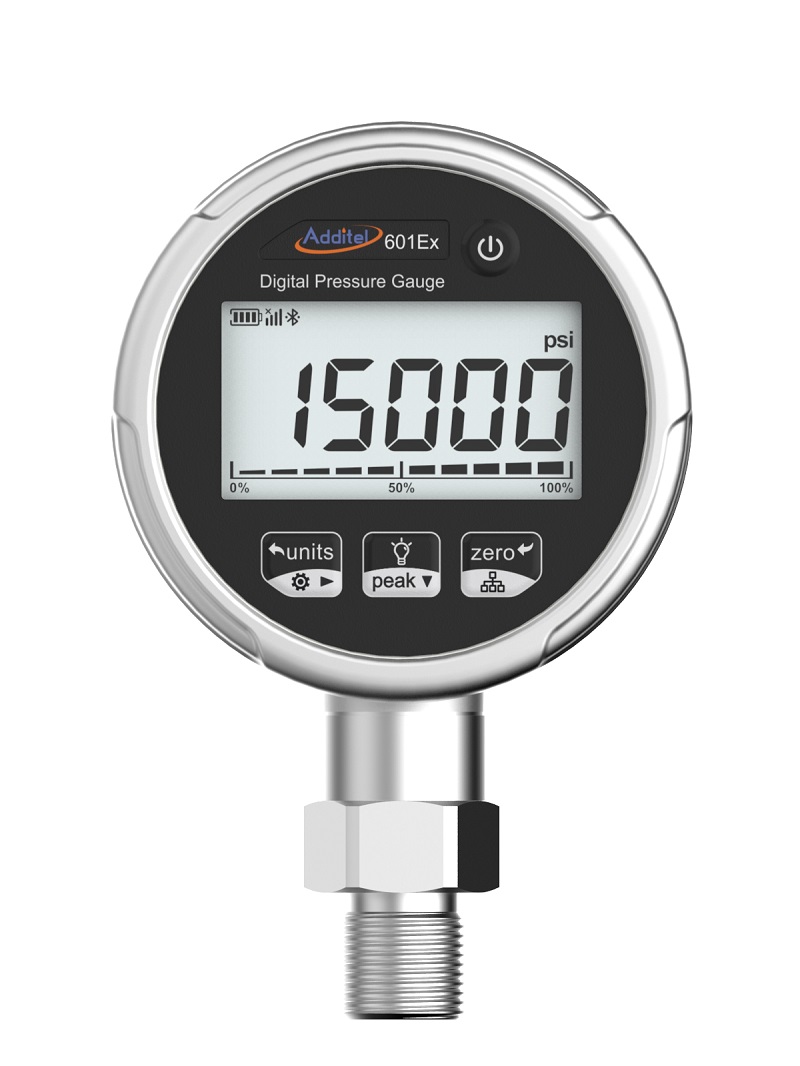

The ADT601Ex intrinsically safe digital pressure gauge is designed to improve upon traditional dial pressure gauges by providing a reliable and accurate digital solution for a minimal investment. The included Bluetooth technology allows users to connect directly to mobile phones for remote monitoring. This genuine Additel gauge was designed for the field to be an economical, but accurate and dependable gauge for use in a variety of environments, including intrinsically sensitive areas.
| Durable:Â

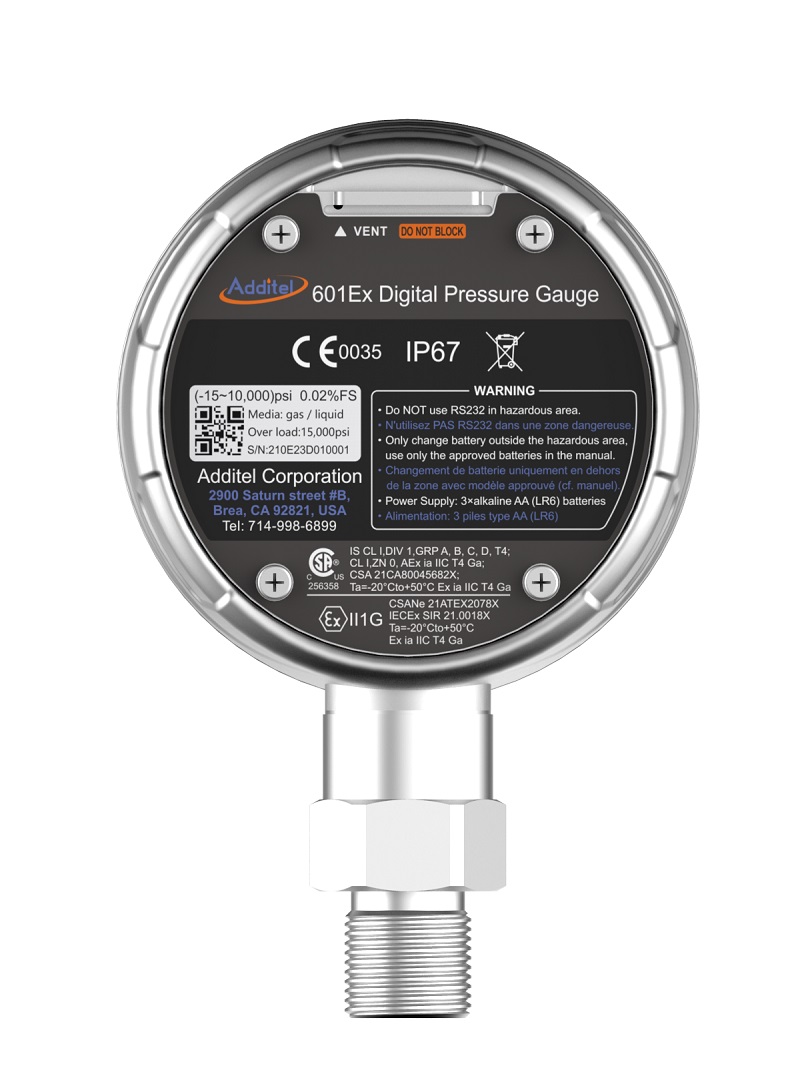

The ADT601Ex has passed the most stringent ATEX, IECEx intrinsic safety certifications. Each unit complies with a certification level of Ex ia IIC T4 Ga. This highly qualified reference recorder can be widely used in potentially explosive gas environments, such as oil and gas platforms, refineries, chemical and petrochemical plants, pharmaceutical industry, energy and gas processing industry. |
| Durability:
With a durable stainless steel outer shell, welded silicon piezoresistive sensor, and drop test rated to 1 meter, these gauges are up to the task in the most demanding environments. The dustproof and waterproof rating (IP67), coupled with the shock and vibration resistance (5g vibration 10g shock) offer even more insurance that these gauges are durable. If that wasn’t enough, we’ve also designed them to handle up to 3X overpressure to guard against over pressure damage. |
| Easy to use:
Field operators often have tight schedules and high task loads, and there is no extra time for making mistakes. This means that the digital pressure gauge must be simple and easy to use. The ADT601Ex series gauges are carefully designed with button functions which can be operated smoothly and quickly. The display is clear in bright sunlight, and the backlight can be turned on with one touch for darker ambient conditions. The pressure value can be displayed in large fonts and the pressure can be read from a few meters away. The pressure change trend bar is simple and clear. |
| Easy maintenance:
The ADT601Ex is designed with membrane buttons, which can simply be wiped clean for quick and simple cleaning. Coupled with the extra-long battery life of these easy-to-use gauges, you will find that maintenance is minimal and infrequent. |
| Feature | ADT681A | ADT680A | ADT680P | ADT601Ex | ADT685 | ADT686 | ADT673 |
|---|---|---|---|---|---|---|---|
| Gauge Pressure | • | • | • | • | • | • | • |
| Compound Pressure | • | • | • | • | • | • | |
| Absolute Pressure | • | • | • | • | |||
| Differential Pressure | • | • | • | • | |||
| Range | -15 to 60K psi (-1 to 4200 bar) |
-15 to 60K psi (-1 to 4200 bar) |
-15 to 60K psi (-1 to 4200 bar) |
-15 to 15K psi (-1 to 1000 bar) |
-15 to 60K psi (-1 to 4200 bar) |
-15 to 60K psi (-1 to 4200 bar) |
-15 to 60K psi (-1 to 4200 bar) |
| Available Accuracies (range dependent) |
0.02%, 0.05%, 0.1%, 0.2%FS & 0.1%RD |
0.1%, 0.2%FS | 0.02%, 0.05%, 0.1%, 0.2%FS & 0.1%RD |
0.5%FS | 0.02%, 0.05%, 0.1%, 0.2%FS & 0.1%RD |
0.02%, 0.05%, 0.1%, 0.2%FS & 0.1%RD |
0.02%, 0.05%, 0.1%, 0.2%FS & 0.1%RD |
| Digital Display | • | • | • | • | • | • | • |
| Analog Display (Fan-Shaped Indication) |
• | • | |||||
| Fully Temperature Compensation from -10°C to 50°C |
• | • | • | -20 to 50°C | • | • | • |
| Resolution | 5, 6 digits | 4, 5 digits | 4, 5 digits | 4 digits | 5 1/2 digits | 4, 5, 6 digits | 4, 5, 6 digits |
| Selectable Pressure Units | 12 & 1 customized units |
12 & 1 customized units |
12 & 1 customized units |
12 | 11 & 3 customized units |
11 & 5 customizable units |
11 & 5 customizable units |
| Backlight | • | • | • | • | • | • | • |
| Over Pressure Indication | • | • | • | • | • | • | • |
| IP67 | • | • | • | • | • | • | • |
| Intrinsically Safe | ADT681AEx | ADT680AEx | ADT680PEx | • | ADT685Ex | ||
| Communication | BLE, USB, RS232 | BLE, RS232 | BLE, RS232 | BLE | BLE, USB, RS232, RS485(optional) |
BLE, USB, RS232, RS485, WIFI(optional) |
BLE, USB, RS232, RS485, WIFI(optional) |
| Data Logging | • | • | • | • | • | • | |
| Min/Max | • | • | • | • | • | • | • |
| Built-in Leak Test | • | • | • | • | |||
| HART | • | ||||||
| Measure mA and V | • | ||||||
| 24V Loop Power | • | ||||||
| Switch Test | • | ||||||
| NIST-Traceable Certificate of Calibration | • | • | • | • | • | • | • |
| Power |
3 AA Alkaline batteries (power supply through USB is optional, adapter not for Ex) |
3 AA Alkaline batteries (External power supply through RS232 cable, adapter not for Ex) |
3 AA Alkaline batteries (External power supply through RS232 cable, adapter not for Ex) |
3 AA batteries | 3 AA batteries & 120/220V adapter is optional(adapter not for Ex) |
Rechargeable battery (120/220V adapter is optional) |
Rechargeable battery (120/220V adapter is optional) |
