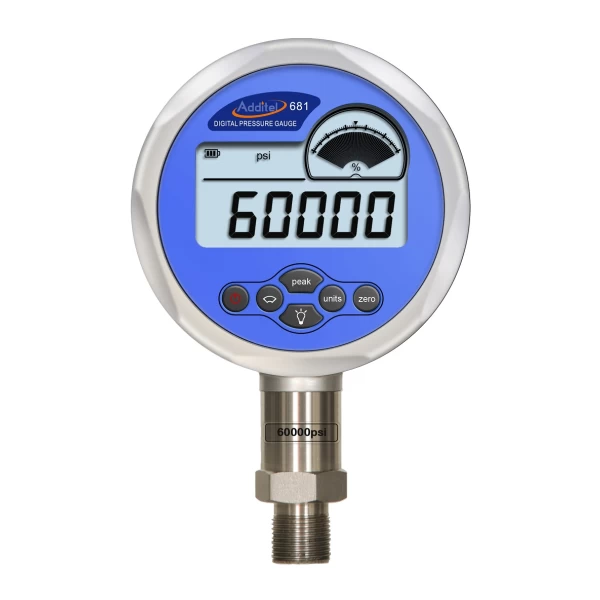

ADT681-BP-DL Digital Pressure Gauge – Barometric Pressure Data Logging

ADT681-BP-DL Digital Pressure Gauge – Barometric Pressure Data Logging

Stay ahead of the curve with our compact digital pressure gauge, featuring data logging capabilities for precise monitoring wherever your adventures take you!



Add to Quote

The Additel ADT681-DL datalogging digital barometric pressure gauges, provide an accurate, reliable and economical solution for a wide range of pressure applications. With accuracy of 40 Pascals across the measuring range of 60 to 110 kPa they are ideal for many barometric pressure measurement application.

The ADT681-DL incorporates on-board datalogging and can be used with the free Additel Land software for setting up and retrieving results from the gauge or be used with optional Log II software for real time logging requirements.

The ADT681-DL digital pressure gauge is supplied with ISO17025 accredited calibration certificate. Zedflo is a NATA accredited facility and can provide accredited calibration for these products.

The ADT681-DL has options for measuring gauge, compound, differential, absolute and barometric pressure.

View Non Data Logging Versions

View IECEx Intrinsically Safe Versions

View IECEx Intrinsically Safe Data Logging Versions

View Panel Mount Versions

View Panel Mount Data Logging Versions

  • Data storage of 21,843 records (each record includes date, time, pressure and ambient temperature)
  • Accuracy of 40 Pa across the measuring range
  • Pressure measuring range of 60-110 kPa
  • Selectable engineering units
  • Large back-lit easy to read display
  • % pressure indication with fan shaped graph scale for visual reference
  • Display flash warning when pressure over 120% of FS
  • All ADT681 gauges can perform real time logging with optional Log II software
  • IECEx certified model available
  • ISO 17025 accredited calibration certificate included
  • Precision pressure measurement
  • Field gauge and switch calibration
  • Pressure safety valve (PSV) testing
  • Pressure regulator testing
  • Hydrotesting
  • Gas pressure testing
  • Pressure data logging
