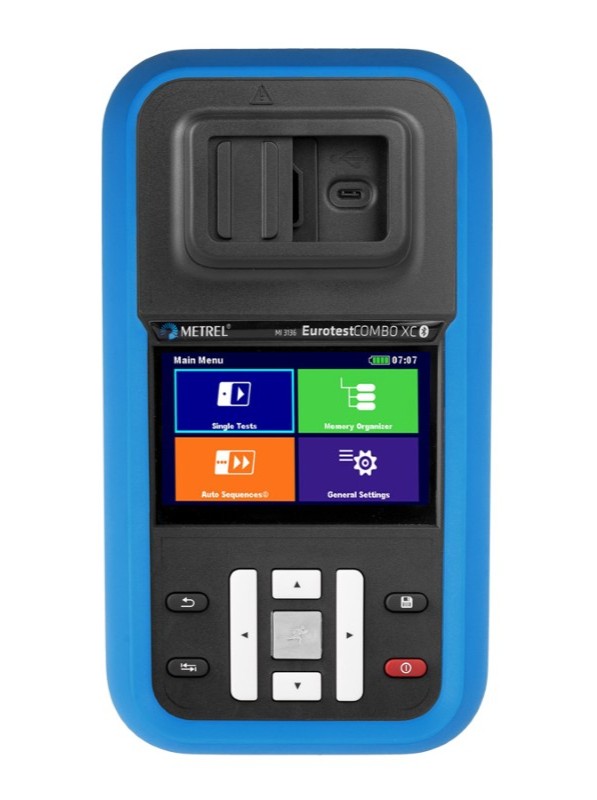

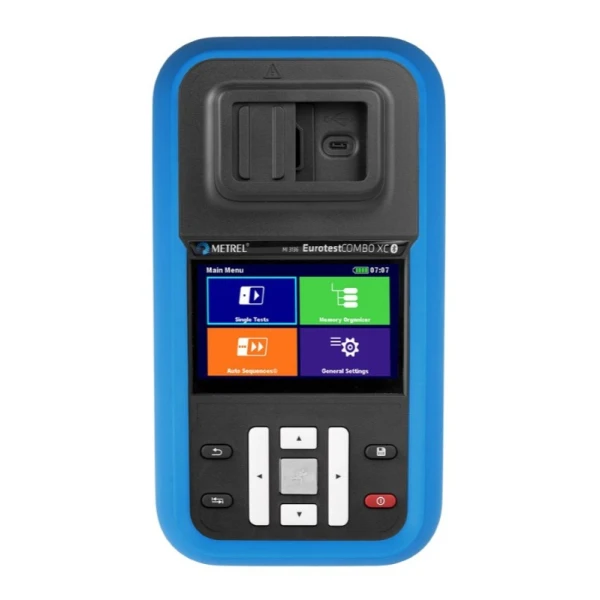

MI 3136 InstalTest COMBO-XC

Name: MI 3136 InstalTest COMBO-XC | Zedflo Australia
SKU: MI 3136
Price: 1999.00 AUD
Availability: InStock

Low‑voltage electrical safety is one of the most important considerations when protecting domestic and office users. For anyone committed to ensuring reliable, compliant, and user‑friendly safety testing, the MI 3136 InstalTest COMBO-XC is an exceptional choice. Its compact, portable design makes it suitable for a wide range of applications. The instrument delivers fast, accurate results while helping technicians maintain the highest electrical safety standards.

SKU: MI 3136

$1,999.00 ex. GST

Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

KEY FEATURES

5,2 Ah Li-ion battery with built-in charger;
Universal USB Type-C connector for fast charging and (15 V, 3 A, 45 W) and communication with PCs;

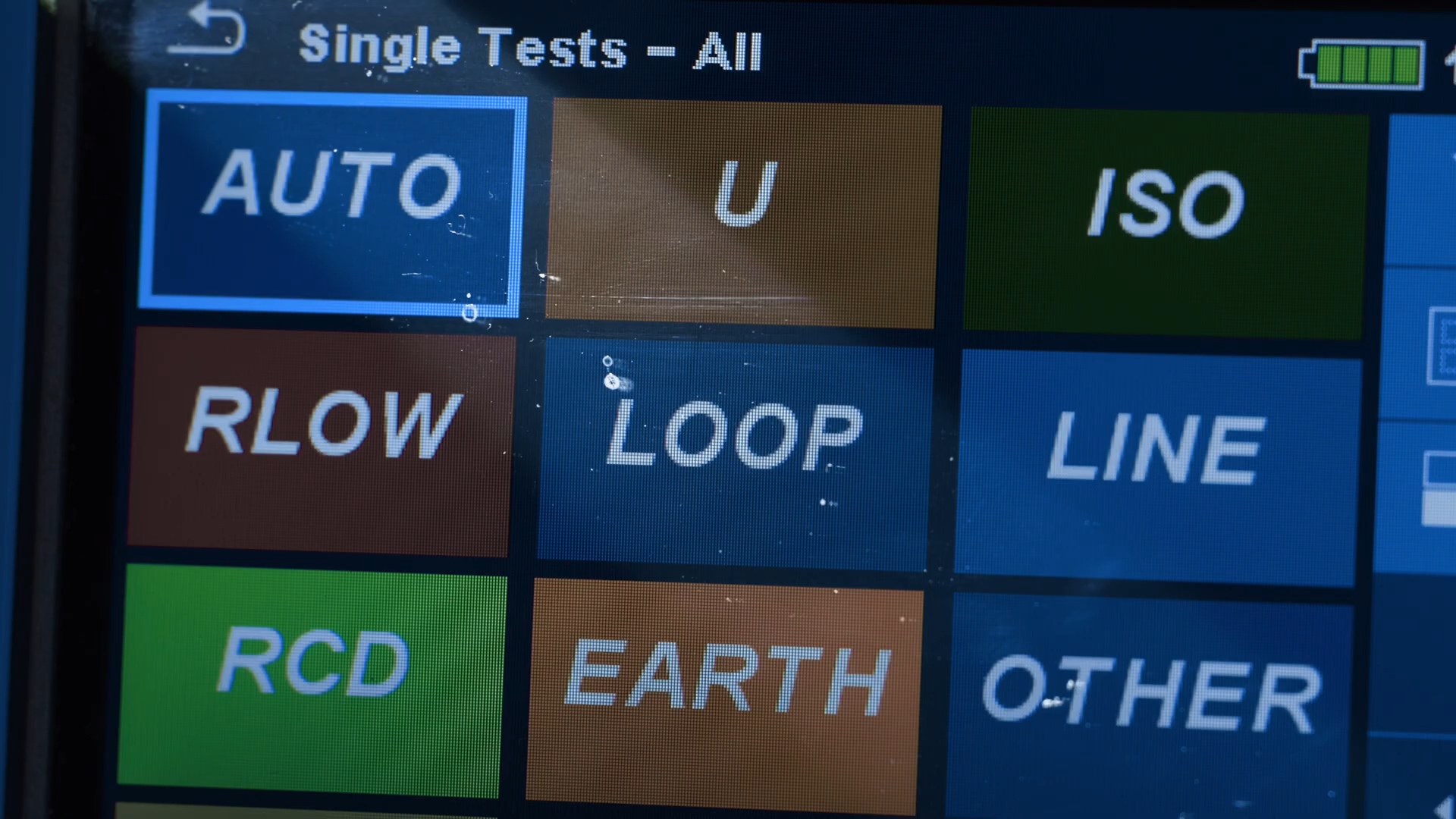

Fast manipulation via 4.3” TFT high-resolution colour touchscreen for test preparation and data storage;
Separate RCD type and current shape in RCD measurements;
Automated RCD testing procedure (RCD AUTO);
Predefined automatic tests:
Auto TT;
Auto TT RCD;
Auto TN;
Auto TN RCD.
Predefined AUTO SEQUENCEs;
Built-in help screens for referencing on site;
Built-in fuse tables for automatic evaluation of the line / loop impedance result;
Monitoring of all 3 voltages in real-time;
Automatic polarity reversal on continuity test;
Measurement filtering according to the selected area group;
Wi-Fi and Bluetooth® connectivity for fast communication with Metrel Cloud for measurement planning, data management and reporting.*
Metrel Cloud Storage compatible.
Metrel Cloud App compatible.
PC SW Metrel ES Manager: Enables creation of test structures, professional test reports and data transfer for archiving.*

^* Available with MESM PRO and Metrel Cloud licences.

Skip to PDF content

Used For

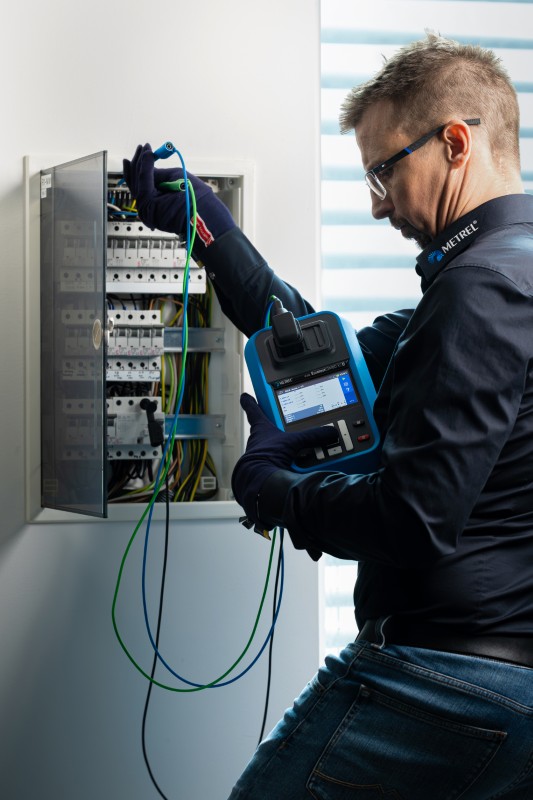

Initial and periodic testing and inspections of domestic and small-office low-voltage installations
Testing of TT and TN systems
Fire safety and hazards testing
Installation troubleshooting
Electric vehicle supply equipment (EVSE) testing
Maintenance, such as after repair
Low-voltage earthing and lightning protection

Used By

Electrical installation companies
Electrical inspectors
Electricians
Technical aid organizations, including fire brigades, ministry of defence and healthcare
Facility maintenance personnel, including hotels and restaurants
Construction businesses
Office-based businesses
Public sector
Rental companies
Students
