The Additel 100-FLT pressure filters are designed for ease of use and low maintenance. The 100-FLT-600 is a pneumatic filter and liquid trap covering from -100 to 4000 kPa (-1 to 40 bar). This filter is ideal for your pneumatic measurement or calibration applications and contains an easy to use drain valve for removing dirt, moisture or contaminates. For hydraulic applications, the Additel 100-FLT-10K, hydraulic filter can be used up to 10K psi (700 bar). With a filter resolution of 0.07 mm contaminants or debris are captured in the filter which is easy to clean and maintain. Each filter is configured with a variety of pressure connections designed to meet the most common applications.
ADT 100 Series Filters
$0.00
Additel 100 Series Filters – Pneumatic & Hydraulic Protection
The Additel 100 Series Filters are precision-engineered accessories designed to protect pressure calibration systems from contamination. Built with 304 stainless steel, these robust filters extend the life of your calibration equipment by preventing particles and impurities from entering sensitive components during both pneumatic and hydraulic applications
.
Available in two models – the ADT100-FLT-600 for pneumatic systems up to 600 psi (40 bar) and the ADT100-FLT-10K for hydraulic systems up to 10,000 psi (700 bar) – these filters ensure clean, reliable, and safe operation under demanding conditions
.
Specifications

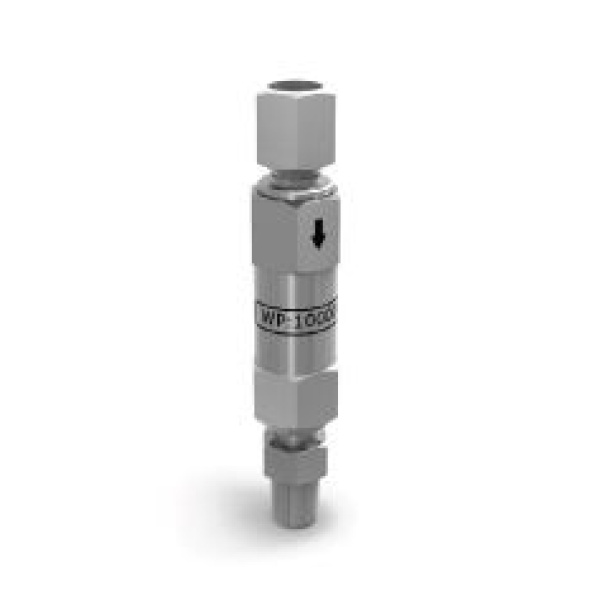

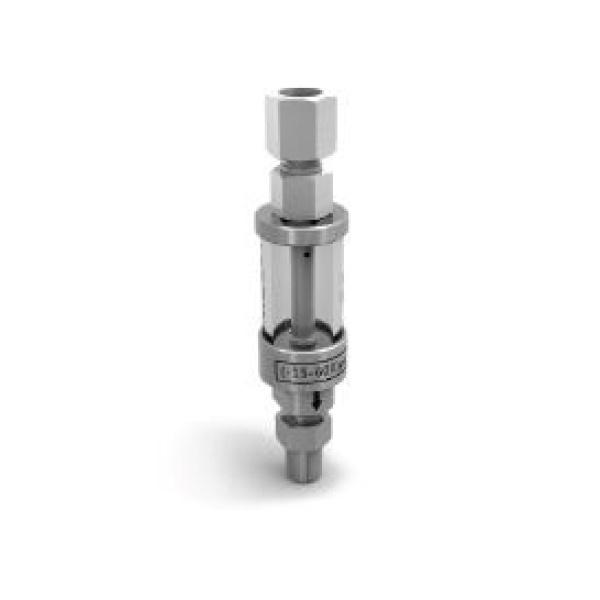

ADT100-FLT-600 (Pneumatic Filter)
Pressure range: -15 to 600 psi (-1.0 to 40 bar)
Filtering resolution: 0.04 mm
Safety pressure: < 720 psi (50 bar) Operation temperature: -10°C to 50°C Storage temperature: -20°C to 70°C Size: 1.18 in dia × 5 in (30 mm dia × 127 mm) – varies with adapters Material: 304 stainless steel Ports available: 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, M20×1.5 male & female ADT100_FLT_DS_PDF ADT100-FLT-10K (Hydraulic Filter) Pressure range: -15 to 10,000 psi (-1.0 to 700 bar) Filtering resolution: 0.07 mm Safety pressure: < 12,000 psi (827 bar) Operation temperature: -10°C to 50°C Storage temperature: -20°C to 70°C Size: 0.87 × 0.98 × 4 in (22 × 25 × 100 mm) – varies with adapters Material: 304 stainless steel Ports included: Removable male and female adapters (NPT, BSP, M20×1.5 options) Key Benefits
Protects calibration systems from contamination
Suitable for both pneumatic and hydraulic applications
High safety pressure ratings for reliable performance
Multiple port configurations for easy integration
Durable stainless steel construction for long service life
