Quick Connect Hoses and Fittings

SKU: ZFL-PRO-265

$0.00

Add to Quote
Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

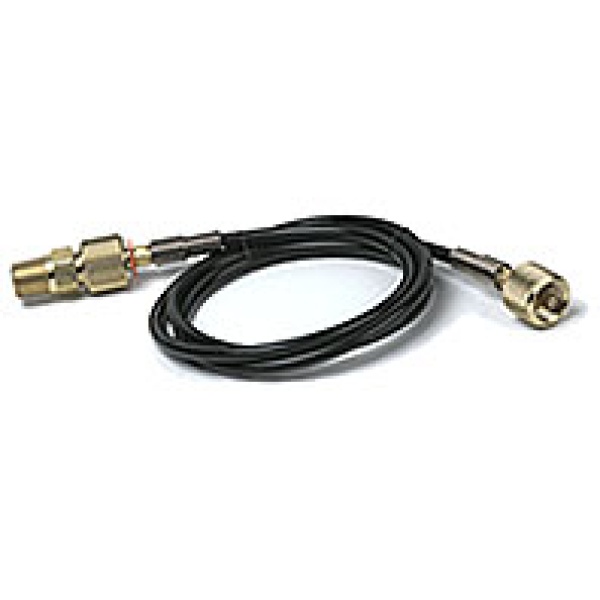

A range of calibration hoses with quick connect fittings to suit a variety or process connections including NPT threads and directly into compression fittings.

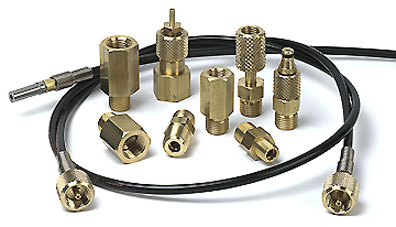

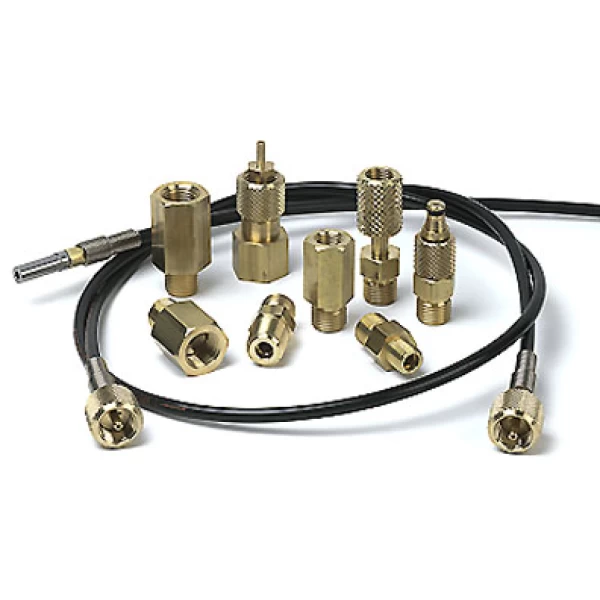

The Ralston Quick-test Hose Adaptors provide a fast, pressure-tight connection between Ralston Quick-test™ hoses and pumps or any Ralston Quick-test™ fitting. Designed for convenience and reliability, these adaptors use a finger-tight connection, eliminating the need for Teflon tape. For best results, a small amount of oil or grease can be applied to the adapter end before attaching to the hose to ensure a secure and leak-free fit.





  • Small-bore hose design minimises temperature effects on volume in closed-loop systems, delivering more stable and accurate calibrations

  • Available in standard 3 ft and 6 ft lengths, with custom lengths available to suit your application

  • High pressure rating up to 40 MPa (6,000 PSI) for reliable performance in demanding environments

  • Quick-connect, finger-tight fittings ensure zero leakage and fast, tool-free setup

MNPT Adaptors

  • 1/8″ MNPT – QTHA-1MBO

  • 1/4″ MNPT – QTHA-2MBO

  • 3/8″ MNPT – QTHA-3MBO

  • 1/2″ MNPT – QTHA-4MBO

FNPT Adaptors

  • 1/8″ FNPT – QTHA-1FBO

  • 1/4″ FNPT – QTHA-2FBO

  • 3/8″ FNPT – QTHA-3FBO

  • 1/2″ FNPT – QTHA-4FBO

Tube Fittings (Swagelok®, Parker™, Hoke™ compatible)

  • 1/4″ Tube Fitting – QTHA-2TBO

  • 3/8″ Tube Fitting – QTHA-3TBO

  • 1/2″ Tube Fitting – QTHA-4TBO
