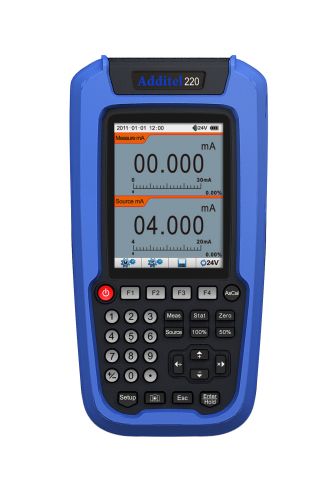

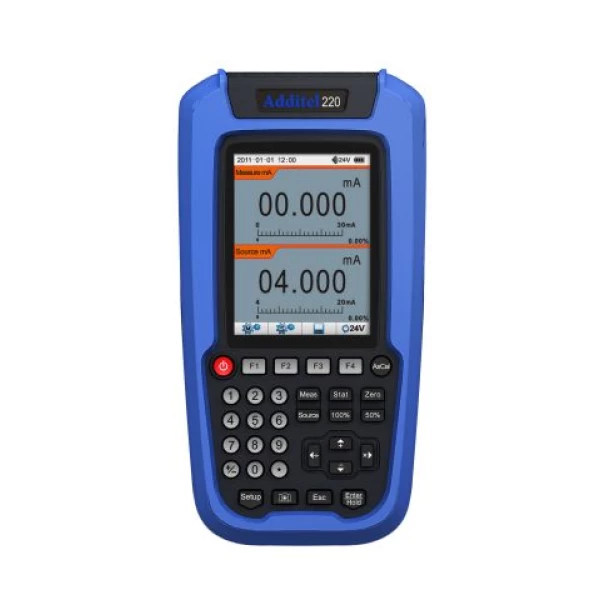

ADT 220 Precision Process Signal Calibrator

SKU: ZFL-PRO-152

$0.00

Add to Quote
Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

The Additel 220 Multifunction Loop Calibrator is a rugged, handheld tool designed for measuring, sourcing, and simulating loop current, voltage, and millivolt signals in the field. With its smartphone-like interface, compact size, and advanced functionality, the ADT220 is ideal for calibration, maintenance, and troubleshooting of loop devices, transmitters, indicators, and switches.

This versatile calibrator features 24V loop power with simultaneous current measurement, switch test capability, loop continuity testing, and dual reading display. It also includes powerful data handling features like on-demand logging, snapshot capture, and re-scaling functions to convert signals into real process values.

  • Easy to use smartphone type menu and interface
  • Sources and reads voltage and current
  • Reads frequency
  • 24V loop power supply
  • Accuracy ± 0.01% of reading
  • Displays max, min, peak-to-peak, average and percentage simultaneously
  • Data logging stores up to 20,000 records
  • Rugged design for use in harsh environments
