ADT 912 Low Pressure Volume Controller

SKU: ZFL-PRO-174

$0.00

Add to Quote
Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

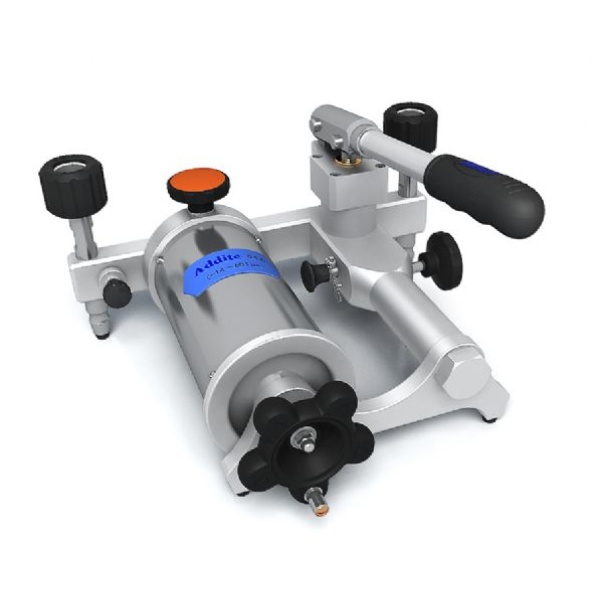

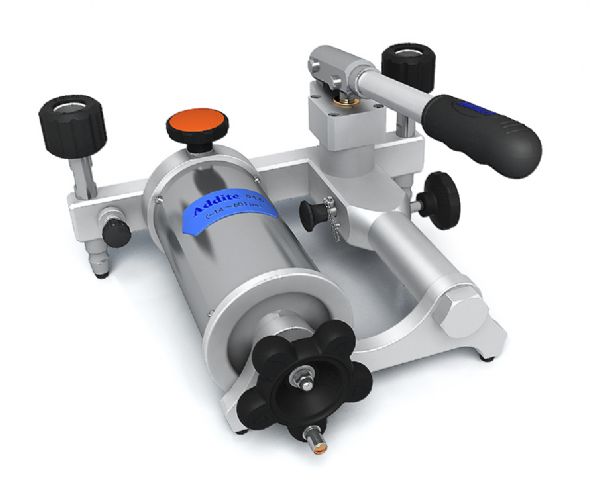

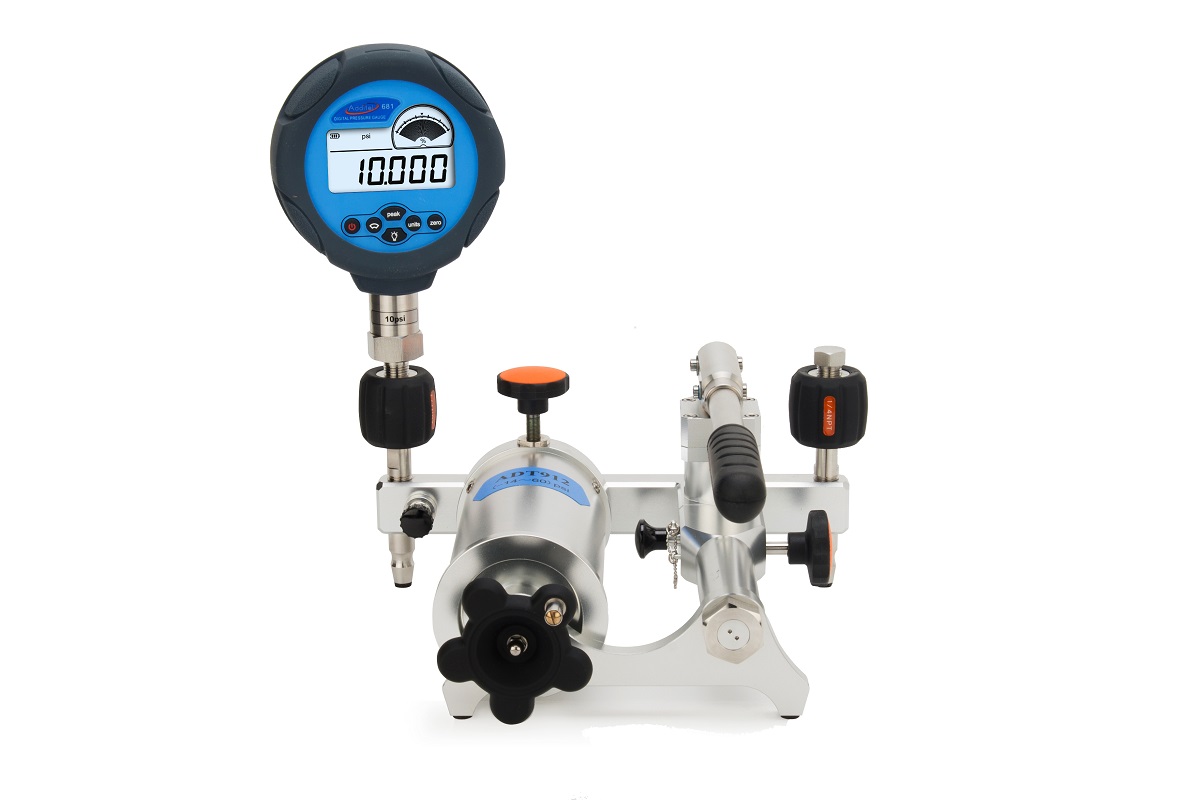

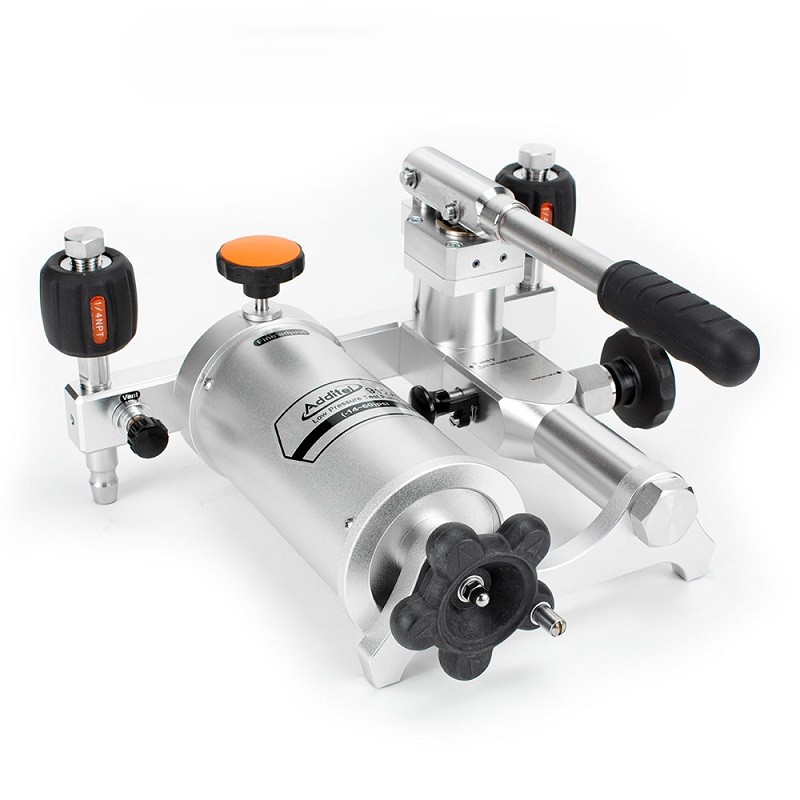

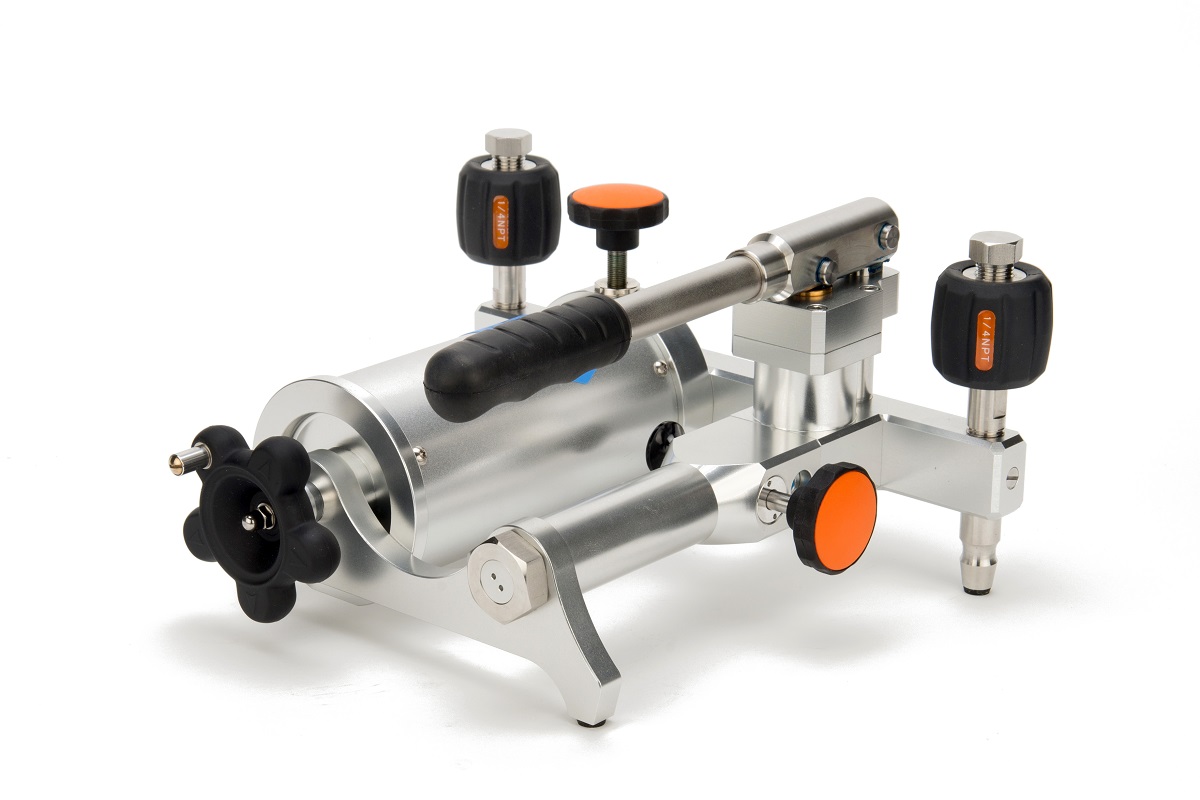

The Additel 912 Low Pressure Test Pump is a durable and portable hand pump designed for precise pressure and vacuum generation during calibration. With a range from 95% vacuum to 60 psi (4 bar), it is ideal for calibrating low-pressure gauges, transmitters, sensors, and switches in both field and laboratory environments.

Engineered with user convenience in mind, the ADT912 features a fine adjust handle that provides resolution as accurate as 0.1 Pa (0.001 mbar), ensuring exceptional control and repeatability. Its pressure/vacuum selector switch allows quick mode changes, while the isolation valve maintains stable calibration conditions. Safety is built in with a 90 psi (6 bar) pressure limit and a security bolt pin for added protection.

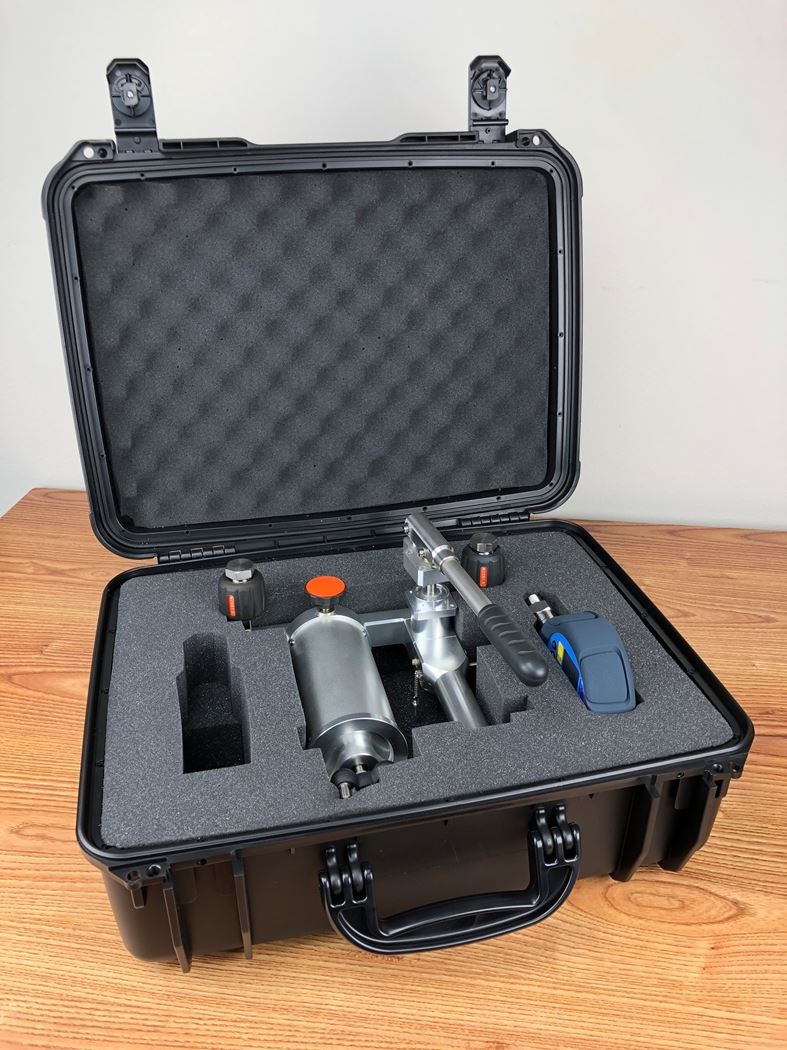

Weighing just 2.8 kg (6.2 lb) with a compact footprint, the ADT912 is easy to transport, set up, and operate. The pump uses air as the pressure medium and connects via quick connectors, reducing setup time and minimising leaks.

  • -95 kPa to 400 kPa
  • 0.01 Pa resolution
  • Portable
  • Specially designed bellows minimize leakage
  • A specially designed shut-off valve stabilizes the pressure during calibration
  • Easy to use
  • A built-in gas-liquid isolator protects the pump from moisture and dirt
  • Hand-tight connectors allows easy connecting and disconnecting to the pump, without the use of thread tape or wrenches
