ADT992 Pneumatic Hand Pump

ADT992 Pneumatic Hand Pump

Additel’s legendary calibration pumps – now in a compact, portable form. The new ADT992 series delivers the stability and quality you expect, with the convenience of a lightweight design ideal for both field work and lab use. A perfect bridge between low-end scissor pumps and premium workshop models.


Typically 1/4″ NPT versions In stock subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks for all models.

SKU: N/A

$2,184.00$2,539.00 ex. GST

Add to Quote

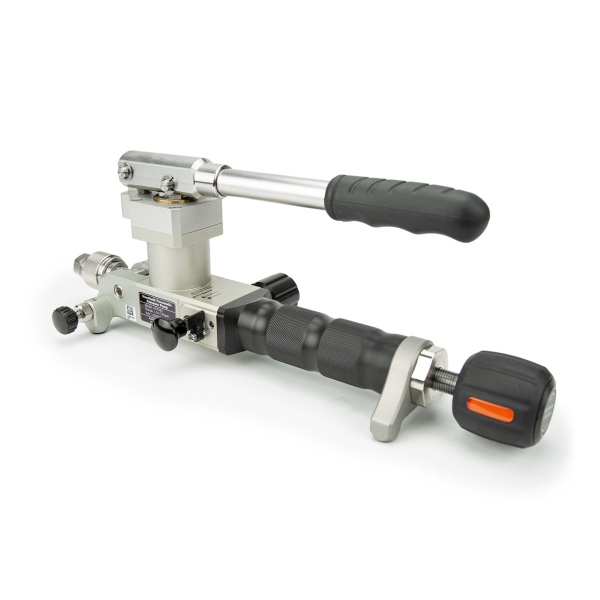

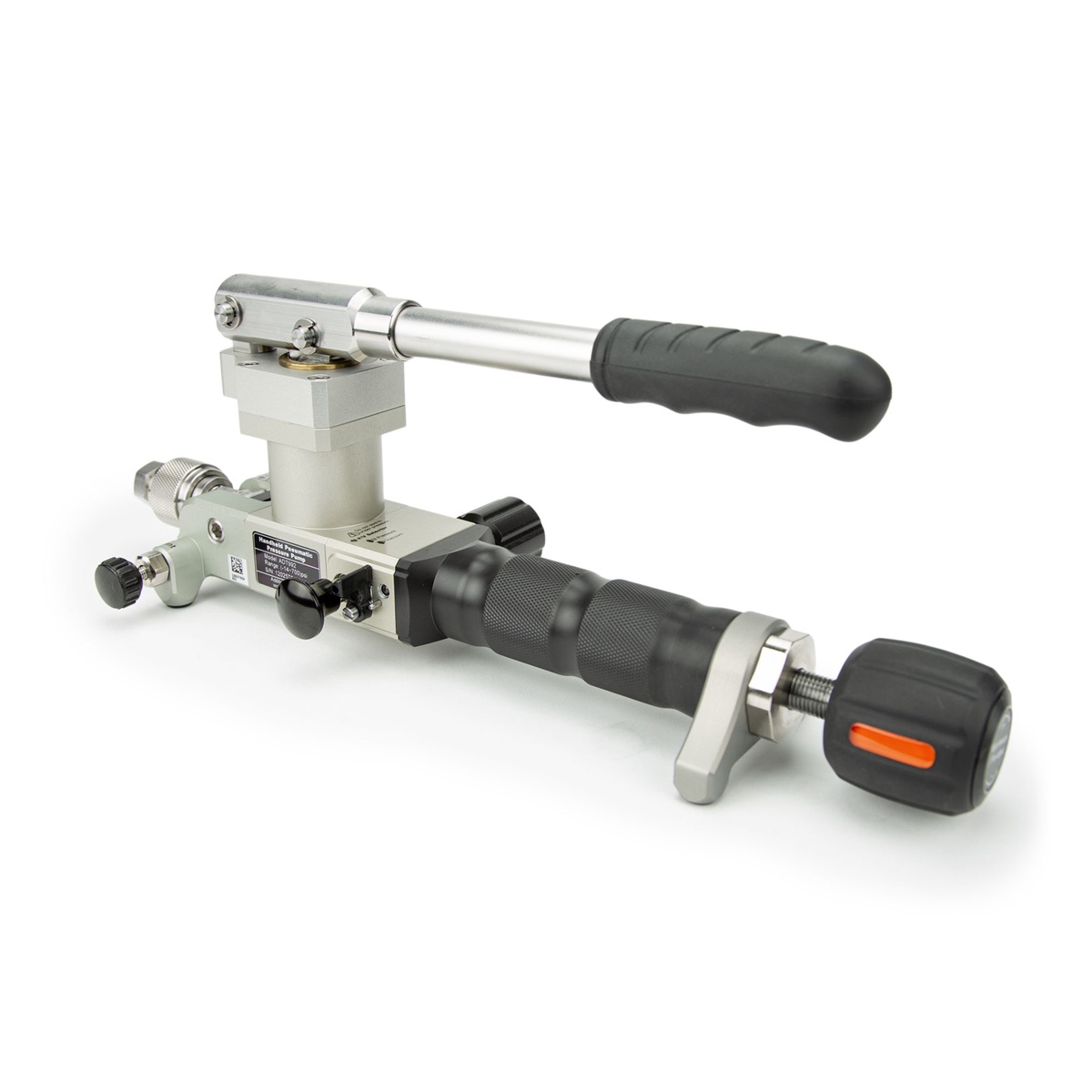

The ADT992 Handheld Pneumatic Pressure Pumps generates vacuum to 5,000 kPa using a dual-stage pre-pressure piston for efficiency and ease of use. Their lever-type pressurization ensures quick stabilization, while a fine adjust screw enables precise pressure adjustments. Due to their adjustable reference port and dual rubber grips, the ADT992 allows for multiple operating positions to be utilized, making it a modern upgrade to traditional handheld pumps.

  • Portable and only 1.5 kgs
  • Durable with Minimal Maintenance
  • Custom machined to handle rugged use while remaining leak-free
  • Easy-to-use
  • Dual action piston allows for higher pressure with less effort

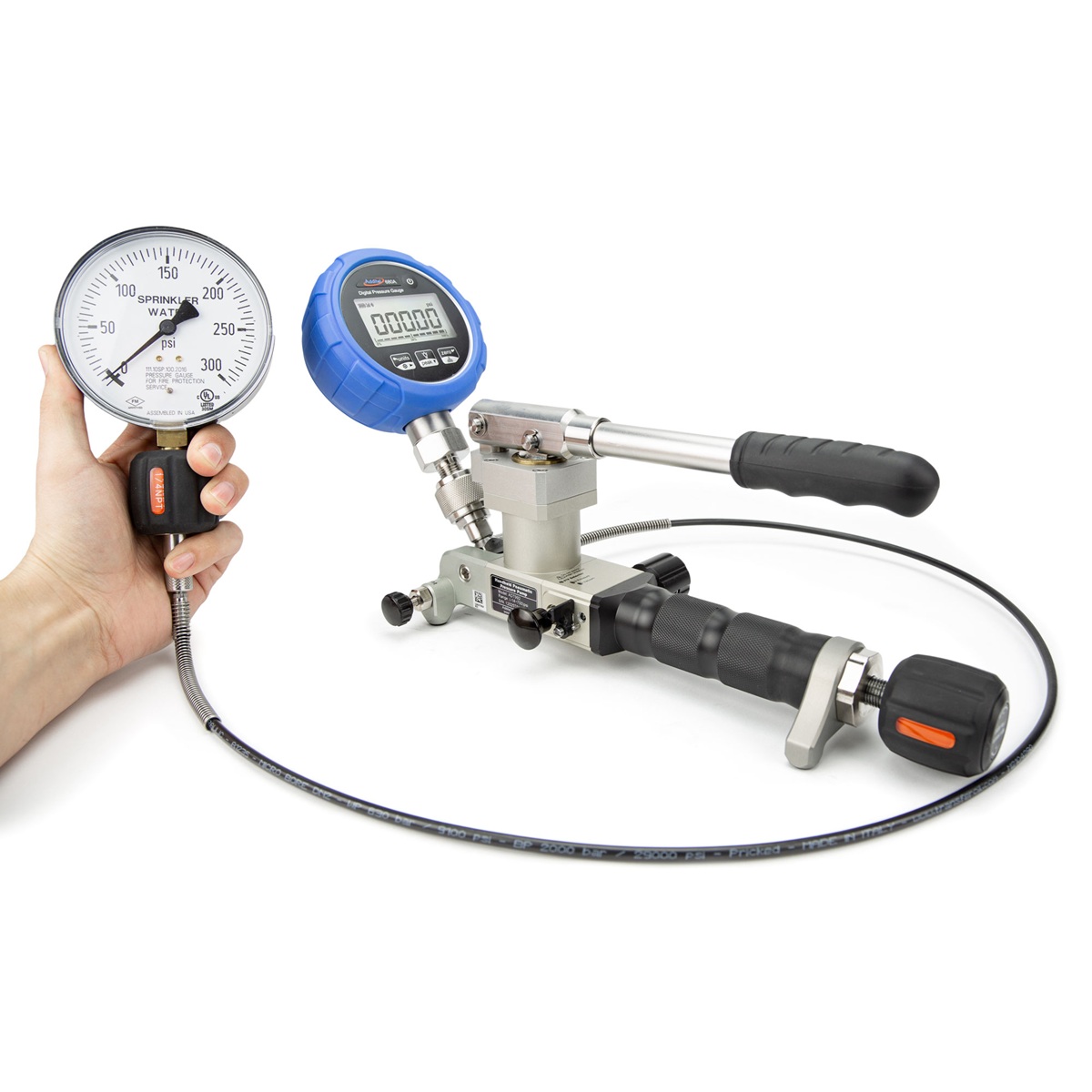

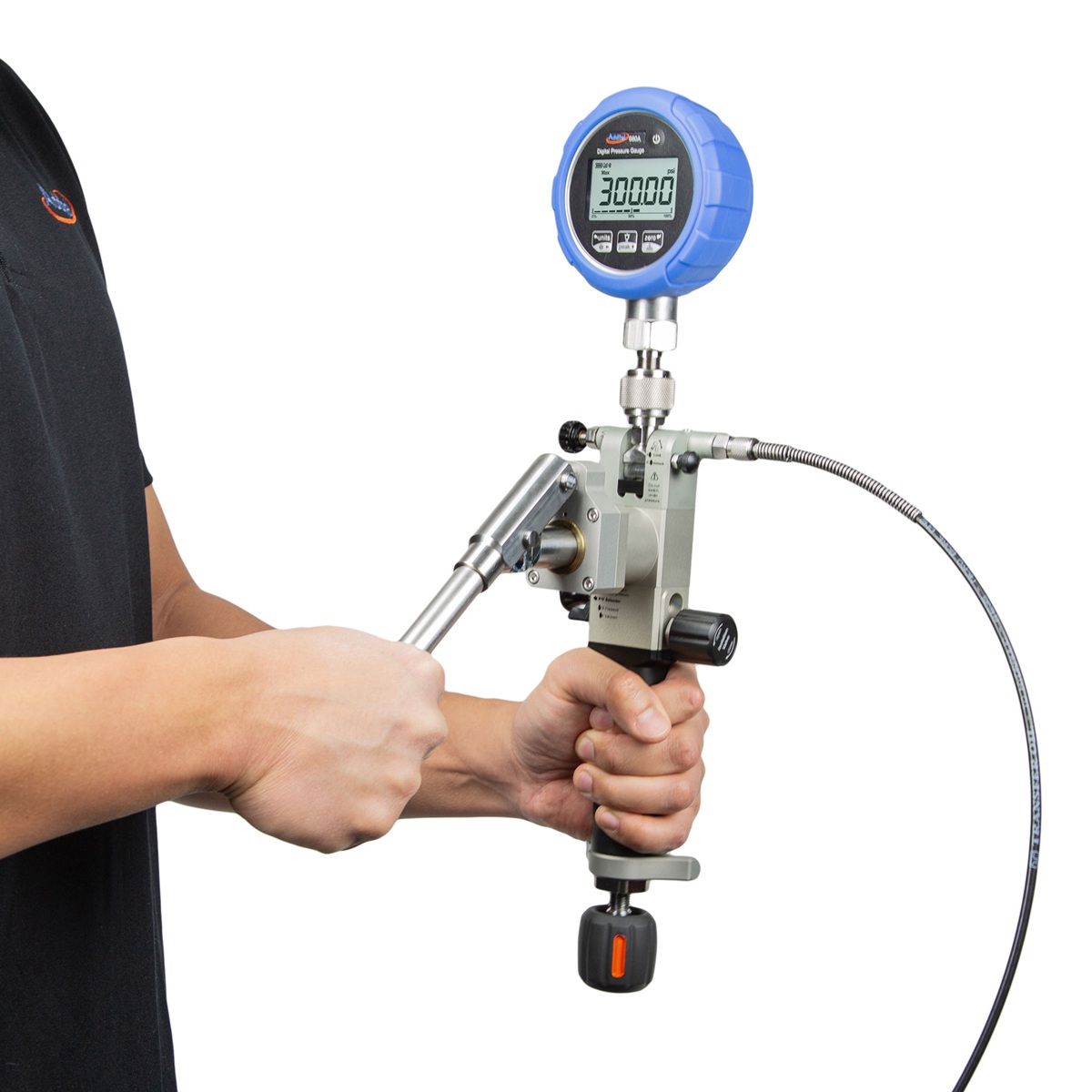

  • Multiple Operating Positions, use either horizontally or vertically with the adjustable reference port and dual rubber grips

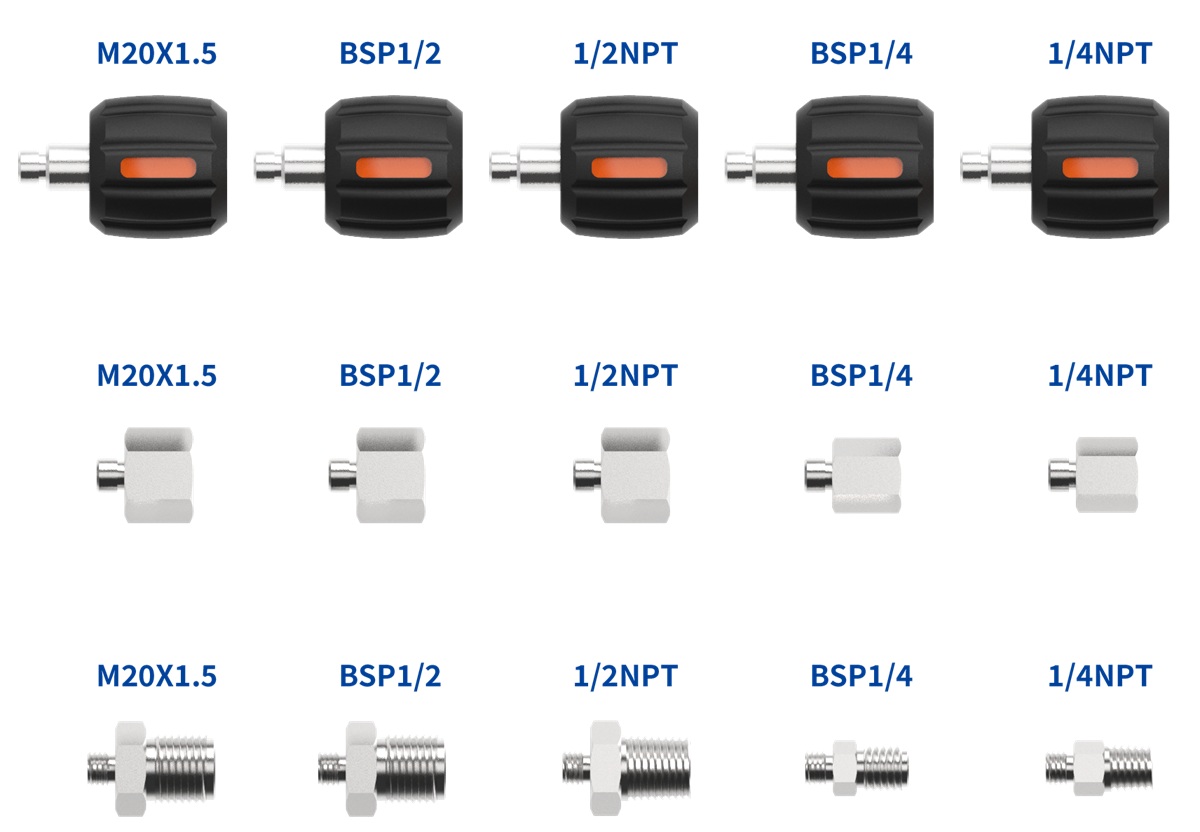

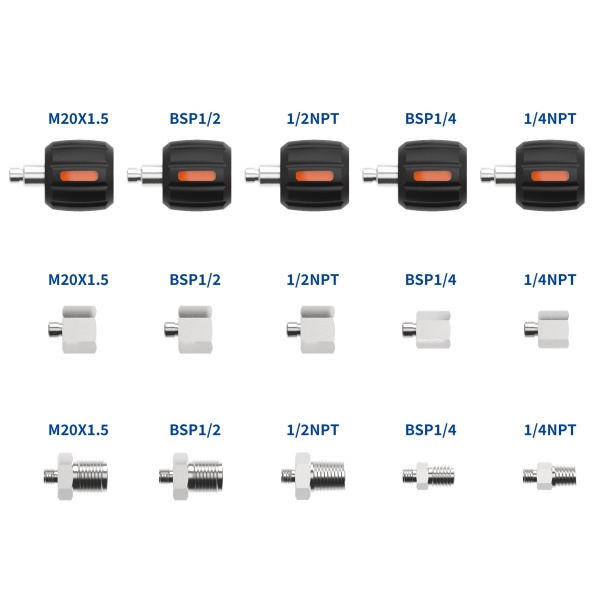

  • Hand-tight Quick Connectors
  • Included hose features hand tight quick connectors for easy swapping of DUTs
  • Generated Pressure Range:-95 to 5,000 kPa
  • Adjustment Resolution: 10 Pa (0.1 mbar).
  • Minimum Pre-pressure: 4,000 kPa
  • Boost pressure of lever stroke: 200 kPa / stroke
  • Maximum load volume: 35 ml
  • Maximum volume of fine adjustment: 7.2 ml
  • Quick removal port filters
  • Materials: Aluminium body, SS ram and adaptors
  • Seals: Buna-N, PTFE, Copper Alloy
  • Dimensions: 122 mm (H) x  320 mm x 110 mm (Base)
