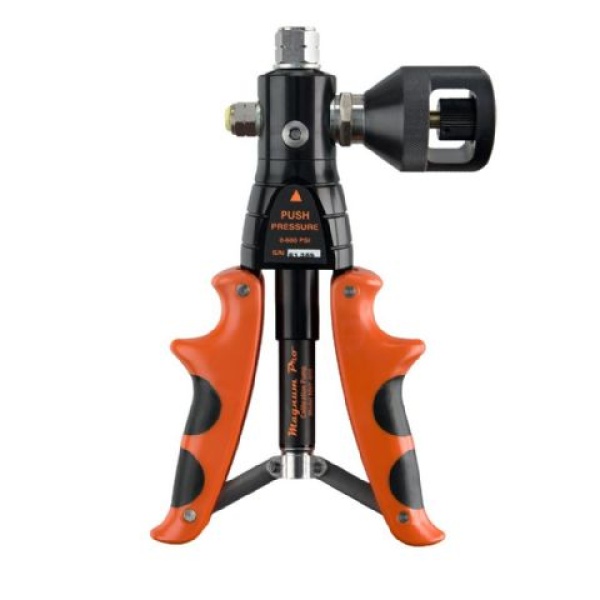

MVP-600 Pneumatic Hand Pump

MVP-600 Pneumatic Hand Pump

SKU: MVP-600 Pneumatic

$1,495.00$1,937.00 ex. GST

Add to Quote

Produces pneumatic pressure and vacuum to check calibration of gauges, switches, transmitters, and recorders. The contoured cushioned handles provide extra comfort while preventing the pump from sliding. The over-sized check valve provides smooth operation throughout the output range while the dual o-rings on all pistons ensure zero leakage. Patented Mash proof vent valve comes standard on all MVP-600s (No Needle Valve) and a non-oil based lubricant is used on all moving parts.

  • Contoured cushion handles
  • Oversized check valve for smooth controlled operation
  • Mash proof vent valve (No Needle Valve)
  • A patented non-oil based lubricant is used on all moving parts
  • Dual O-Rings on all pistons to ensure zero leakage
  • 2 year “quibble free” warranty

Vacuum 28″Hg to pressure 600 PSI / 40 BAR (combination pump)
Compatible with all gauges and calibrators
Connections (2 ports) – 1/4″ and 1/8″ NPT/BSP
Weight – 2lbs
Made in the USA


MVP-600: includes pump only

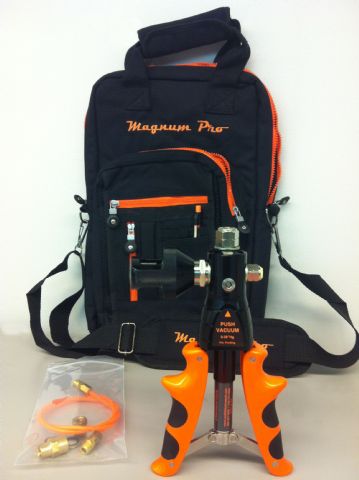

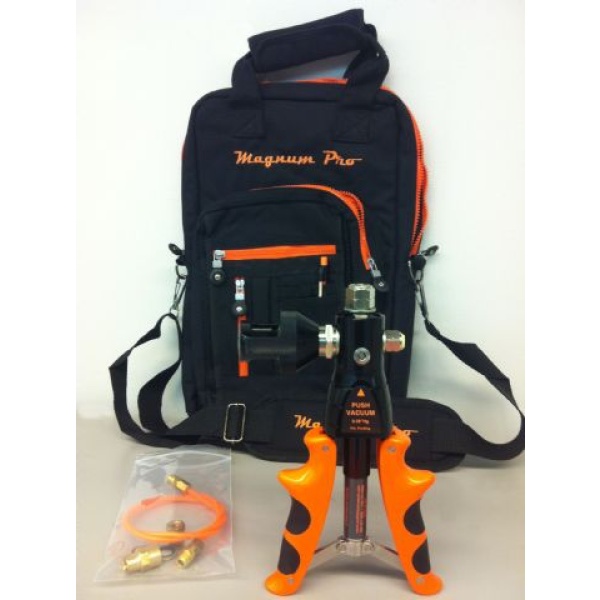

 includes Pump, a black padded canvas case embroidered with orange thread, 2ft non-stretch hose, fittings, additional rubber bonded washers and (2) adaptors.*
MVP-600KT+: includes everything in the MVP-600KT plus the COLT F-15 fitting*
MVP-600WIN: includes everything in the MVP-600KT plus Winchester Engineering Model 1 Auto Ranging Digital Gauge™ w/ N.I.S.T. certification and versatile hook.*
MVP-600WIN-FIT: includes everything in the MVP-600WIN plus FasTest universal quick connect kit and coupler for Swagelok tube fittings.*
MVP-600RK: Rebuild Kit for MVP-600 (includes: Bonded Washers, O-Rings, a Schrader Valve, a X-Ring, a Pressure Valve Spring, a Vacuum Valve Spring, a Ring Retain Clip, a Plug Shorty, Non-petroleum lubricant

Other models below are available on request, please inquire for other variants.

*Note: Kits, hoses, and fittings can be customized upon request.
