Designed for simplicity and efficiency, the ADT760S delivers automated pressure calibration in a compact, non-PC configuration, ideal for users who need reliable performance without the complexity of advanced system integration.
Contamination Prevention System (CPS) for the ADT760A/S is not included and can be added to your quote separately below. (NOT compatible with -LLP bases)

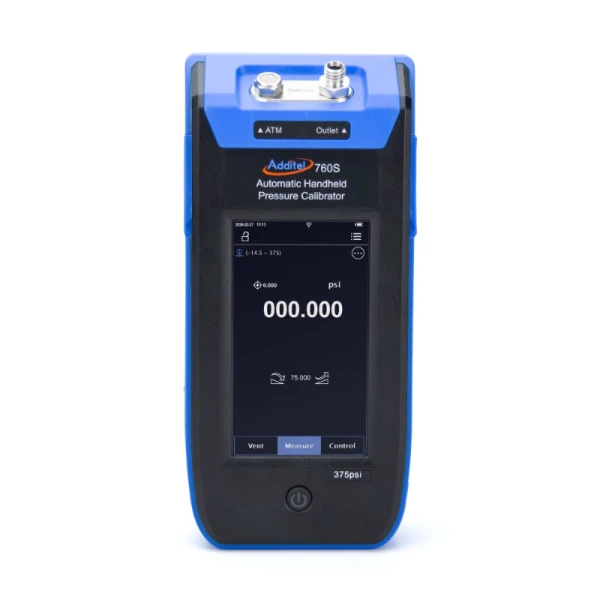

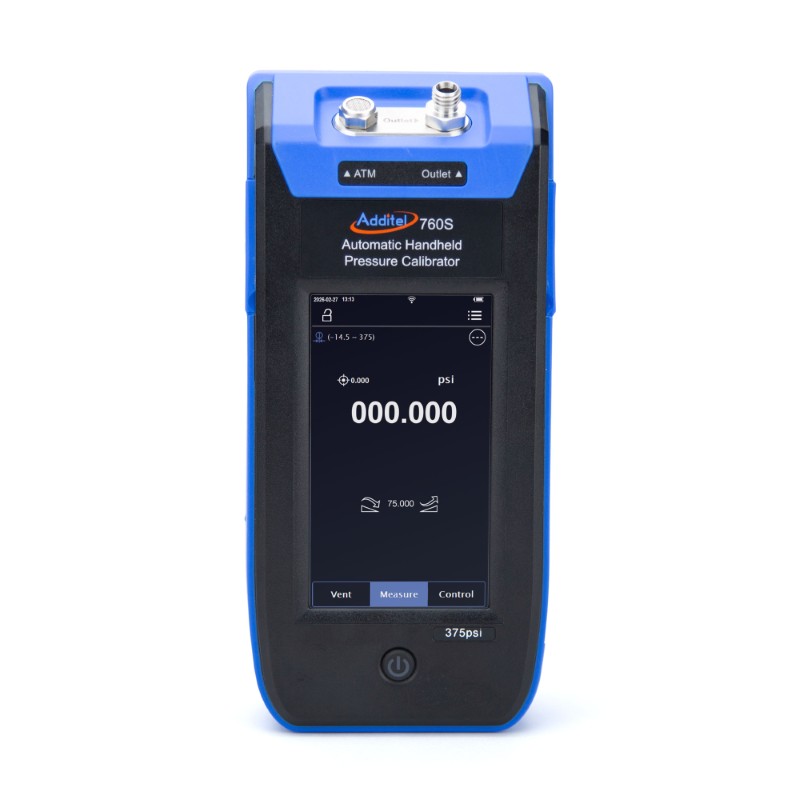

Additel’s ADT760S is a streamlined handheld pressure calibrator built for efficiency, portability and ease of use. As part of the proven 760 series platform, the ADT760S provides automated pressure generation and control in a simplified, non-PC configuration, making it ideal for field technicians and workshops seeking a practical, ready-to-use solution..
With an intuitive interface and reduced system complexity, the ADT760S allows users to perform calibration tasks quickly and confidently without the need for advanced setup or external software. Designed to help you work smarter in day-to-day applications, the ADT760S delivers dependable performance in a compact and cost-effective package.

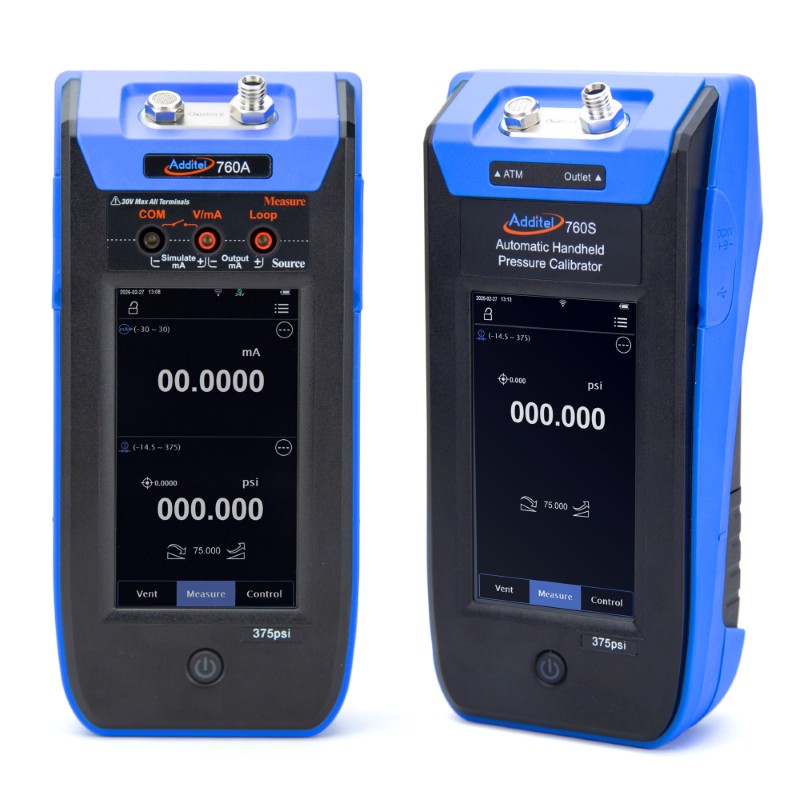

| ADT760A/760S-LLP:
The 760A/760S-LLP is designed for low pressure calibration and comes with a build-in pressure module of your choice. |
 |
| ADT760A/760S-D:
The760A/760S-D gives you differential and gauge pressure but at a higher pressure range than the 760A/760S-LLP. Covering the range of -12.5 to 35 psi (-0.86 to 2.5 bar) and with an accuracy of 0.01%FS or 0.02%FS depending on the interchangeable ADT155 module used, the 760A/760S-D is an ideal solution to cover very common gauge and differential pressure measurements. The Additel 760A/760S-D comes with an internal module of your choice. The maximum range module compatible with the 760A/760S-D is to 35 psi. Lower pressure configurations down to ±10 inH2O differential can be purchased to improve accuracy at lower pressures. |
|
| ADT760A-MA:
The 760A/760S-MA generates and controls pressure from vacuum pressures up to 375 psig (25 bar.g) with an accuracy of 0.01%FS or 0.02%FS depending on the interchangeable ADT155 module used. Equipped with a built-in barometric reference, each unit can switch between gauge and absolute pressure types. A variety of internal sensors are available which offer lower pressure ranges for improved performance. |
|
|
