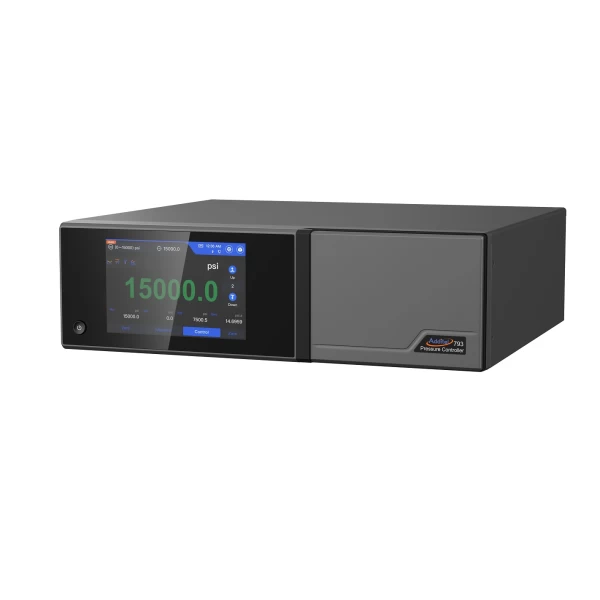

ADT793 Pressure Controller

The ADT793 pressure controller combines the latest control and measure technology, modular design and easy to use features into a single user friendly device.  The Additel 793 provides pressure control up to 100,000 kPa.


Typically special order, inquire for current price and availability

SKU: ADT793

Price range: $53,971.00 through $61,168.00

Add to Quote
Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

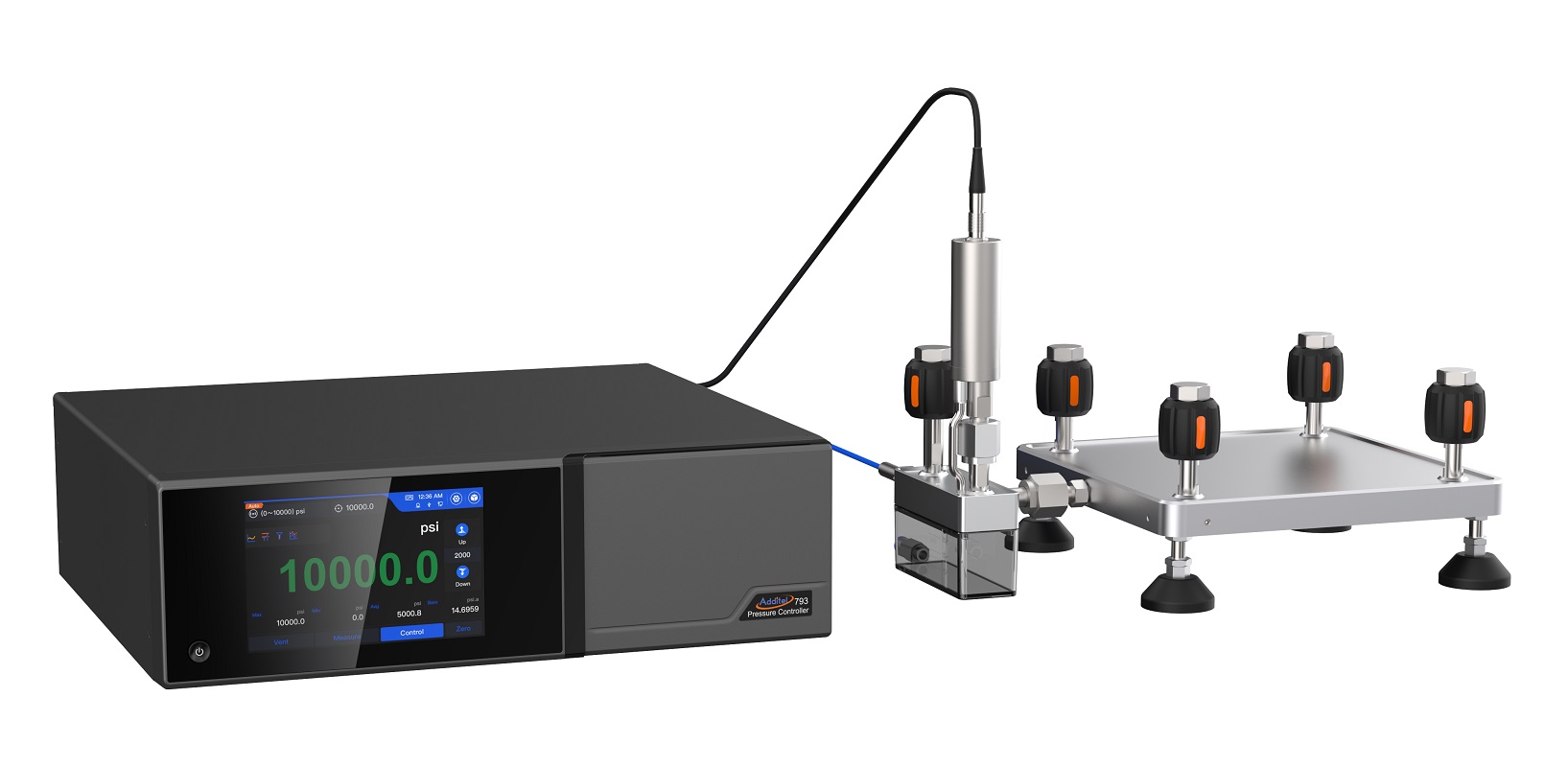

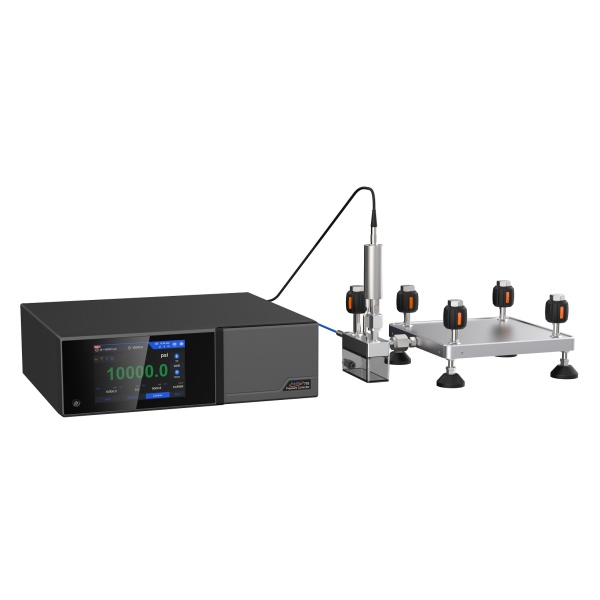

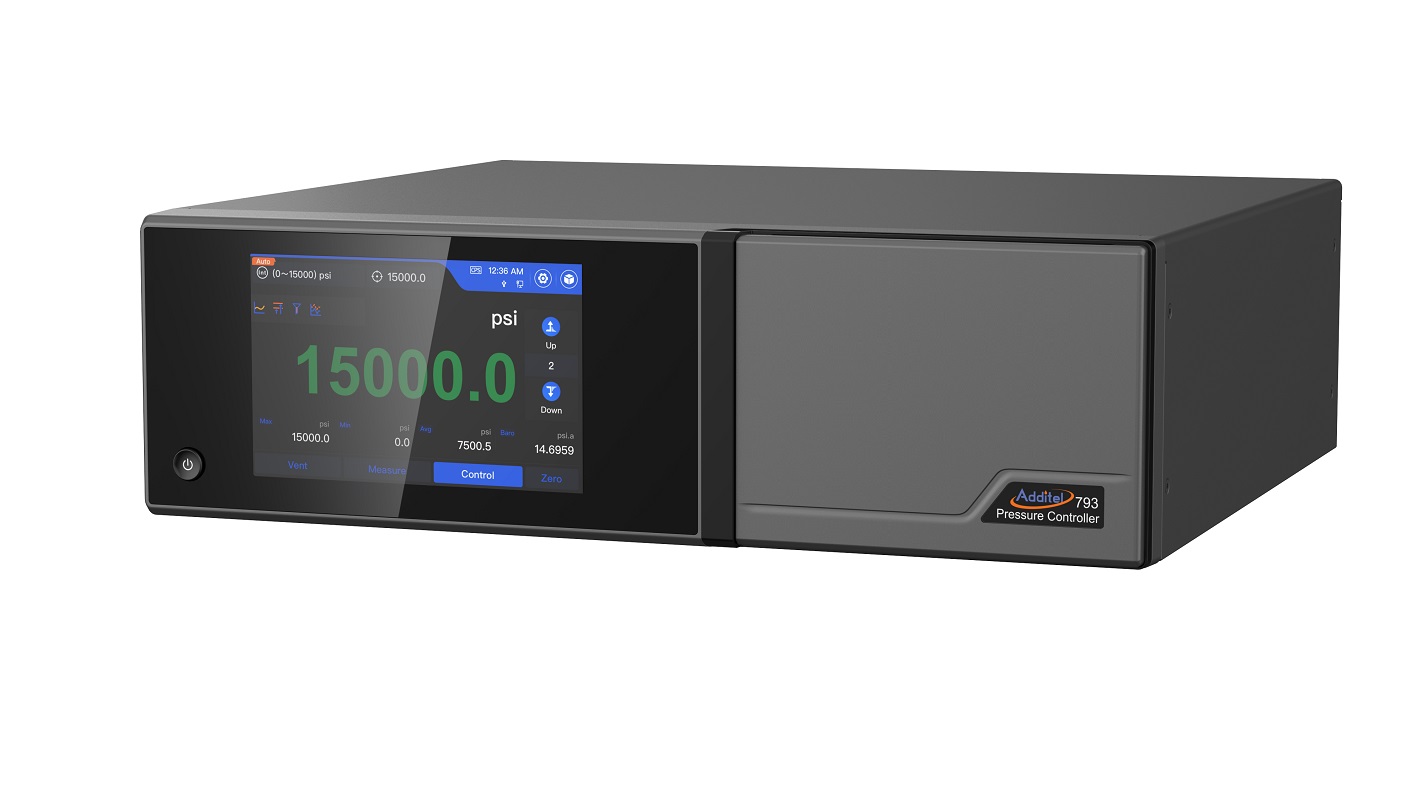

The Additel ADT793 Pressure Controller is a high-performance, modular pressure calibration system engineered for demanding laboratory and production environments. With pressure control up to 100,000 kPa (1,000 bar / 14,500 psi), the ADT793 sets a new benchmark for wide-range automated calibration and testing.

Built with Additel’s latest control and measurement technology, the ADT793 delivers outstanding accuracy, stability, and speed while maintaining a user-friendly interface. Its modular design accepts one ADT151 dual-range pressure module along with a barometric reference module, allowing fast and flexible coverage across a broad pressure span.

For users who need automated calibration, production testing, or high-pressure control, the ADT793 offers the reliability and precision to handle even the most demanding workloads. Combined with advanced contamination prevention technology (CPS) and fast module swap-outs, it’s a long-lasting, adaptable solution for modern calibration labs.

  • Maximum Pressure Control Range to 100,000 kPa

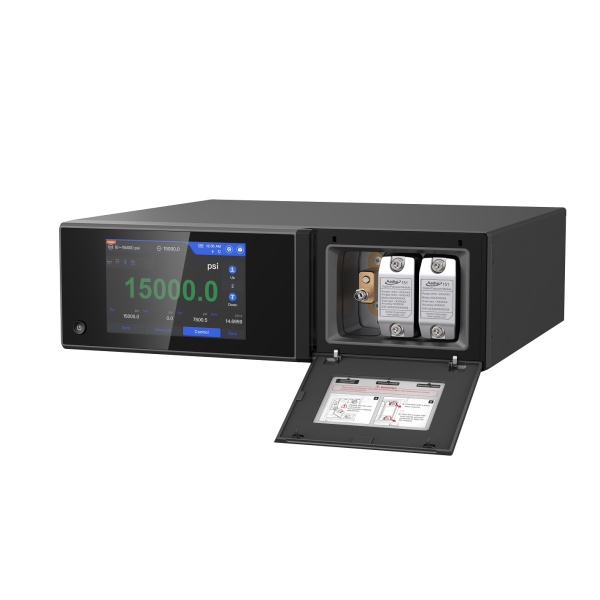

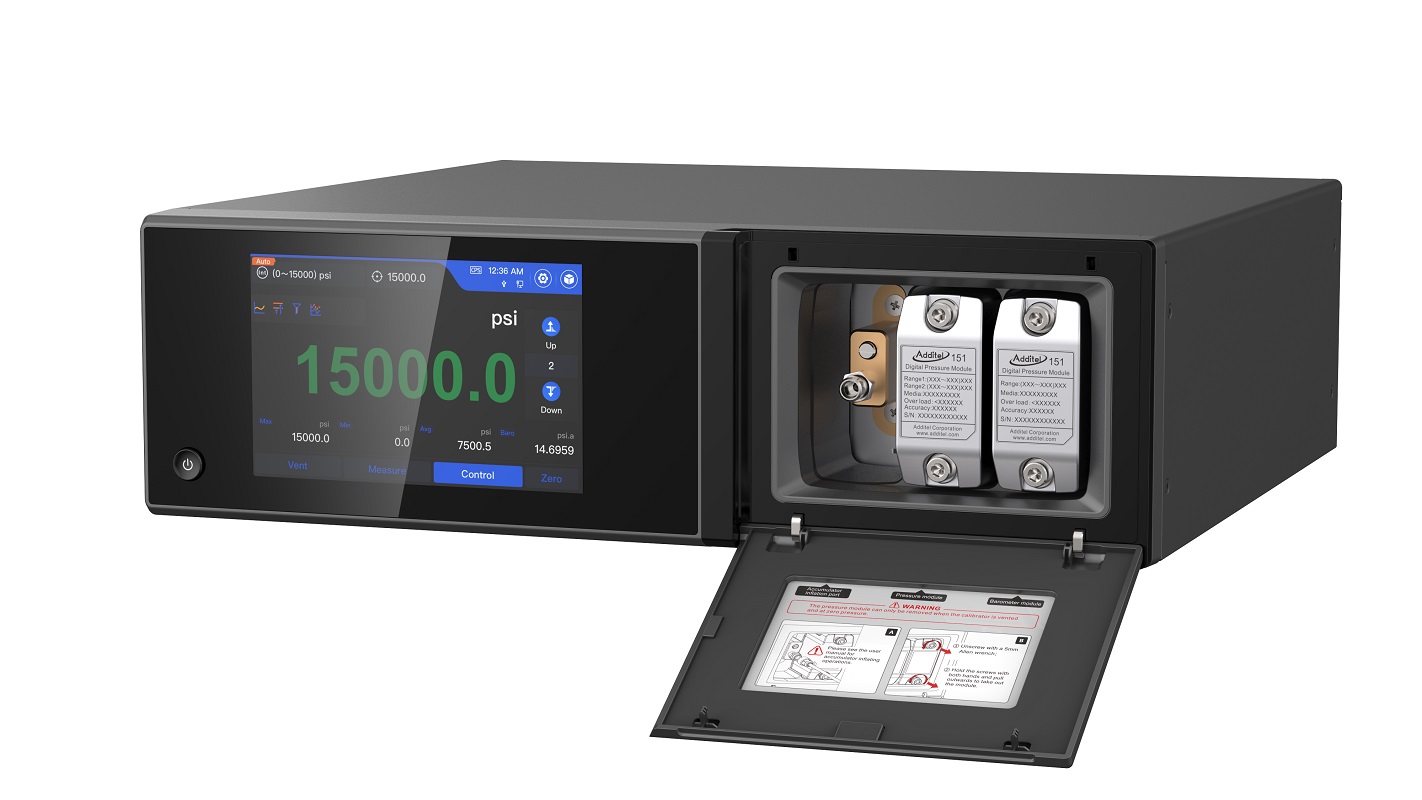

  • Interchangeable Pressure Modules
  • Oil and water versions available
  • Accuracy of 0.02% FS, 0.01% FS or 0.01% RD
  • Dual range form -100 to 3,000 kPa to 0 to 100,000 kPa
  • Control stability to 0.005% FS
  • Ultra high speed pressure generation and control
  • No external pressure source required
  • Control using internal or external modules

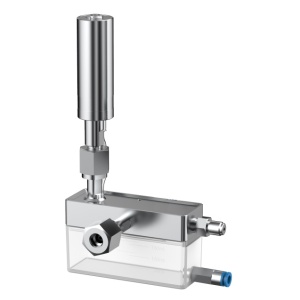

  • Contamination prevention system

  • LAN, USB, RS232, and Ethernet communication

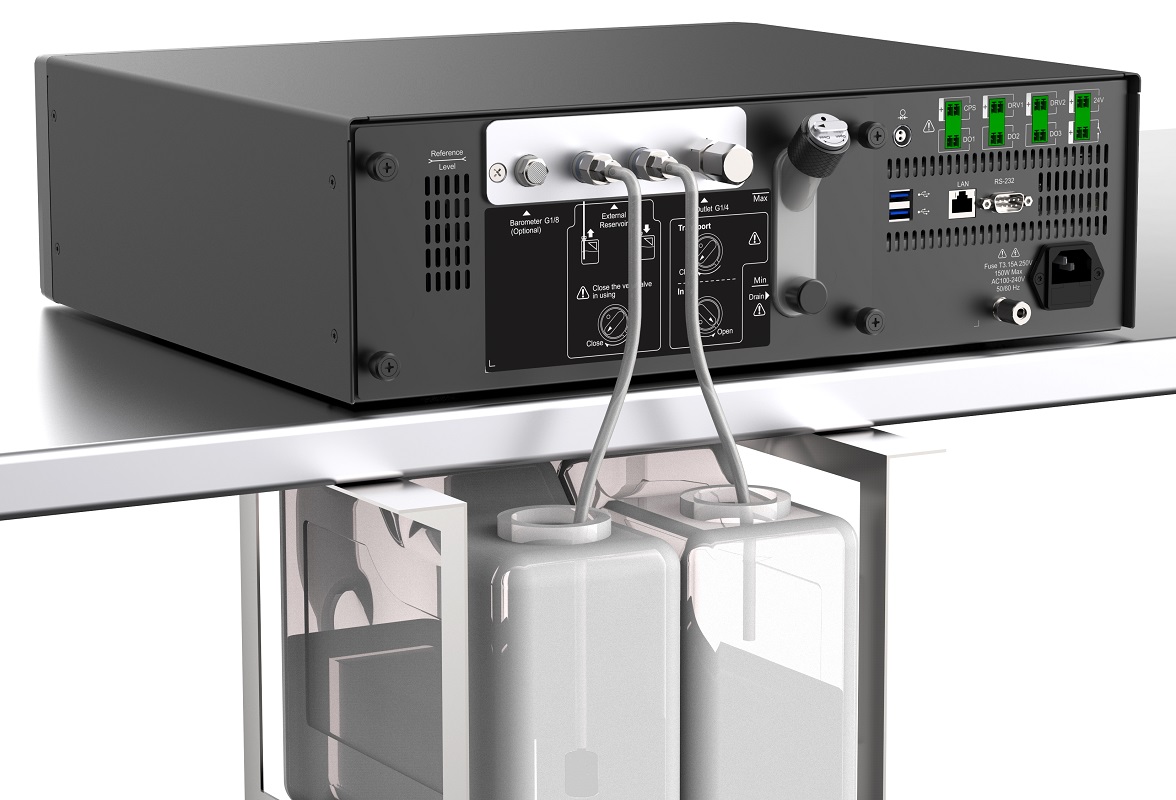

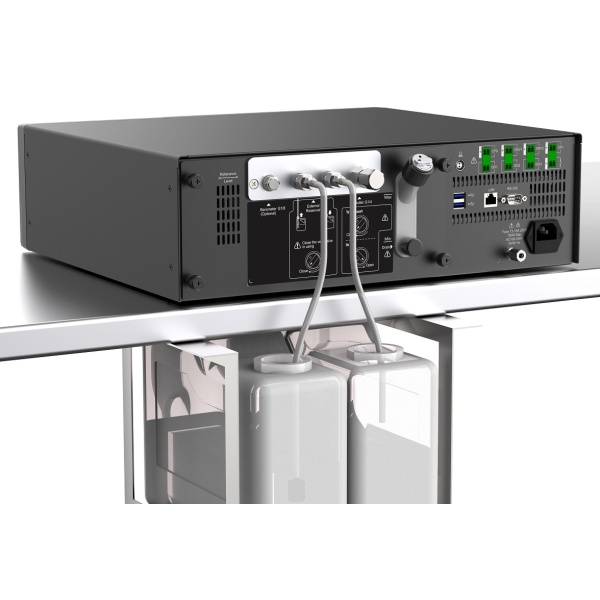

  • External reservoir support
  • Easy maintenance
  • Emulation mode
