SPU220A Solenoid Valve, Assisted lift (2/2 way)

We do stock several different variations of this product, and can special order others that are not in stock. Please contact us with your required spec and we can quote accordingly.

All variations shown in the product selector are typically ‘In stock’ subject to prior sales.
Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4-6 weeks.

SKU: SPU220A

Price range: $176.00 through $214.00 ex. GST

Add to Quote
Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

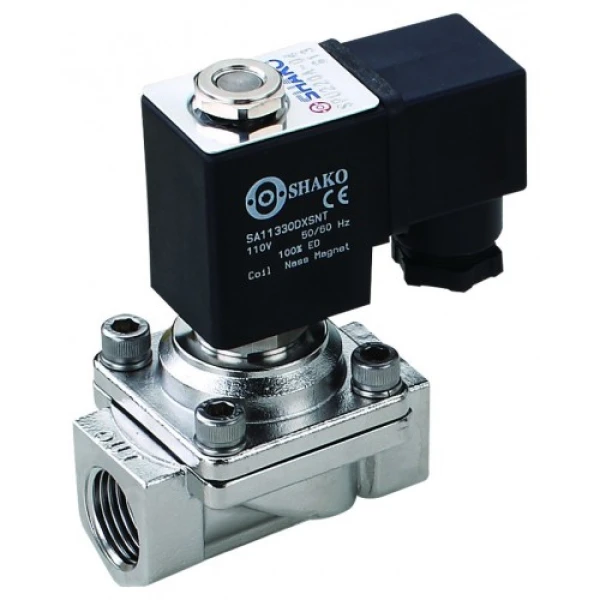

The Shako SPU220A series, a 2/2 way Stainless Steel Solenoid Valve with assisted lift, for use in harsh environments. Direct lift ideal for emptying tanks or low pressure applications.

Available in 3/8″, 1/2″, 3/4″ and 1″ BSP process connections (or special ordered in NPT)

We stock various versions and can special order to meet your specifications. Contact us for a quote tailored to your needs.

These are direct acting valves so will open without any pressure in the the line (as opposed to a pilot acting valve, which requires some minimum pressure to help open the valve fully)

  • 0 kPa to 700 kPa operating pressure differential (or as low as 0-500 kPa in some versions)
  • High flow rate
  • 1000 kPa proof pressure
  • 3/8″, 1/2″, 3/4″ and 1″ process connections available, in BSP (or special ordered in NPT)
  • Optional flange connections can be special ordered
  • IP 65 Din plug coils in all common voltages
  • Economically priced
Model SPU220A-03 SPU220A-04 SPU220A-06 SPU220A-08
Port size 3/8″ 1/2″ 3/4″ 1″
Fluid Compressed air (light oil, water)
Orifice Ø13mm Ø20mm Ø25mm
Effective area 76mm² 162mm² 220mm²
Acting Assisted Lift
Construction Diaphragm
Operating pressure range AC 0 ~ 7 kgf/cm² (700 kPa)
Operating pressure range DC 0 ~ 6 kgf/cm² (600 kPa) 0 ~ 5 kgf/cm² (500 kPa)
Proof pressure 10 kgf/cm² (1000 kPa)
Body material / Flange material Stainless Steel SUS316 / SUS316, SUS304
Fluid temperature -10°C ~ 90°C
Ambient temperature -10°C ~ 60°C
Installation Horizontal
Duty cycle 100% ED
Coil type DIN
Protection class IP65 (DIN 40 050)
Insulation class F
Voltage tolerance ±10%
Standard voltage 220VAC, 110VAC, 24VDC, the other voltage is optional
Power consumption AC110V: 17.6VA, AC220V: 18.1VA,DC:15W (DC: 18.5W option)
Net weight 725g 715g 920g 1250g
