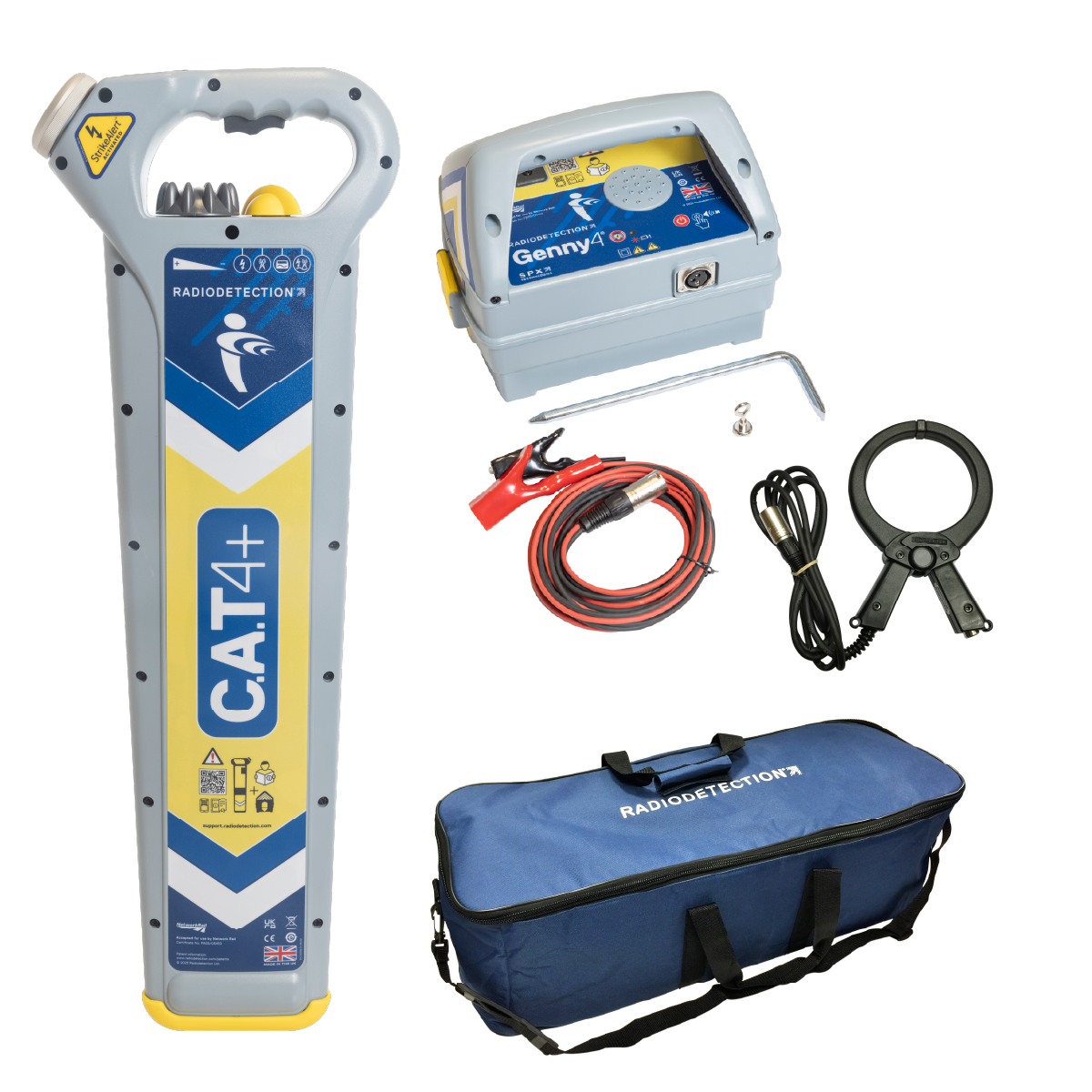

C.A.T4+ Cable Avoidance Tool and Genny4 Signal Generator Kit

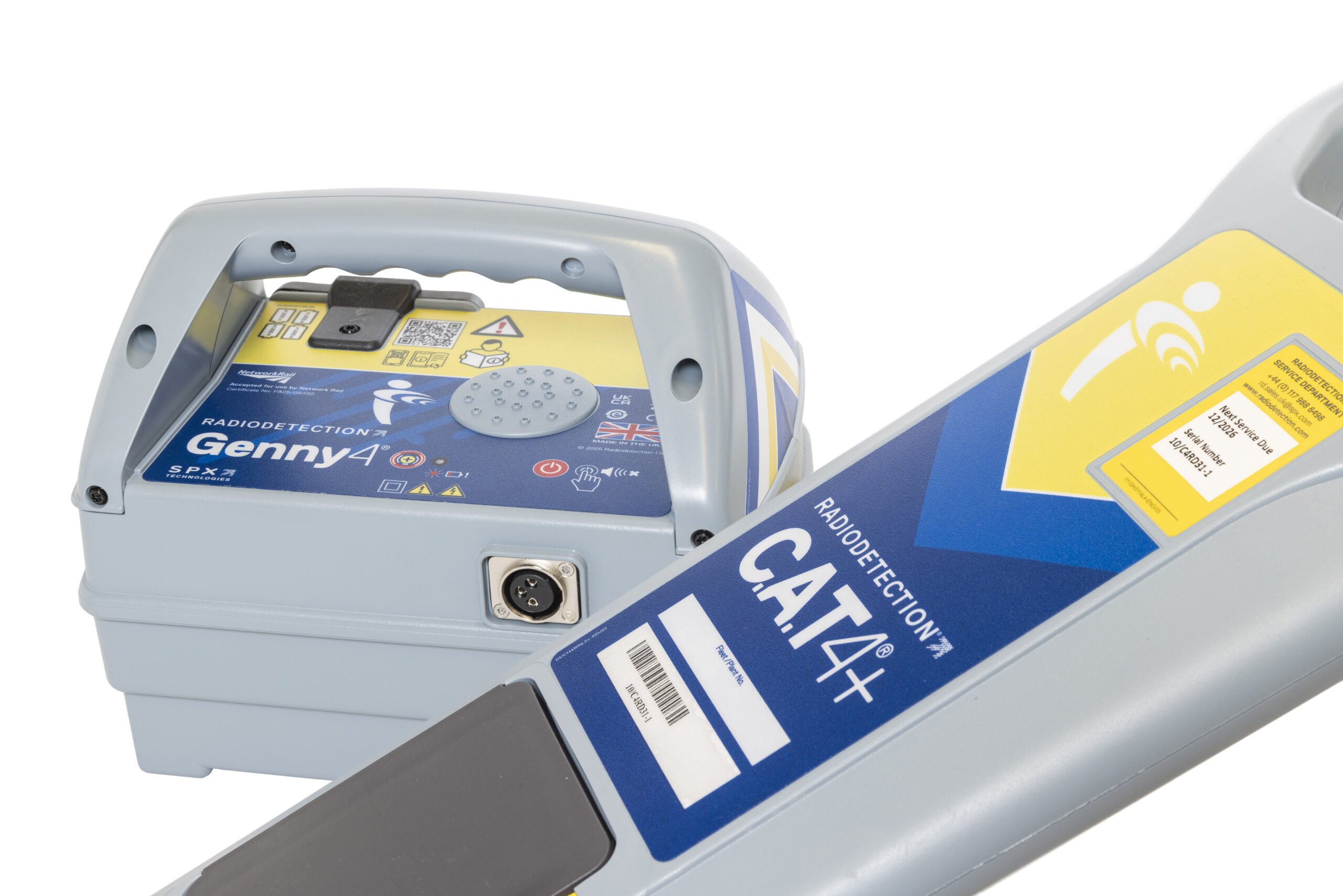

C.A.T4+ Cable Avoidance Tool and Genny4 Signal Generator Kit - Image 2

Includes Direct Connection Lead and Earth Stake
Reverse Compatibility
C.A.T4 and Genny4 have been designed to be compatible with all C.A.T3 and Genny3 accessories.

C.A.T4+ Cable Avoidance Tool and Genny4 Signal Generator Kit

C.A.T4^® and Genny4^® products provide a comprehensive range of Cable Avoidance Tools helping professionals to drive best locating practice, reduce the number of cable strikes, and dig more safely.

The C.A.T4+ offers the same locating performance as the C.A.T4 but with addition of Depth measurement, allowing better identification of the route of buried utilities.

Genny4^®’s patented simultaneous dual-frequency signal output facilitates location of small diameter cables such as telecoms and street lighting, including spurs. All C.A.T4^® locator models have patented technology to detect both signals simultaneously. The power boost function in Genny4^® enables the locate signal to travel further and deeper, and couple onto utilities more easily.

SKU: 10/CAT4+RD31/GEN2U

$4,777.00 ex. GST

Clamp Diameter

Clear

Add to Quote

Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

Dig More Safely

As safety critical tools, C.A.T4® and Genny4® include features designed to support safe working and reduce utility strike risk. StrikeAlert® warns of shallow buried utilities, SWING™ alerts operators to incorrect usage patterns, and Dynamic Overload Protection™ filters high levels of interference in electrically noisy areas.

Detect More, Detect Faster

The Radiodetection C.A.T and Genny range is designed to locate buried pipes and cables before excavation, helping operators work safely while reducing risk and cost. Clear displays, simple mode controls and dependable sensitivity make the system easy to use in the field.

Small Cable Locating

Simultaneous dual frequency and intuitive locating methods help C.A.T4 and Genny4 users locate small diameter cables such as telecom twisted pairs, CATV feeds, spurs and drop-offs, which are often difficult to detect and can present a common strike risk.

Avoidance Mode™

Avoidance Mode speeds up pre-dig scanning by searching for Power, Radio and Genny signals simultaneously. It helps operators rapidly pinpoint buried utilities and trace them across an area while maintaining safe locating practice.

Genny4 Signal Boost

Alongside its standard power mode, Genny4 provides a Signal Boost feature that increases output signal by up to a factor of 10, helping operators locate utilities deeper and over greater distances.

Dynamic Overload Protection

Radiodetection’s unique digital signal processing capabilities equips the C.A.T4 with the ability to reject electrical interference. Dynamic Overload Protection gives C.A.T4 series products the ability to continue operating in electrically challenging areas, such as near substations and under power cables, where other locators’ detection circuitry may be overloaded and no longer function.

Skip to PDF content

C.A.T4+ Cable Avoidance Tool Specifications

PERFORMANCE

Dynamic Range	120dB @10Hz
Dynamic Overload Protection™	40dB @50Hz (automatic)
Locate Accuracy	+/- 10% of depth
Depth Range	Line depth 4m, Sonde Mode 7m
Depth Accuracy	Line mode 5%, Sonde Mode 5%
Horizontal GPS Accuracy*	3m CEP (Circular Error Probable)
Data-logging capacity	24 months @8hrs day, 5 days per week
Service indicator	Provides 30 day warning prior to elapse date

^* On GPS model variants GPS accuracy depends by many factors, such as: location, time of the day, weather conditions, number of satellites available and their geometry.

CAPABILITY

Mode	Frequency Range	Sensitivity @1m	Good Conditions	Poor Conditions
Power Signals (P)	50Hz and 60Hz and harmonics	3mA	3m	2m
Radio Signals (R)	15kHz to 30kHz	25µA	2m	1m
Genny4® Signals (G)	Simultaneous 32.768kHz and 131.072kHz +/- 20Hz	5µA	4m	2m
Avoidance Mode (A)	P+R+G As above	As Above	4m	2m

PHYSICAL CHARACTERISTICS

Temperature & Altitude:	The product has an extended operating temperature range of -10°C to +50°C and is certified for use at altitudes up to 5,000m
Ingress Protection Rating	Weatherproof to NEMA3S and IP54. The gC.A.T4 models have been tested and certified to meet the IP54 standard. The product is protected against rainfall, but it should not be cleaned with water jets.
Weight	2.3kg (including batteries)
Unit dimensions	716mm × 251mm × 64mm
Recommended Service Interval	Annual

Genny4 Signal Generator Specifications

PERFORMANCE

Maximum output voltage	23V RMS into an open Circuit
Maximum output current	66mA RMS into a Short Circuit
Maximum output power	1 Watt in Direct Connection Mode
Induction output	Magnetic flux Density (B) 1.089 µT @ 500mm

TRANSMIT FUNCTIONS AND OPERATION

Transmits a signal or simultaneous signals to aid location of cable and pipes, including smaller diameter cables such as telecom or CATV

Operation	Push button control by pressing appropriate push button On / off, speaker volume control and Boost button for selecting standard or Boost output level
LED Indication	Indicates Boost output mode selection and battery low warning indicator
Operating Modes	Direct Connection Mode: 33kHz (32768Hz) and 131kHz (131072Hz) both signals transmitted simultaneously Transmitter Clamp Mode: 33kHz (32768Hz) and 131kHz (131072Hz) both signals transmitted simultaneously Induction Mode: 33kHz (32768Hz)
Output Signal Level	Selectable Standard or Boost Mode Note: Transmitter will always power up in standard mode
Audio output	Standard and Mute options Audio output change to indicate a good connection
Power Options	Alkaline or NiMH – requires 4 off D type cells
Battery Life	40 hours continuous in standard mode or 15 hours continuous in Boost mode using Direct Connection Method 28 hours continuous in standard mode or 9 hours continuous in Boost mode using Induction method

PHYSICAL CHARACTERISTICS

Construction	Injected Molded ABS Plastic
Weight	2.75kg with batteries and tool tray fitted
Dimensions	27.5cm x 17cm x 20cm
Ingress Protection Rating	IP54
Audio Option	Built-in water-resistant speaker
Operating Temperature	-10°C to 50°C
Storage Temperature	-40°C to 70°C
External Connection	XLR type for connection of direct connection lead, transmitter clamp and accessories

MODEL CHOICE

There are three C.A.T4 models to chose from, for customers whose prime reason for using a cable avoidance tool is to avoid any utilities, then the C.A.T4 and C.A.T4+ are a perfect solution. For customers who wish to survey and report what they find and trace, the gC.A.T4+ model features usage monitoring and GPS, logging key locate parameters every second to aid in identifying training needs, compliance and recording workflow patterns, providing data on not only when and how, but also where the gC.A.T4+ was being used. Using a gC.A.T4+ with C.A.T Manager® Online, Radiodetection’s asset tracking and workflow management system, enables Managers to produce reports indicating when where and how all their C.A.T4s are being used, enabling consistent improvement programs to be introduced, reducing bad practice, improving safety by reducing cable strikes and costs of excavation programs.

Features	C.A.T4	C.A.T4+	gC.A.T4+
Avoidance Mode (A)	✓	✓	✓
Genny Dual Signal Locate (G)	✓	✓	✓
Power Signal Locate (P)	✓	✓	✓
Radio Signal Locate (R)	✓	✓	✓
eCert^®	✓	✓	✓
Dynamic Overload Protection	✓	✓	✓
Depth		✓	✓
StrikeAlert	✓	✓	✓
Service Due Indicator			✓
SWING Warning			✓
CALSafe^®			✓
C.A.T Operation logging			✓
Bluetooth^® Wireless Technology			✓
GPS/GNSS			✓
C.A.T Manager for PC Support	✓	✓	✓
C.A.T Manager Mobile App Support			✓
