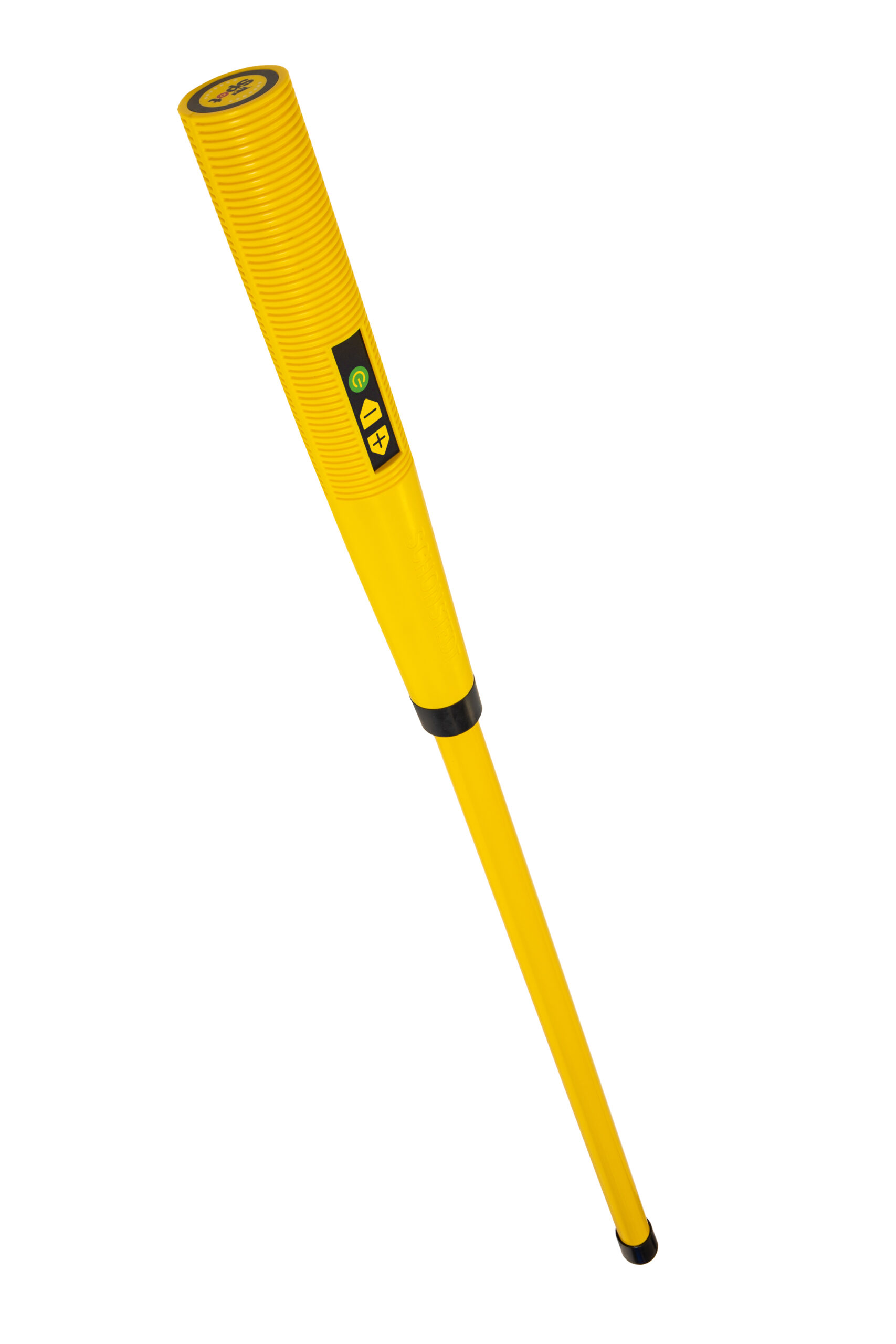

Spot, the “Next Generation Stick Locator” offers accuracy and ease of use in a sleek, light-weight package with improved ergonomics. If you are looking for high accuracy at a lower cost, put Spot on the trail of your next locate!
Designed for operators who only need a magnetic locator infrequently, in its slim “stick” shape, SPOT has preset digital gain settings and a membrane switch for fast, “one-handed” operation.
$1,718.00 ex. GST
Environmental protection rating of IP54
Waterproofing allows users to continue their search for ferrous metal objects in inclement weather, and even if they are under shallow snow or water!
7-year warranty
Users of Schonstedt products can be confident in the low total cost of ownership of their purchases because they are supported by a 7 year warranty. Some competitors offer 2 or more, but most only provide 1-year coverage.
Optimized for finding a range of objects
Spot is optimized to locate a wide variety of ferrous objects, ranging from steel manhole covers, through steel pipe joints and all the way to survey marker pins and unexploded ordnance.
Improved sleek ergonomics design
Spot is the latest incarnation of probably the world’s favorite “yellow stick” magnetic locator. The concept has survived the test of time, the ergonomics have been brought right up to date, with one-handed operation and a rugged, environmentally-protected design, enabling Spot to work with you and for you, virtually wherever you go.
Weighs less than 2lbs
Light in weight, heavy in features and capability!
| Audio Output | Frequency increases or decreases with signal strength (gradient field intensity). Range: 30 to 4000 Hz. |
| Depth Detection | Up to 5.5m deep, object dependent |
| Low Battery Indicator | ½ second audio beep, every 13 seconds |
| Gain | 5 levels: Extra Low (1), Low (2), Medium (3), High (4), Extra High (5) Audio: Progression of audio beeps to correlate with gain setting (one beep for #1, two beeps for #2, and so on) |
| Volume | 2 Levels: Medium and Maximum |
| Input Power | One 9V Battery |
| Battery Life | 24 Hours (intermittent usage) |
| Operating Temperature | -25°C to 60°C |
| Overall Length | 107.4cm |
| Nominal Sensor Spacing | 50cm |
| Weight | ~0.9kg |
| Water and Dust Protection | Rated IP54 overall, waterproof up to 58cm from bottom tip |
Schonstedt Magnetic Locators are designed to accurately and reliably locate buried ferrous metal objects, such as:
| Model: | Maggie | Spot | GA-52Cx | GA-72Cd | GA-92XTd |
|---|---|---|---|---|---|
| Main user benefit: | Highest performance | Lightweight with simple controls | Most rugged | Most versatile & common for UXO & Demining applications | Collapsible housing allows easy storage |
| Audio output | ✓ | ✓ | ✓ | ✓ | ✓ |
| Visual output | ✓ | ✓ | ✓ | ||
| Battery indicator | ✓ | ✓ | ✓ | ||
| Sensitivity indicator | ✓ | ✓ | ✓ | ||
| Sensitivity controls | 4 levels | 5 levels | 5 levels | 4 levels | 4 levels |
| Headphone compatible | ✓ | ✓ | ✓ | ✓ |
| Target: | Maggie | Spot | GA-52Cx | GA-72Cd | GA-92XTd |
|---|---|---|---|---|---|
| 1″ (2.5cm) PK Nail | 30cm | 30cm | 30cm | 28cm | 25cm |
| 4″ (10cm) Pipe Joint | 3.35m | 3.05m | 3.05m | 3.05m | 2.74m |
| Curb Boxes | 3.35m | 3.05m | 3.05m | 3.05m | 2.74m |
| Iron Valve | 3.35m | 3.05m | 3.05m | 3.05m | 2.74m |
| Manhole Cover | 3.6m | 3.05m | 3.05m | 3.05m | 2.74m |
| Septic Tank Handles | 1.83m | 1.52m | 1.52m | 1.52m | 1.22m |
| Steel Drum | 3.6m | 3.05m | 3.05m | 3.05m | 2.74m |
| Surveyor Marker | 3.05m | 2.74m | 2.74m | 2.74m | 2.44m |
| Well Casing | 6.1m | 5.49m | 5.49m | 5.18m | 4.88m |
