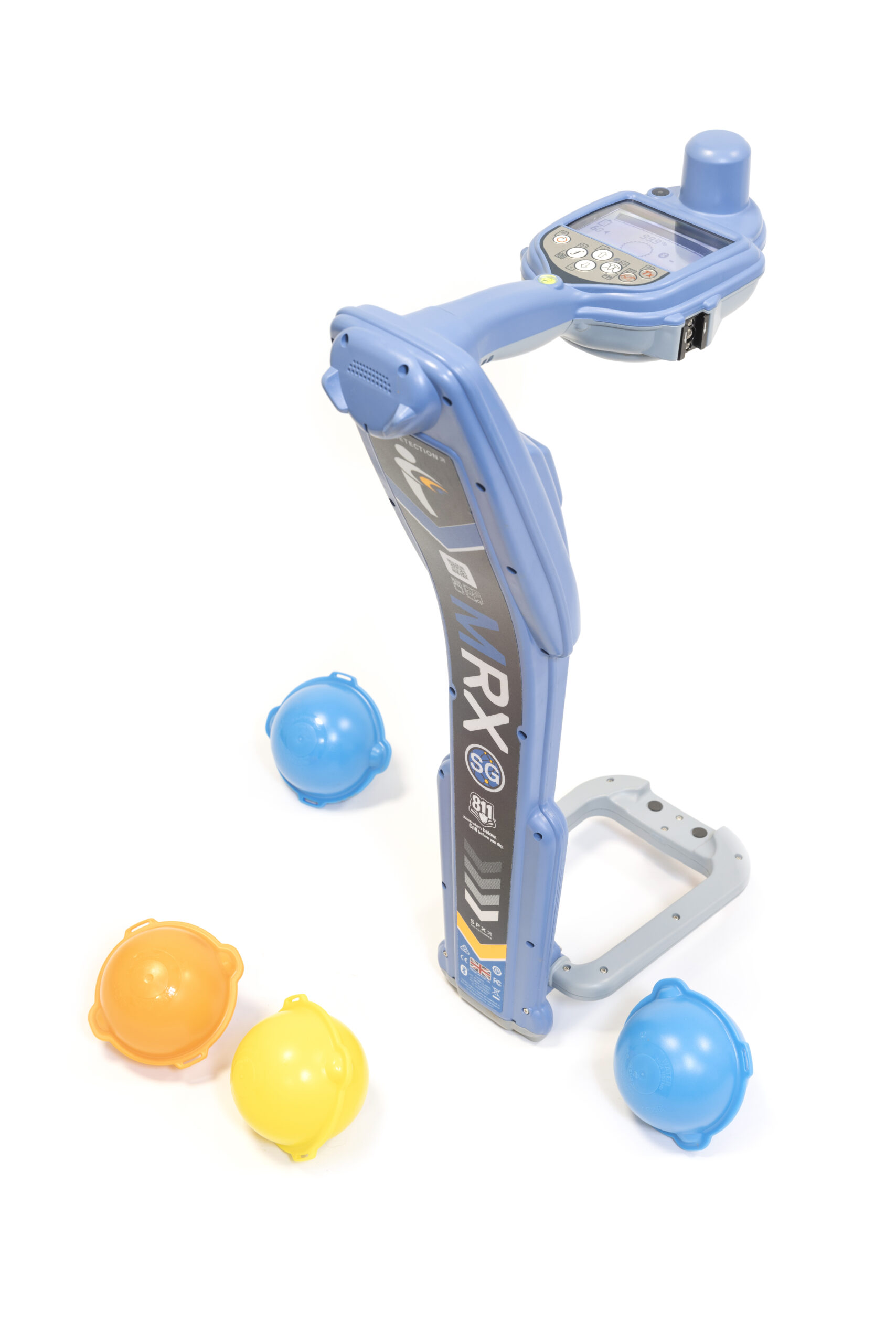

MRX SG Radio Frequency Marker, Survey Grade Cable and Pipe Locator with Built-in Usage Logging and GPS

MRX SG Radio Frequency Marker, Survey Grade Cable and Pipe Locator with Built-in Usage Logging and GPS - Image 2

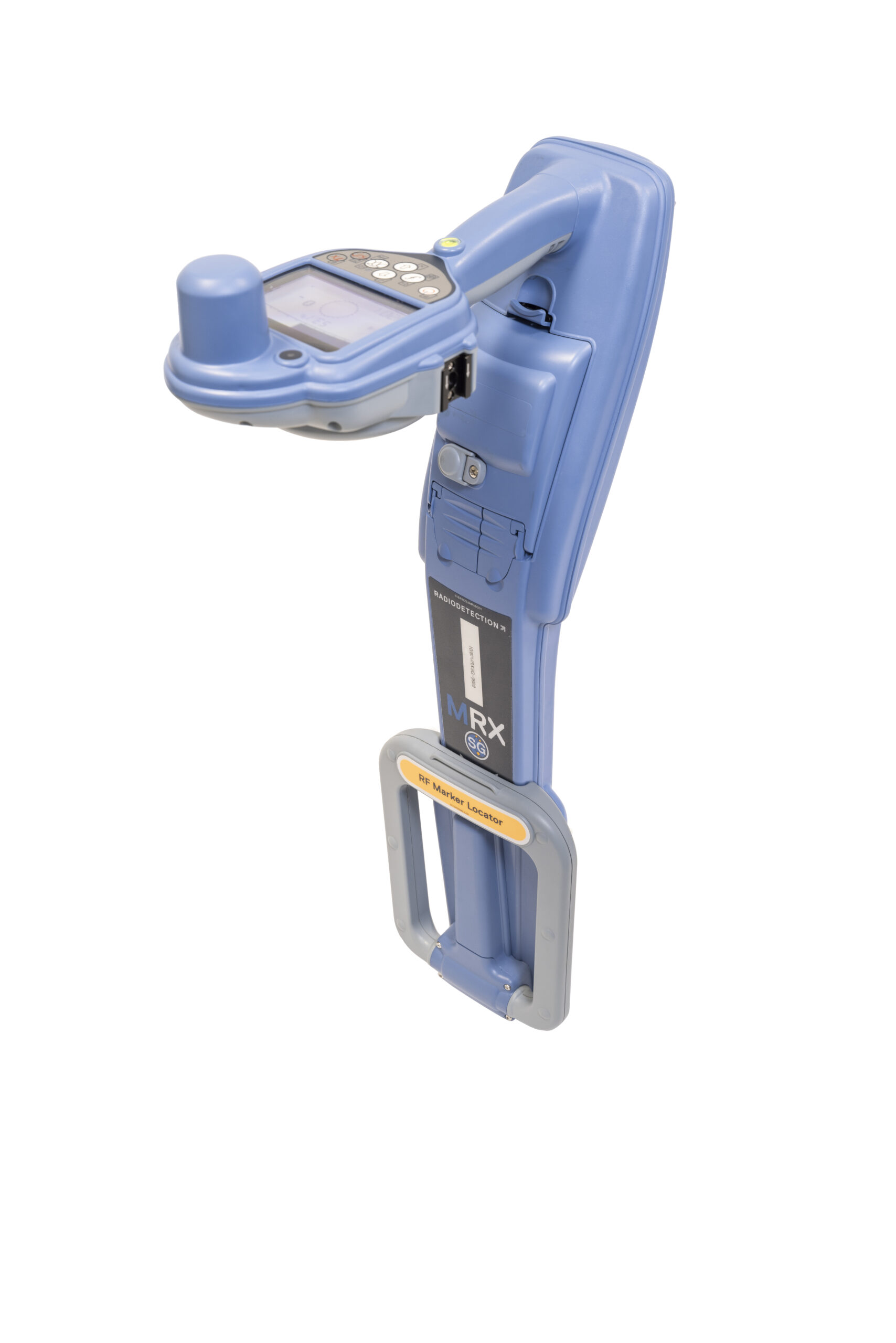

MRX SG Radio Frequency Marker, Survey Grade Cable and Pipe Locator with Built-in Usage Logging and GPS - Image 3

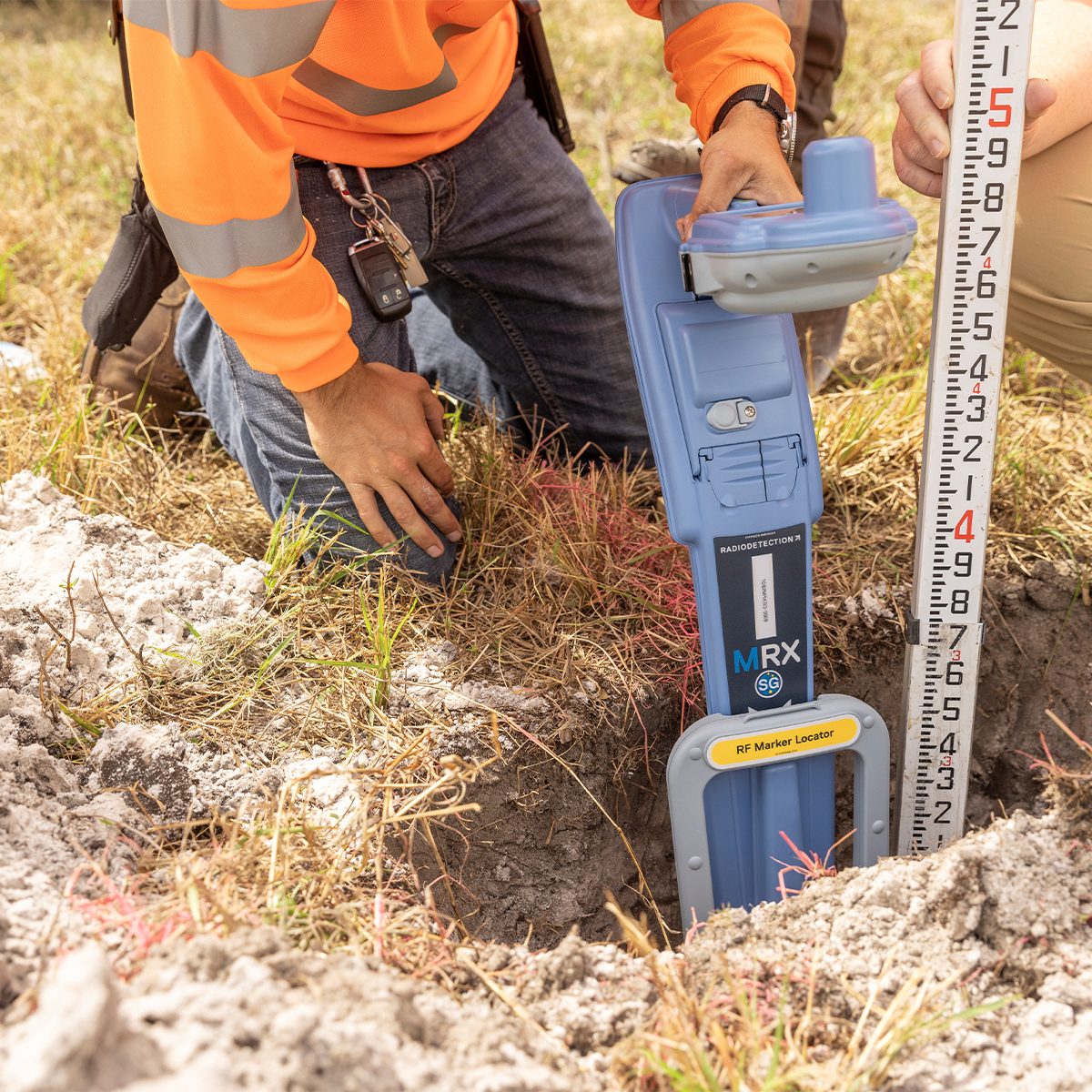

MRX SG Radio Frequency Marker, Survey Grade Cable and Pipe Locator with Built-in Usage Logging and GPS - Image 4

COMPATIBLE RF MARKER BALLS

$816.00 ex. GST per box of 30

MRX SG Radio Frequency Marker, Survey Grade Cable and Pipe Locator with Built-in Usage Logging and GPS

The MRX SG is the most advanced RF (Radio Frequency) marker locator in the MRX range, combining precision line locating, marker ball detection, and survey-grade accuracy in a single, powerful solution. Compatible with both Android™ and iOS^®, the MRX SG is built for professionals who need to find buried utilities and marker balls, as well as map them with confidence.

The MRX SG delivers precision locating, high accuracy mapping, and rugged reliability for demanding field environments.

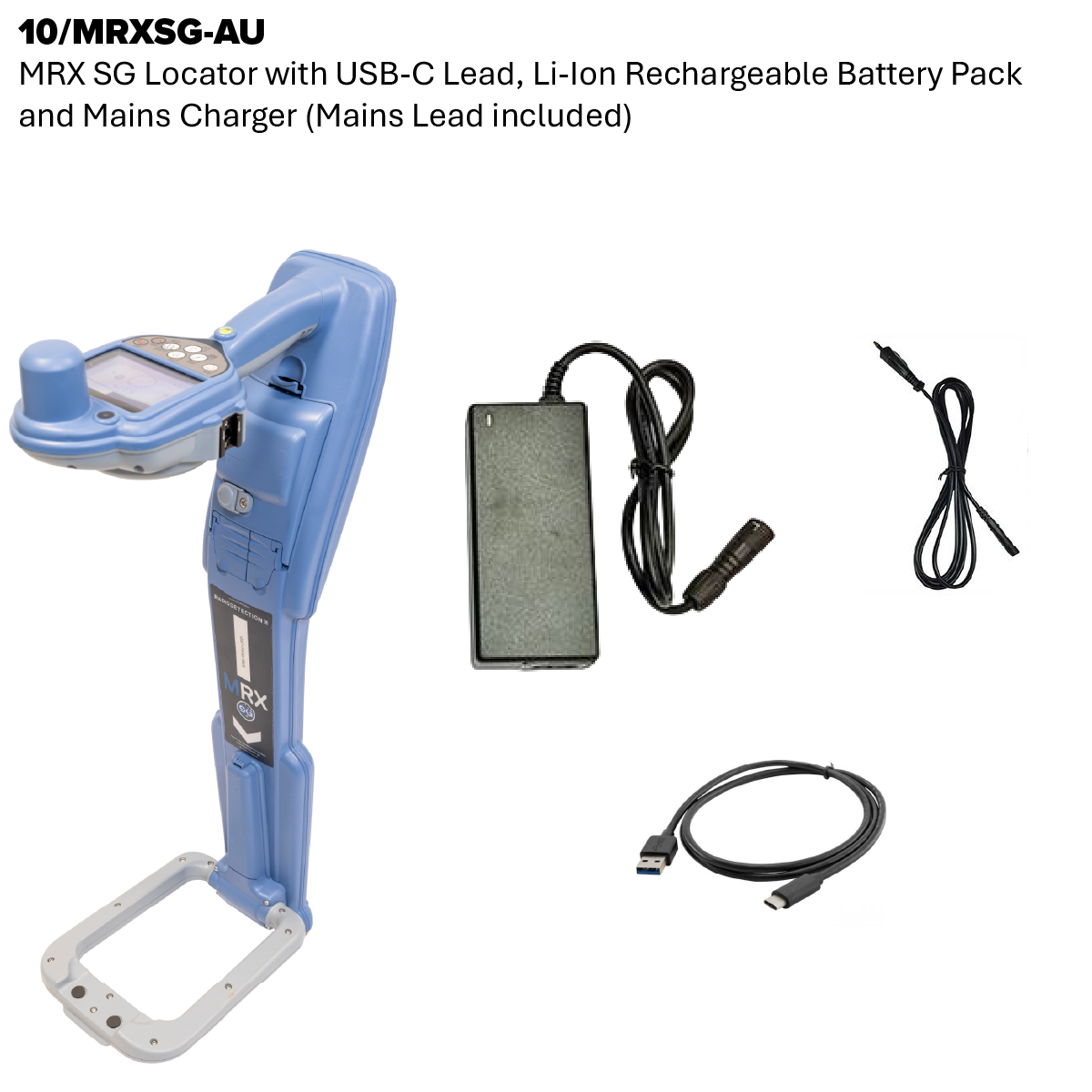

MRX SG Locators come with USB-C Lead, Mains Charger & Mains Lead as Standard along with the 2x D-Cell Battery Tray for added flexibility in the field.
3 Years Warranty via Registration covered by Radiodetection Australia.

Go to: MRX SG Kit

SKU: 10/MRXSG-AU-PARENT

Price range: $15,624.00 through $16,141.00 ex. GST

With Soft Carry Bag and Phone Holder?

Clear

Add to Quote

Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

Multi-function multi-industry accurate locating

Compass Orientation
Power filters
Utility specific frequencies

SPEED, ACCURACY AND RELIABLE PERFORMANCE

Easy to setup and use
Sun light readable display, high performance audio system and vibration alerts for noisy environments
Sensitive and accurate signal processing for reliable results

Protecting technicians and infrastructures

Encourage correct locator handling for improved detection
Strike Alert, warns of the presence of shallow cables
Vibration handle, never miss a warning

Ergonomic design, premium quality

Rugged yet light weight and ergonomic
Designed and built to the highest standards in Great Britain
Self Test for confidence and trust in your locator measurements

Skip to PDF content

PERFORMANCE

Sensitivity	6E-15 Tesla 5µA at 1 meter (33kHz)
Dynamic range	140dB rms/√Hz
Selectivity	120dB/Hz
Depth measurement precision¹	Cable/Pipe/Sonde: ± 3% RF Markers: ± 15% ± 5cm – 1.5m
Locate accuracy	± 5% of depth
Active Locate filter bandwidth	± 3Hz, 0 < 1kHz ± 10Hz, ≥ 1kHz
Start-up time	Less than two and a half seconds
Maximum depth readout²	Cable / Pipe: 30m Sonde: 19.5m RF Markers: 5m

GNSS

Convergence time RTK	< 10 sec
Position accuracy RTK	0.01m + 1ppm CEP

Locate Functions

Active Locate Modes	Peak, Peak+™ (choice of combined Peak & Guidance or Peak & Null), Guidance, Broad Peak, Null, RF Marker, Combined (Cable, Pipe and RF Marker)
Gain control	Guidance Mode: Automatic Other modes: Manual gain using “+” or “-“ with one touch to return to center (50% of Full Scale)
Custom locate frequencies	Up to 5 additional frequencies in the range 50Hz to 1kHz at 1Hz resolution
Active locate frequencies	21 Frequencies: ELF (98/128Hz), 512Hz, 570Hz, 577Hz, 640Hz, 760Hz, 870Hz, 920Hz, 940Hz, 1090Hz, 1450Hz, 4096Hz, 8kHz, 8440Hz, 9820Hz, 33kHz, 65kHz, 82kHz, 83kHz, 131kHz and 200kHz*
Sonde Frequencies	4 Frequencies: 512Hz, 640Hz, 8kHz and 33kHz

Physical Characteristics

Weight	With Lithium-Ion battery pack fitted: 2.6kg
Ingress Protection Rating	IP65* Protected against dust ingress and jets of water³ applied from any direction
Operating temperature⁴	-10°C to 50°C
Unit dimensions	687mm × 350mm × 177mm

All specifications are measured in test conditions, at 21°C, and fitted with 2 × good quality alkaline batteries unless otherwise noted.
^* The antenna loop is IP55 rated. Minimal dust ingress can occur, this does not affect performance
¹ Based on volumetric testing at a known fixed depth. True depth accuracy depends on factors such as ground composition, utility characteristics and the locate frequency / signal strength employed. Always follow local safe digging guidelines.
² The RD7200 will locate to greater depths in the right conditions, but depth accuracy will be compromised. Depth measurement will not be displayed beyond these depths.
³ Water projected by a nozzle at a pressure of 30kPa /0.3 bar / 4.4 psi in accordance with BS EN 60529 1992 A2 2013.
⁴ At very low temperatures, battery life will be degraded and measurement precision may be reduced.

Construction

Accurate and simple to use, the MRX SG comes with twenty one active and four passive frequencies (Power, Radio, CPS and CATV) that cover the majority of site locating tasks. A rugged, IP65 rated casing along with a high contrast screen make it suitable for use in all weather conditions.

Power

Current Direction, track the right line
Identify your target amongst a number of parallel utilities by applying a specialized CD signal from a Tx-10 transmitter. CD arrows displayed on the locator confirm you are tracing your target line.

Power Filters™, works where other locators won’t
When a transmitter can’t be connected, tracing individual power lines through dense networks can be a real challenge. Conflicting or powerful signals confuse or combine to create a wash of signal.

A single key press enables the use of the harmonic properties of power signals to establish if a signal comes from one source, or from multiple cables which you can then trace and mark.

Dynamic Overload Protection, rejects unwanted interference
Automatically filters out interference, enabling use in electrically noisy environments such as near substations or overhead power lines.

Water and Pipeline

A wide choice of active frequencies allow conductive pipes to be traced for long distances. Where sondes or cameras are used to survey pipes made from a variety of materials, including cast iron, clay, fibre, concrete and brick, the four MRX sonde frequencies are ideal for quickly locating and tracing their position.

Pipes with Cathodic Protection System can be followed using the CPS passive mode. CPS compass mode ensures alignment with the target pipeline.

Telecom

Program up to 5 extra frequencies to customize the MRX SG to signals found on your network. The MRX SG features higher frequencies to locate high impedance lines and sonde frequencies for duct and conduit tracing. Higher frequencies can also be used to trace sheathed domestic cables without grounding connections.

Cable sheath faults can be located to within 10 cm using 8 kHz Fault Find mode with a Radiodetection A-Frame

KEY DIFFERENTIATORS BETWEEN MRX MODELS

	MRX	MRX G	MRX SG
Combined Marker Ball and Utility Locating	✓	✓	✓
Active Locate Frequencies	8	21	21
Antenna Modes	5	7	7
Sonde Frequencies	4	4	4
Passive Modes	3	5	5
Advanced Noise Filtering (Power Filters^™)	✓	✓	✓
Fault Find	✓	✓	✓
iLOC^®	✓	✓	✓
Usage Logging		✓	✓
Current Direction		✓	✓
4kHz		✓	✓
Custom Frequencies		✓	✓
Onboard GPS		2-3m/7-10’	1-2cm/ sub-inch*
Combined Marker Ball and Survey Grade Locating			✓

^* Subject to RTK correction service provider and local conditions.

Which MRX model is for me?

MRX

Utility Marker
Locator

An Ergonomic Locator with
combined functionality

Boost confidence with continuous depth estimation and current measurement.
Accurately identify target power cable in the presence of many other utilities.
Easily trace sondes for water and wastewater pipes.
Extend functionality by using accessories such as clamps, A-frame or stethoscope.
Effortless data management using RD Manager^™ Online PC software for setup, calibration, and data analysis.

MRX G

Utility Marker
Locator

An Ergonomic Locator with combined functionality and advanced features for challenging environments

Verify GPS location with 2-3 m / 7-10’ accuracy.
Navigate congested areas with confidence using Current Direction (CD) technology.
Automatically stores all locate parameters providing a comprehensive picture of field operations, very useful for supervisors or health & safety personnel.
Custom frequencies: Up to 5 additional frequencies can be programmed into your locator to match it to the signals found on your target networks.

MRX SG

Utility Marker
Survey-Grade Locator

An Ergonomic Locator with triple functionality, advanced features and survey grade accuracy for mapping

Build accurate maps: 1-2cm/sub-inch^* accurate mapping.
Locate and Map: Simultaneously detect and map RF markers and utilities with survey-grade accuracy.
MAP IT YOUR WAY^™: Integrated GNSS, flexible correction services, preferred mobile app and iOS^®/Android^™ compatibility ensure easy integration into your mapping workflows.
