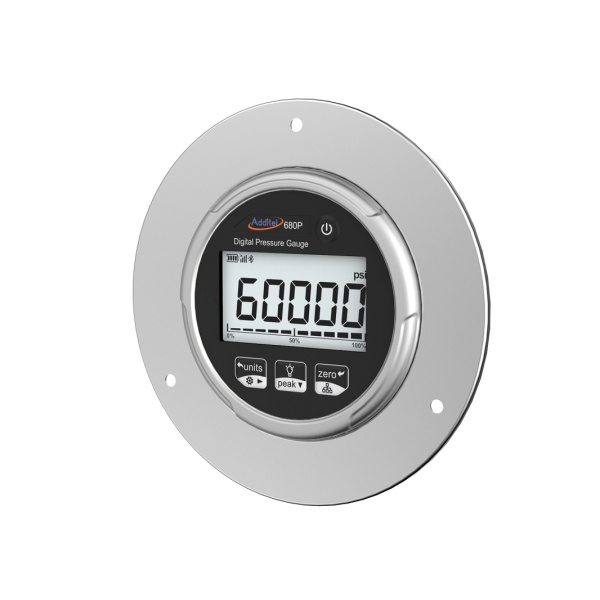

ADT680P Digital Pressure Gauge – Panel Mount
Standard (with optional datalogging)
Intrinsically Safe (with optional datalogging)
ADT680P Digital Pressure Gauges Overview
The Additel ADT680P Digital Pressure Gauge is specifically designed for panel mount applications, providing reliable pressure measurement, calibration and verification in both field and laboratory environments. Built with durability and ease of use in mind, the ADT680P combines a stainless steel construction, IP67 protection and optional data logging to deliver dependable long-term performance.
With accuracy options down to 0.02% of full span, support for Bluetooth and RS232 communication, and compatibility with Additel’s Link Mobile App, the ADT680P is well suited to fixed installations where consistent, high-quality pressure measurement is required.
Key Features
- Designed for panel mount applications
- 0.02%, 0.05%, 0.1% or 0.2% FS accuracy
- Measures gauge and compound pressure
- Up to 800,000 data logging records (optional)
- Intrinsically safe option available as the ADT680PEx
- IP67 rated with stainless steel housing and fully welded sensor
- Long battery life with multiple power modes
- Large, easy-to-read backlit display
- Bluetooth and RS232 communication
- Communication with Additel’s Link Mobile App
Understanding the ADT680P Model Variations
The ADT681A series is available in multiple configurations to suit different applications:
Standard Models
Designed for general pressure measurement, available in gauge, compound, differential and barometric pressure configurations.
Datalogging (DL) Models
Includes onboard memory for recording pressure over time, ideal for analysis and reporting.
Intrinsically Safe (Ex) Models
Certified for use in hazardous environments, including IECEx rated applications.
Intrinsically Safe (Ex) with Datalogging (DL)
Combines hazardous area certification with full data recording capabilities.
Pressure Range & Application Flexibility
The ADT680P series supports the following pressure measurement types:
- Gauge pressure
- Compound pressure
With pressure ranges from vacuum through to 60,000 psi (4,200 bar), the ADT680P is suitable for a wide range of fixed installation applications including process systems, test panels and calibration setups.
Panel Mount Design & Installation
The ADT680P is designed for axial panel mounting, allowing it to be securely integrated into control panels and fixed systems. The compact form factor, wide viewing angle display and backlight ensure clear visibility in a range of operating conditions.
Why Choose the ADT680P?
The ADT680P is designed to provide a reliable, low-maintenance solution for fixed pressure measurement applications.
Its stainless steel construction, IP67 rating and shock and vibration resistance ensure durability in demanding environments, while the simple button interface and clear display support straightforward operation. The availability of intrinsically safe models and data logging options also allows the ADT680P to be configured for hazardous areas and data-critical applications.
Calibration of your Digital Pressure Gauge
Calibration is essential for maintaining the accuracy and reliability of your digital pressure gauges. At Zedflo, we offer a complete calibration service through our in-house ISO17025 NATA accredited calibration laboratory, making us your one-stop shop for all ongoing calibration needs.
Our calibration process ensures your instruments perform to the highest standards by comparing and, where necessary, adjusting the gauge to align with known reference values. This guarantees consistent, traceable readings and long-term confidence in your pressure measurement equipment.
Applications of Digital Pressure Gauges
Digital pressure gauges are highly versatile instruments used across a wide range of industries where precision and reliability are essential. Common applications include:
Manufacturing: Monitoring and controlling pneumatic and hydraulic systems to ensure consistent process performance.
Automotive: Testing and servicing vehicle systems that rely on accurate pressure measurement for safety and efficiency.
Environmental Monitoring: Tracking atmospheric, gas, or water pressure to support environmental assessments and research.
Mining, Process, and Power Industries: Testing, calibrating, and data logging of pressure systems in demanding industrial environments.
Calibration: Serving as high-accuracy reference equipment for verifying and maintaining the performance of other pressure measurement devices.
