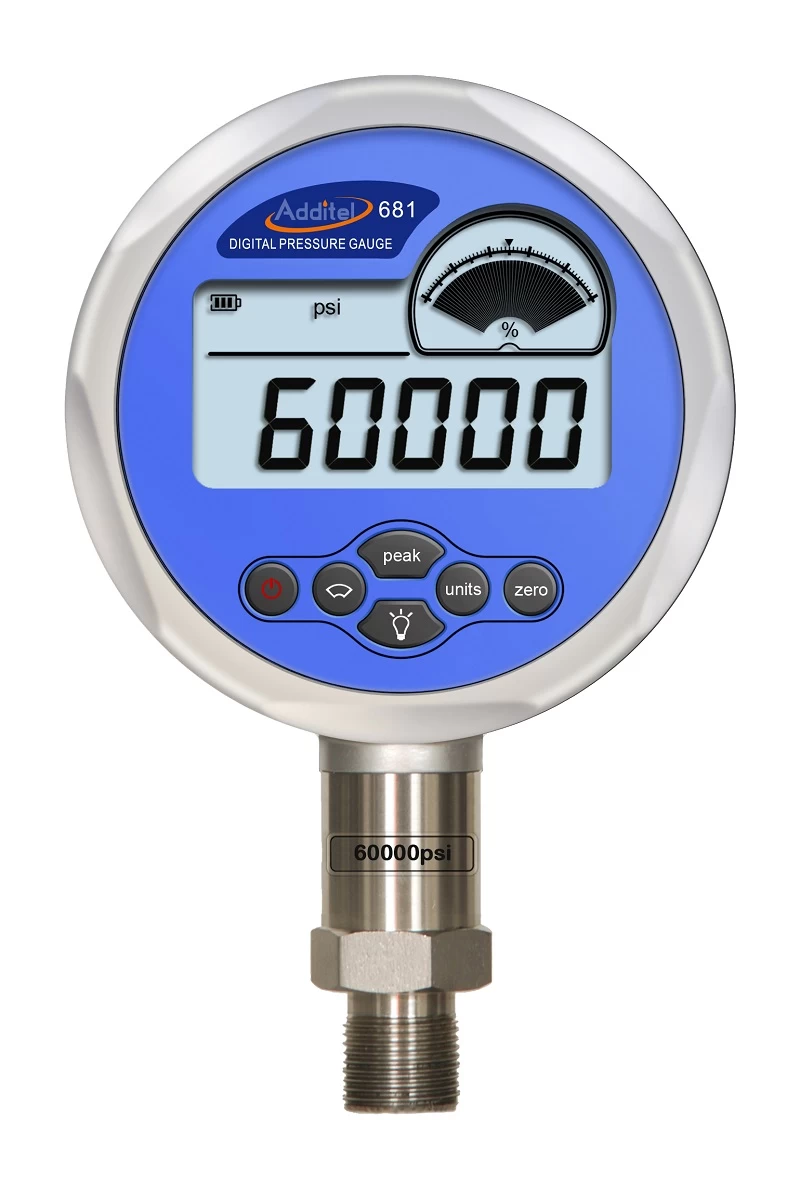

ADT681-AP-DL Digital Pressure Gauge – Absolute Pressure Data Logging

ADT681-AP-DL Digital Pressure Gauge – Absolute Pressure Data Logging

Master compound pressure measurements with our digital pressure gauge, offering unparalleled accuracy and reliability for diverse application needs.



Add to Quote

The Additel ADT681-DL data logging digital absolute pressure gauges, provide an accurate reliable and economical solution for a wide range of pressure applications. With accuracy choices of 0.2%, 0.1%, 0.05% of full scale with absolute pressure ranges to 35 kPa, there are options to meet all budgets and service requirements.

The ADT681-DL incorporates on-board datalogging and can be used with the free Additel Land software for setting up and retrieving results from the gauge or be used with optional Log II software for real time logging requirements.

The ADT681-DL digital pressure gauge is supplied with ISO17025 accredited calibration certificate. Zedflo is a NATA accredited facility and can provide accredited calibration for these products.

The ADT681-DL has options for measuring gauge, compound, differential, absolute and barometric pressure.

View Non Data Logging Versions

View IECEx Intrinsically Safe Versions

View IECEx Intrinsically Safe Data Logging Versions

View Panel Mount Versions

View Panel Mount Data Logging Versions

  • Data storage of 21,843 records (each record includes date, time, pressure and ambient temperature)
  • Choice of accuracy levels 0.2%, 0.1%, 0.05%  FS
  • Pressure ranges up to 35,000 kPa absolute
  • Selectable engineering units
  • Large back-lit easy to read display
  • % pressure indication with fan shaped graph scale for visual reference
  • Display flash warning when pressure over 120% of FS
  • All ADT681 gauges can perform real time logging with optional Log II software
  • IECEx certified model available
  • ISO 17025 accredited calibration certificate included
  • Precision pressure measurement
  • Field gauge and switch calibration
  • Pressure safety valve (PSV) testing
  • Pressure regulator testing
  • Hydrotesting
  • Gas pressure testing
  • Pressure data logging
