ADT686 Advanced Digital Pressure Gauge – Gauge Pressure

Simplify pressure measurements with our advanced digital pressure gauge, offering intuitive touch screen operation, safety valve test, leak test, and Bluetooth connectivity for seamless integration into your workflow.

SKU: ADT686-GP

Price range: $2,320.00 through $8,458.00 ex. GST

Add to Quote
Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

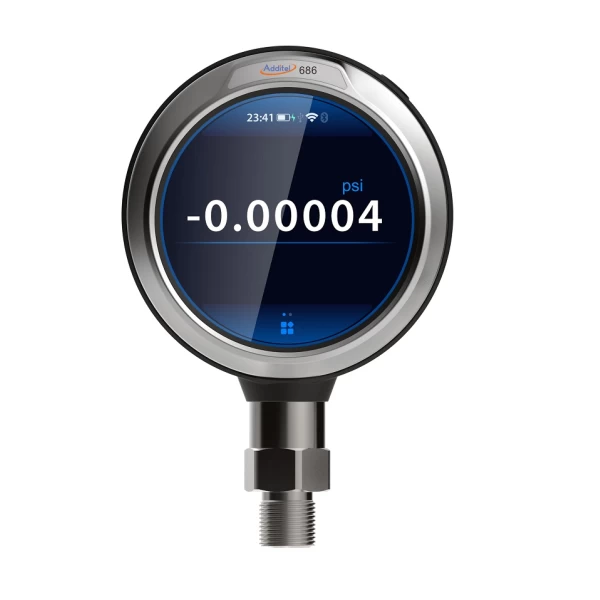

The Additel ADT686 Advanced Digital Pressure Gauge is a high-performance, precision instrument designed for demanding industrial applications. Combining exceptional accuracy with advanced functionality, the ADT686 is the ideal choice for process monitoring, calibration verification, and field testing across a wide range of industries.



High Accuracy and Reliability

The ADT686 delivers outstanding accuracy of 0.05% of full scale, making it one of the most precise digital pressure gauges available. Its robust construction and advanced sensor technology ensure reliable performance even in harsh industrial environments, including high vibration and temperature extremes.

  • Pressure ranges up to 420 MPa
  • 0.02%, 0.05% FS or 0.1% RD accuracy
  • Colour Touchscreen Display
  • Every model measures Gauge or Absolute Pressure
  • Built-in Barometer
  • Wi-Fi (optional)

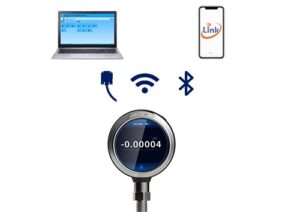

ADT686-comms

  • Intuitive Smartphone Like Interface
  • Bluetooth and USB communication

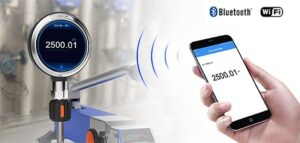

ADT686-BT

  • Communicates with Additel’s Link Mobile App
  • Optional Datalogging version (See ADT686-DL)
  • IP67 Rated
  • ISO 17025 accredited calibration w/data included
  • Optional NATA Accredited Calibration by Zedflo
