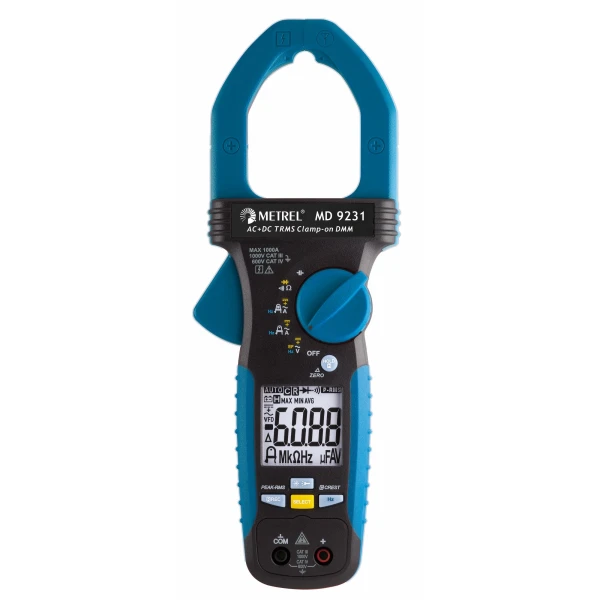

The MD 9231 is an industrial TRMS AC and DC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A.
Typically ‘In stock’ subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.
$323.00 ex. GST
The MD 9231 is an industrial TRMS AC and DC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A. It measures capacitance & frequency and is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency. The MD 9231 has a wide range of extra features, including peak value, data and MAX hold functions, auto power off, auto-ranging and a relative zero function. It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case. It also has a flashlight for work in dark conditions.
| Function | Range | Accuracy |
| DC Voltage | 600.0V to 1000.0V | ±(0.8% of reading + 5 digits) |
| AC Voltage (50 Hz … 400 Hz) |
600.0V to 1000.0V | From ±(0.8% of reading + 5 digits) to ±(10% of reading + 5 digits) |
| DC+AC Voltage (DC, 50 Hz … 400 Hz) |
600.0V to 1000.0V | From ±(1.0% of reading + 7 digits) to ±(12% of reading + 7 digits) |
| PEAK-rms (ACV & ACA) | Response: 80 ms to > 90%. | |
| CREST (Peak-Hold) | Accuracy: Add 250 digits to specified accuracy for changes > 5ms | |
| Audible Continuity Tester | Audible Threshold: At between 10 Ω and 250 Ω. Response time: 32 ms approx. | |
| Ohm | 600.0 Ω, 6.000 kΩ, 60.00 kΩ | ±(1.0% of reading + 5 digits) |
| Capacitance | 200.0 μF, 2500 μF | ±(2.0% of reading + 4 digits) |
| Diode Tester | 2.000 V | ±(1.5% of reading + 5 digits) |
| AmpTipTM clamp-on DCA | 00.00 A … 60.00 A | From ±(1.5% of reading + 5 digits) to ±(3.0% of reading + 5 digits) |
| AmpTipTM clamp-on ACA (40 Hz … 400 Hz) | 00.00 A … 60.00 A | From ±(1.5% of reading + 5 digits) to ±(3.0% of reading + 5 digits) |
| AmpTipTM clamp-on DC+ACA (DC, 40 Hz … 400 Hz) | 00.00 A … 60,00 A | From ±(2.0% of reading + 7 digits) to ±(3.0% of reading + 7 digits) |
| Regular Clamp-on DCA | 60.00 A … 1000 A | ±(1.8% of reading + 5 digits) |
| Regular Clamp-on ACA (40 Hz … 400 Hz) | 60.00 A … 1000 A | From ±(1.8% of reading + 5 digits) to ±(2.2% of reading + 5 digits) |
| Regular Clamp-on DC+ACA (DC, 40 Hz … 400 Hz) | 60.00 A … 1000 A | From ±(2.2% of reading + 7 digits) to ±(2.5% of reading + 7 digits) |
| Hz Line Level Frequency | 5.00 Hz … 999.9 Hz | ±(1.0% of reading + 5 digits) |
| Non-Contact EF-Detection | 20 V … 440 V | Tolerance: 10 V … 1000 V |
| Detection Frequency | 50/60Hz | |
| Transient Protection | 8.0 kV (1.2/50 μs surge) | |
| Overload Protections | Current & Hz functions via jaws: 1000 ADC/AAC rms at < 400 Hz Other functions via terminals: 1000 VDC/VAC rms | |
| Power Supply | 1.5 V AAA Size battery X 2 | |
| Power Consumption | Typical 13 mA for Current functions | |
| Dimension (L x W x H) | 258 x 94 x 44 mm | |
| Weight | 392 g | |
| Jaw opening & Conductor diameter | 51 mm max | |
