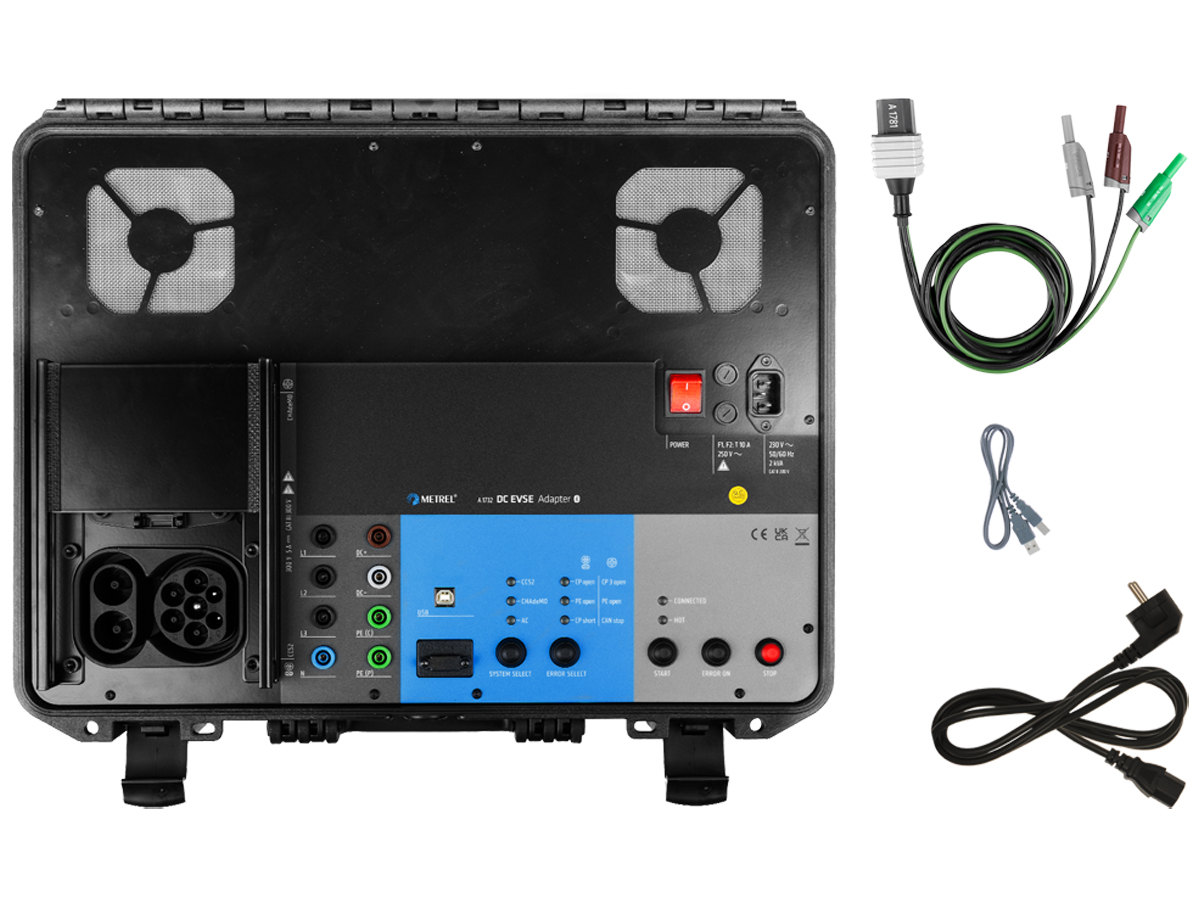

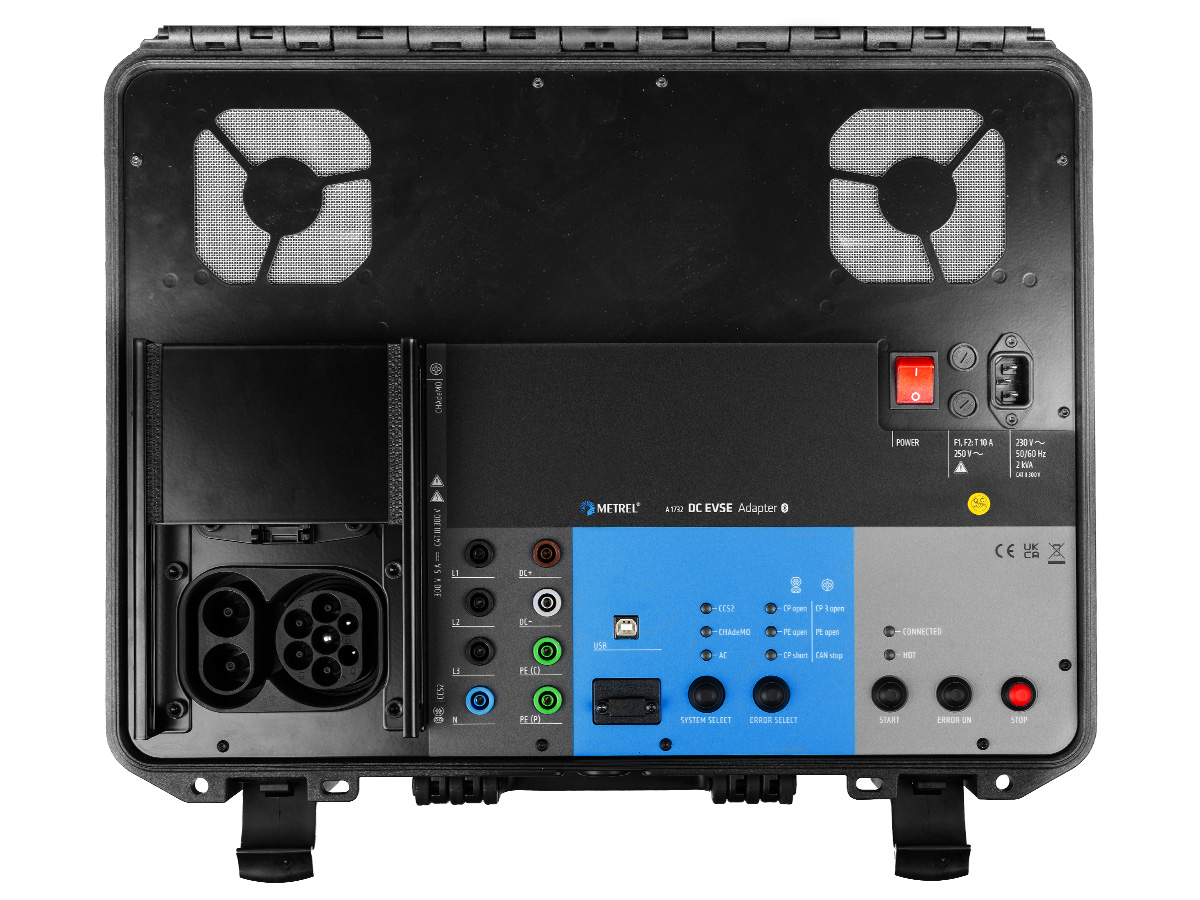

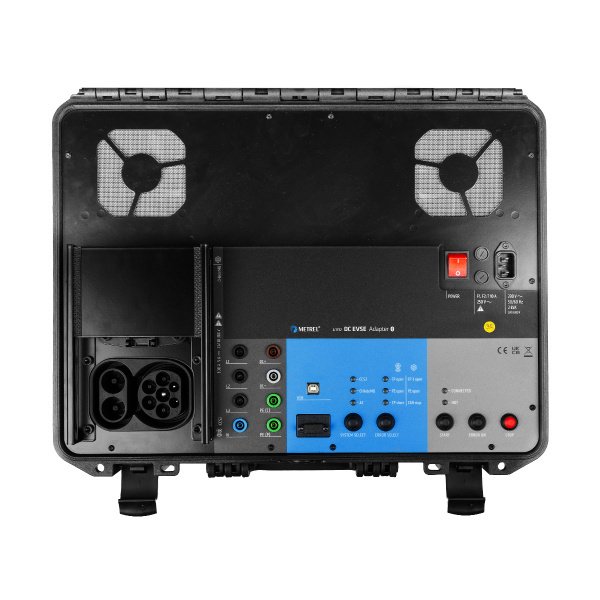

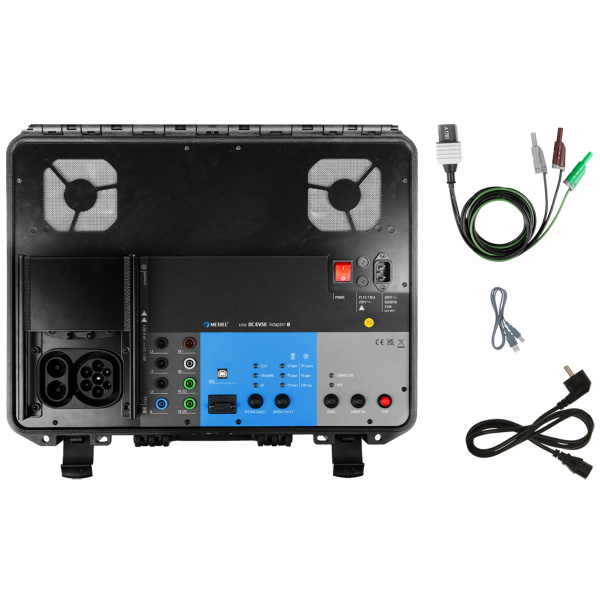

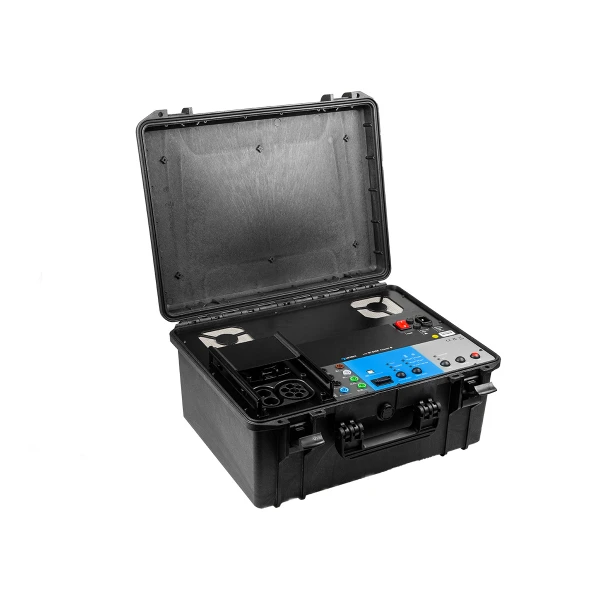

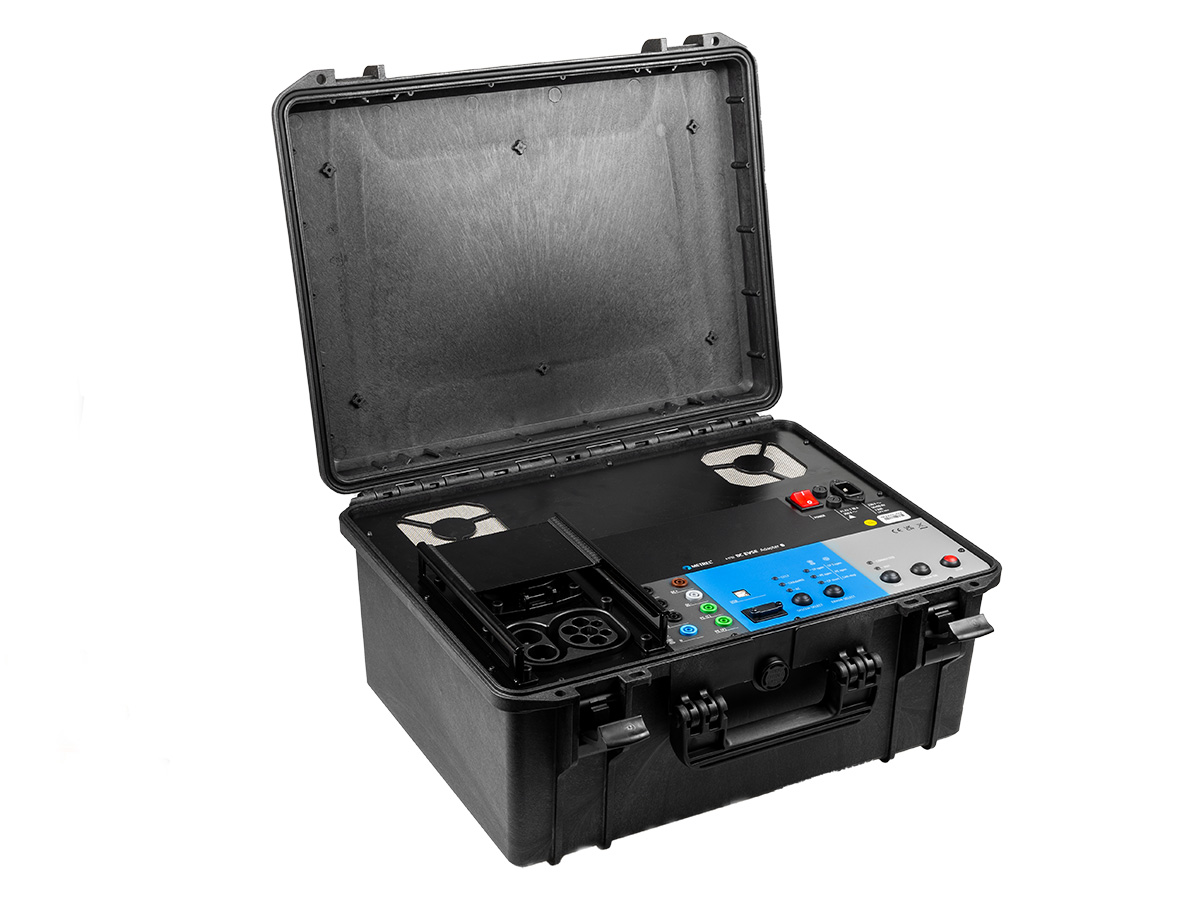

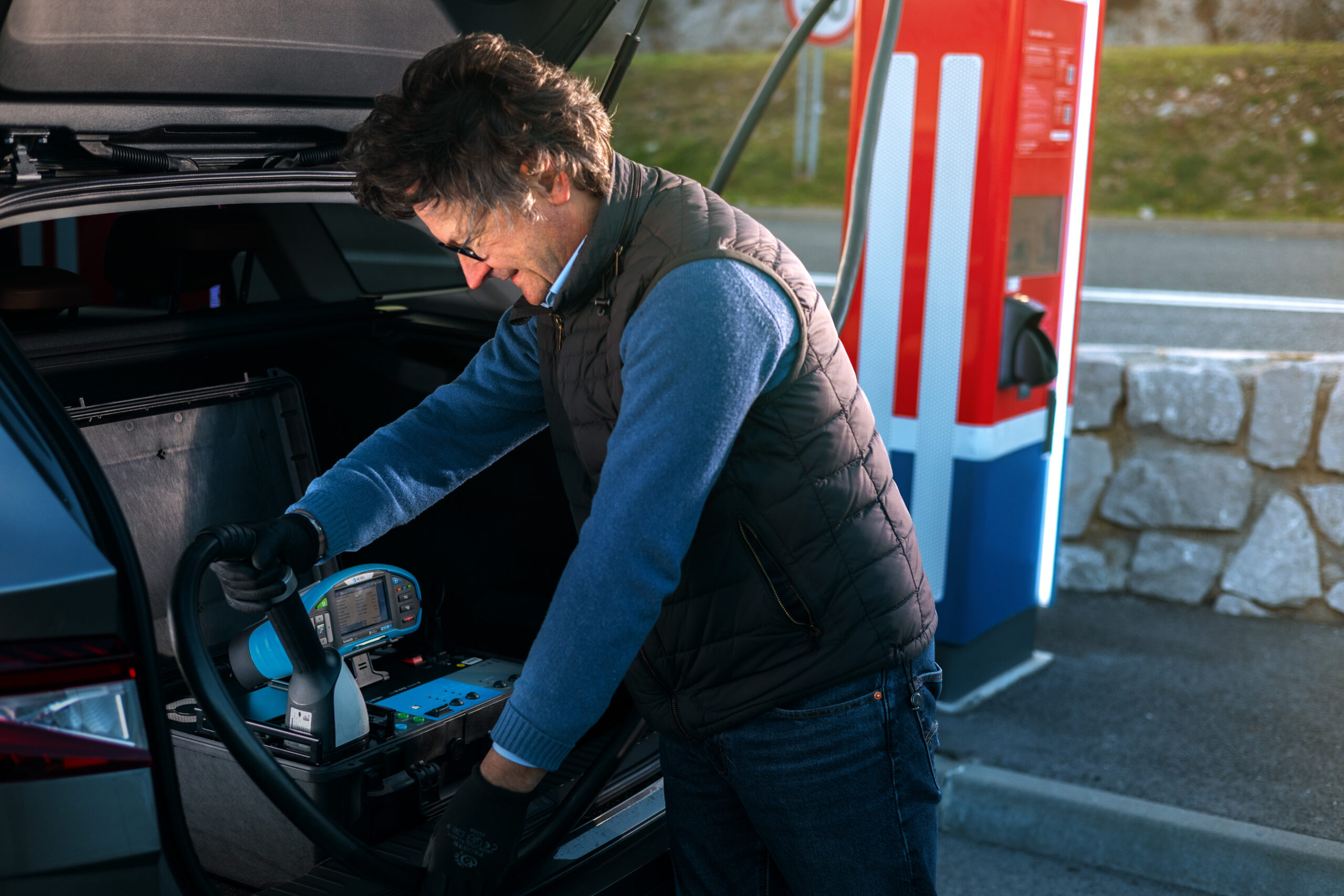

The A 1732 DC EVSE Adapter is a specialised tool designed for electrical safety and functional testing of Electric Vehicle Supply Equipment in both Mode 4 (DC EVSE) and Mode 3 (AC EVSE) configurations. It supports a range of connector types, including CCS2, CHAdeMO, and Type 2 AC plugs, making it highly versatile. The A 1732 adapter enables initiation when paired with MI 3155 of communication protocols, such as ISO 15118, DIN 70121, CHAdeMO, and Low-level PWM, and it can also simulate errors on the Control Pilot (CP) signal and Protective Earth (PE) connections to assess EVSE response. When paired with the MI 3155 XD installation tester, the A 1732 DC EVSE Adapter can be used to log the charging protocol, perform measurements and testing required for EVSE commissioning and for periodic safety testing.
Measuring functions
- Support for CCS2, CHAdeMO and AC EVSE;
- Functional test protocol for measuring voltages and current on the terminals;
- Fault simulation on CCS2 and Type 2 for CP open, PE open and CP short;
- Fault simulation on CHAdeMO for CP3 open, PE open and CAN stop;
- Banana test points for DC, AC and PE terminals;
- Double PE test terminals (PE(C) and PE(P)) for a true 4-wire Rlow measurement;
- Bluetooth communication with MI 3155 EurotestXD;
- Overvoltage category CAT III / 300 V;
- CCS ISO 15118-1 or DIN 70121 communication support;
- CHAdeMO version 0.9.1 and higher communication support;
- AC EN 61851-1 communication support;
- Simulated EV Battery of 300 V and 5 A.
