A 1532XA EVSE AC Adaptor

A 1532XA EVSE AC Adaptor

The A 1532 EVSE XA adapter is used for verification of electrical safety and functional testing of AC EVSE together with supported METREL installation testers.




Typically In stock subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.

$839.00 ex. GST

Add to Quote

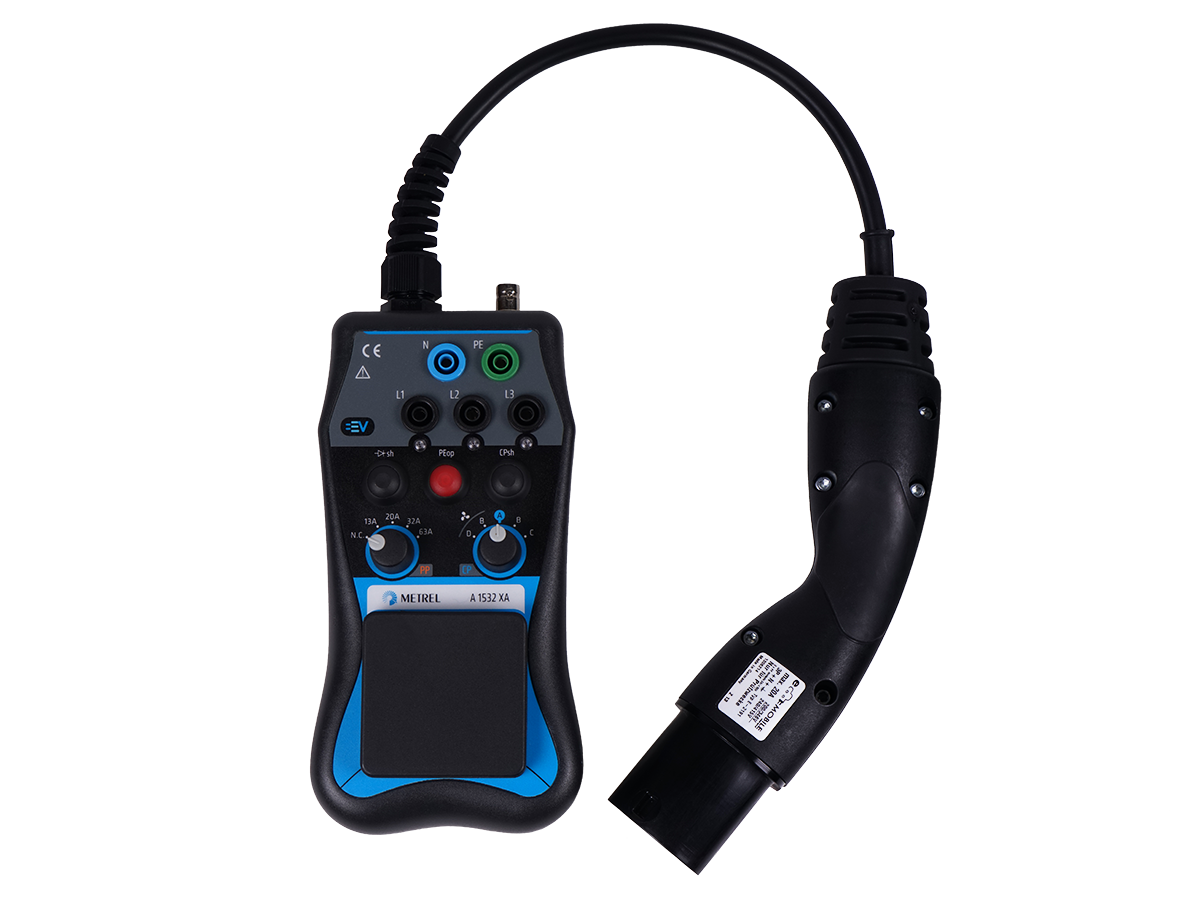

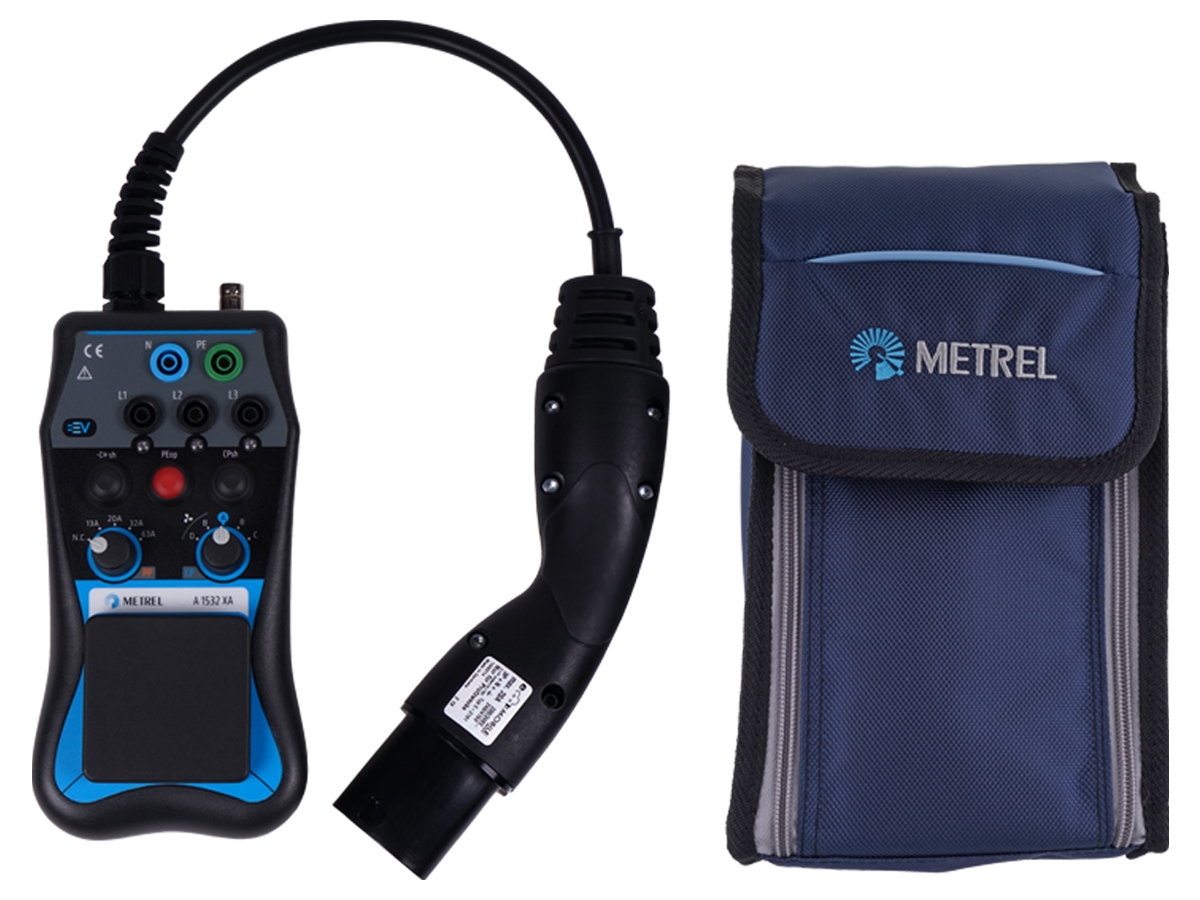

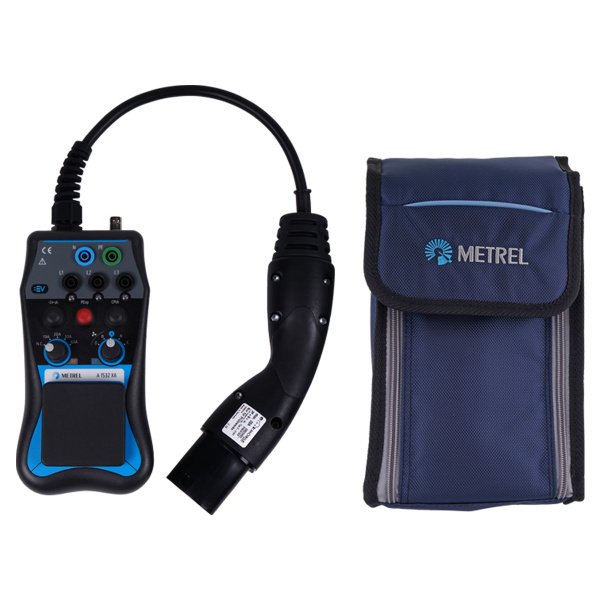

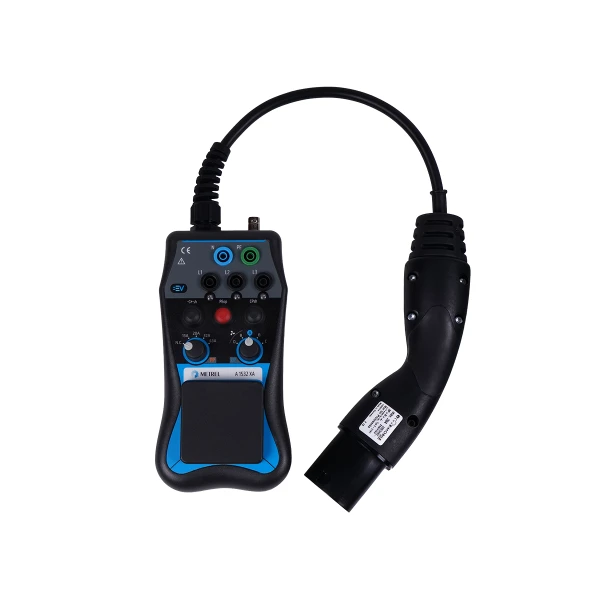

The A 1532 EVSE XA adapter is used for verification of electrical safety and functional testing of AC EVSE together with supported METREL installation testers. It is intended for testing Mode 3 EV supply equipment with a type 2 connector. XA version supports 3 phase load testing up to 13 A and different error types, including PE open. If used together with Metrel AutoSequences®, prebuilt in the newer multifunctional testers, the complete EVSE charging station can be tested (state-by-state) electrically and functionally with a push of a button. It is possible to create a professional station-based report with MESM.

  • Banana socket outputs for connection to a 3-phase installation tester;
  • Voltage indicators on EVSE output;
  • Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection;
  • Control Pilot resistance selector for simulation of electric vehicle status;
  • Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE);
  • Type 2 Male Plug connector for connection to EVSE;
  • 6 mA EV RCD support;
  • Functional tests support;*
  • EVSE AUTO SEQUENCE® support;*
  • MESM report creation;**
  • Load testing up to 13 A on socket – 1 phase or on banana sockets – 3 phase;
  • Fault simulation of Diode short, PE-CP short and PE open;
  • Output BNC connector for CP signal monitoring.

* Functional tests and AUTO SEQUENCE® are supported only on the MI 3155t XD and MI 3152 XC testers
** Report printing is only available via the MESM PC SW. The MESM license (P 1101) is to be purchased separately.

Standards applied



Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC – Equipment for testing, measuring or monitoring of protective measures – series

Mobile Units Electrical Safety

  • ISO 6469-3 – Electrically propelled road vehicles Safety specification Part 3: Electrical safety

Electrical Vehicle Supply Equipment

  • EVSE Competences: Electrical Vehicle Supply Equipment Safety
  • EVSE construction and testing
  • Vehicles with an on-board generator
  • EVSE domestic installation testing
  • EVSE periodic inspection
  • Renewable power and car charging
