MI 3202 Giga Ohm 5kV

MI 3202 Giga Ohm 5kV



Add to Quote

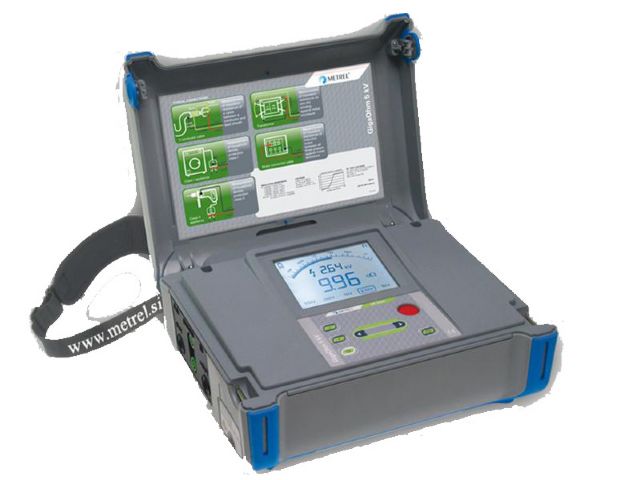

At Zedflo, we supply the MI 3202 Giga Ohm 5 kV from Metrel. It is a high voltage insulation tester provides quick and accurate testing of insulation resistance. Five test voltages up to 5 kV and 1 Tera Ohm resistance measuring range covers most of the industrial and power distribution applications. The large analogue/ digital LCD screen with backlight offers easy reading of test results. The instrument is placed in a rugged carry case which allows it to be used in harsh environments.

  • Five pre-set test voltages (250V, 500V, 1000V, 2500V and 5000V)
  • 1 Tera Ohm resistance measuring range
  • 5mA current source for quick charging of capacitive loads
  • CAT IV / 600V for industrial applications
  • LCD display with backlit for added comfort of use
  • Rugged carrying case
  • Complies with IEC/EN61557-2, EN 61326 class B, EN 61010-1 (instrument) & EN 61010-031(accessories)
