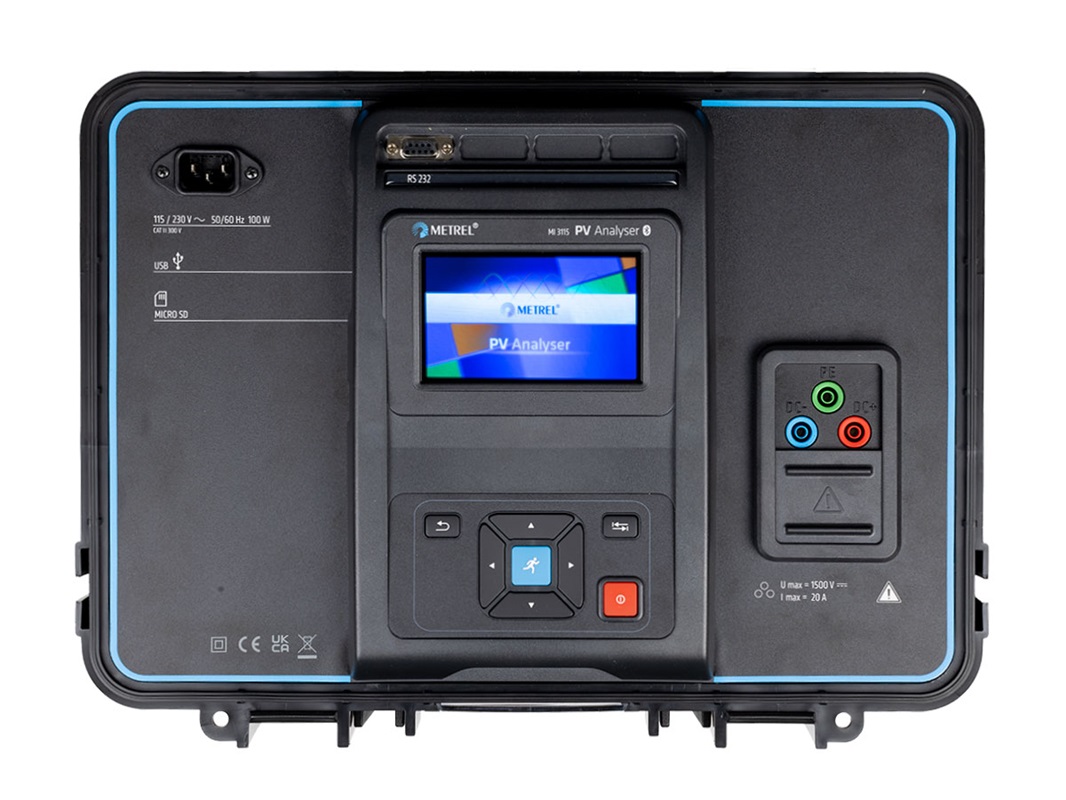

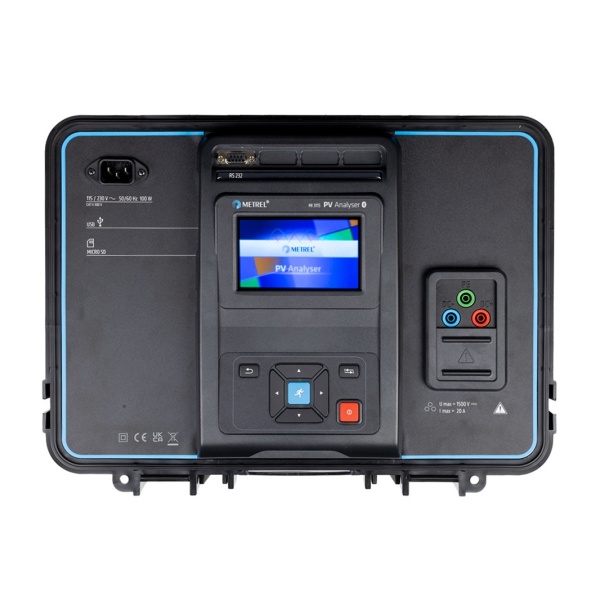

MI 3115 Photovoltaic (PV) Safety Tester

MI 3115 Photovoltaic (PV) Safety Tester

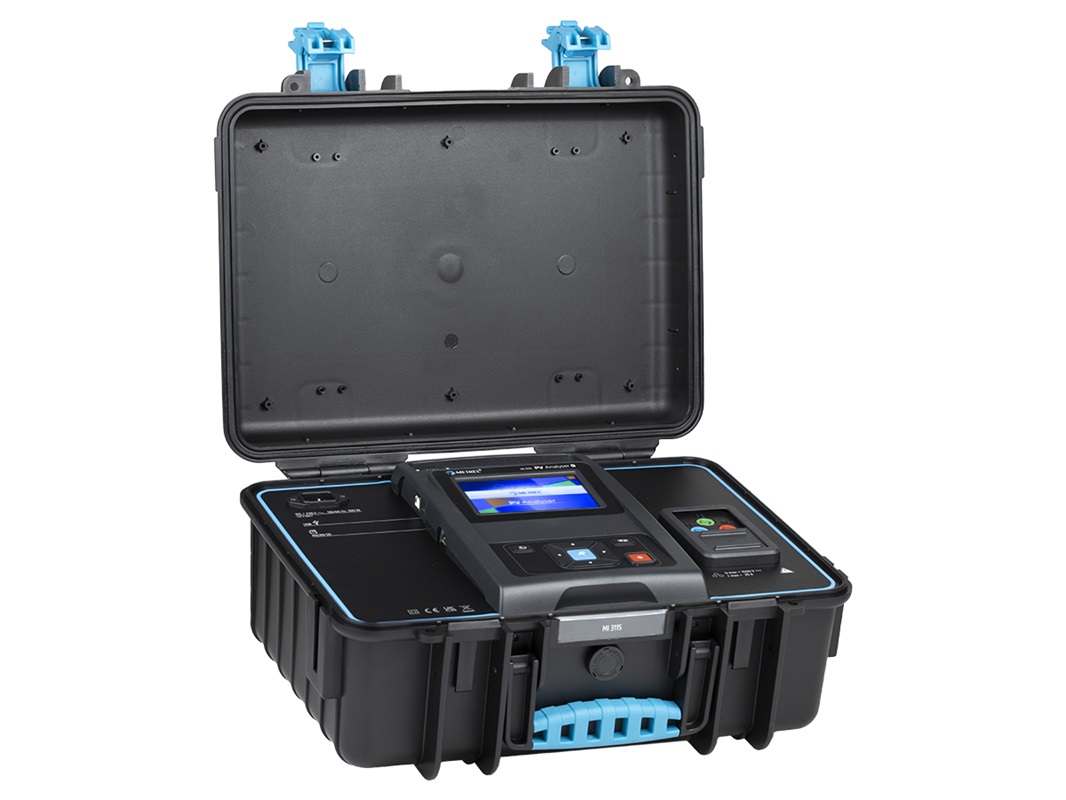

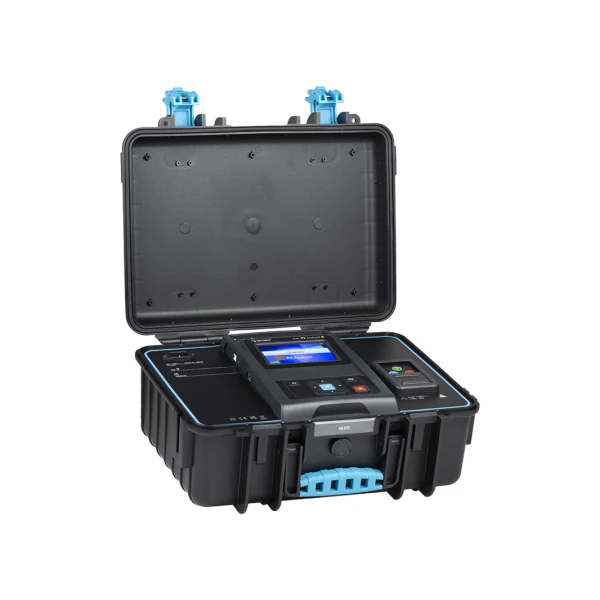

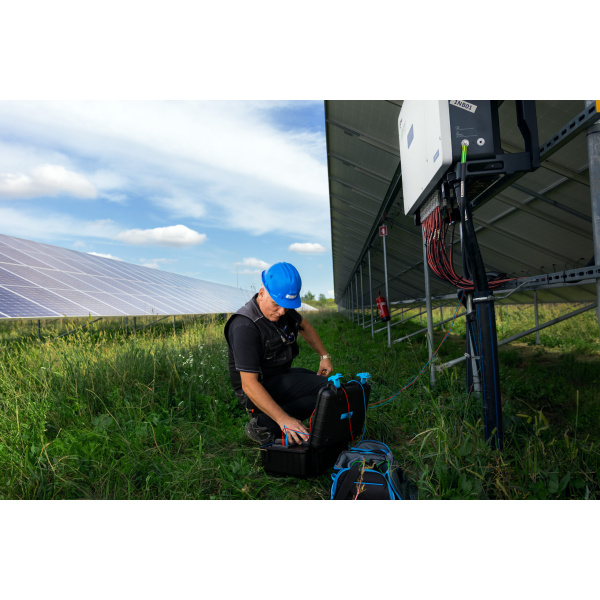

The need for testing 1500V PV systems is an ever increasing demand. The Metrel MI-3115 tests parameters and measure I/V values in systems rated to 1,500V DC/20A/24 kW. The irradiation and cell temperatures are measured in real time using the A 1785 PV Wi-Fi remote unit. The MI 3115 PV Analyser offers testing in accordance with the IEC 62446 standard and supports all category 1 and category 2 tests and measurements.


Typically In stock subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.

SKU: MI 3115

$7,995.00 ex. GST

Add to Quote

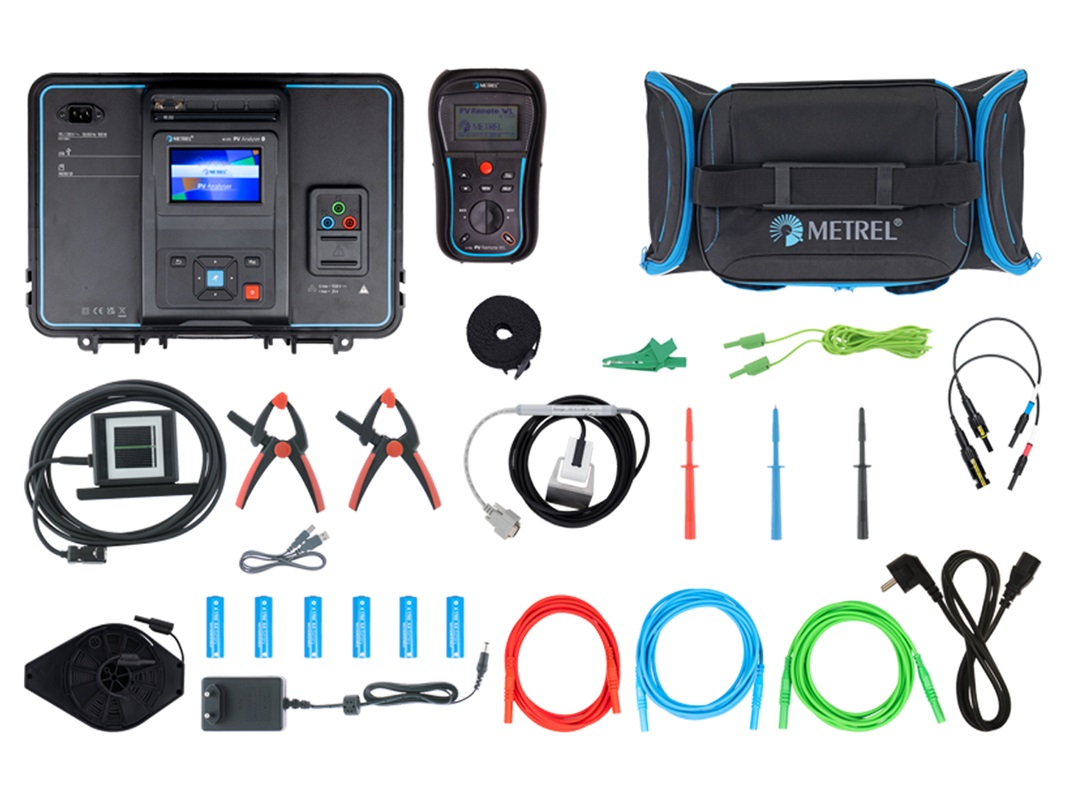

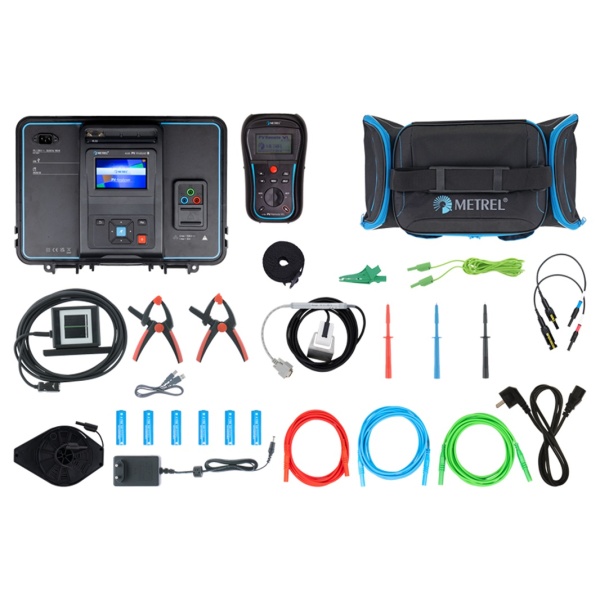

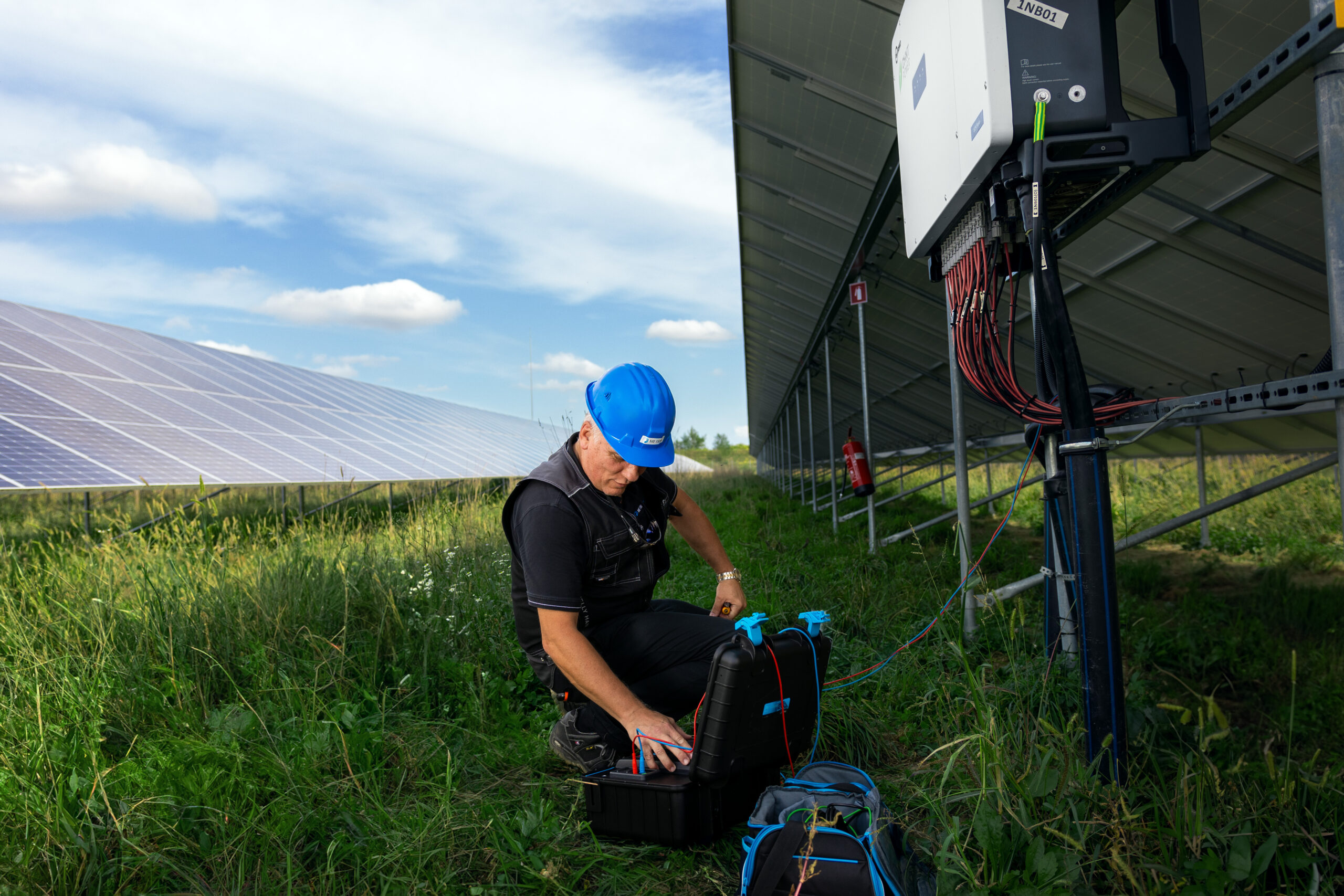

The Metrel MI 3115 solar PV tester allows technicians and engineers to test 1500 V photovoltaic systems in style. The MI 3115 PV Analyser offers testing in accordance with the IEC 62446 standard and supports all category 1 and category 2 tests and measurements. Like insulation resistance measurements of PV strings, I/V characteristic measurements, and the conversion of measured values to STC values and comparison with nominal values given by the PV modules manufacturers. The irradiation and cell temperature are measured in real time with the wireless remote unit. Additionally, category 1 tests are collected in one auto test, which enables the user to perform all the desired tests with a single touch of the start button.



Measuring functions

  • 1500 V insulation resistance of strings
  • Continuity of PE conductors
  • Polarity test
  • Isc and Voc test
  • I/V characteristics (I/V curve tracing)
  • Wireless acquisition of irradiation and temperature of PV modules
  • Insulation and I/V measurement of 1500 V PV systems in one instrument
  • Capacitive measurement method
  • Wireless (Wi-Fi) remote unit for measuring and logging of irradiation and cell temperature of PV modules
  • Auto test for Category1 tests
  • Calculation of STC values and comparison with nominal data
  • Correction of previously wrong entered parameters on already executed measurement or group of measurements
  • The instrument is controlled via a large colour touch screen display from which the user can prepare and start the selected test or measurement, store results, and review them in numerical and graphical form
  • Memory organizer, operations on single or group of measurements, search functionality
  • PV modules database handler
  • AUTOSEQUENCE
  • PC SW Metrel ES Manager enables pre-preparation of measurement structure and measurements, upload or download that structure and then reviews the results, enables advanced analysis of the I/V curve, PV modules DB explorer and generation of professional report

Standards applied



Photovoltaic systems

  • IEC/EN 62446 Photovoltaic (PV) systems – Requirements for testing, documentation and maintenance
  • EN 62466-1 Photovoltaic (PV) systems. Requirements for testing, documentation and maintenance – Part 1: Grid connected systems – Documentation, commissioning tests and inspection
  • EN 62466-2 Photovoltaic (PV) systems. Requirements for testing, documentation and maintenance – Part 2: Grid connected systems – Maintenance of PV systems

Instrument safety for user

  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 – Safety requirements for electrical equipment for measurement, control and laboratory use – Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 2-030: Particular requirements for equipment having testing or measuring circuits

EMC safety

  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use – EMC requirements – Part 1: General requirements
  • Renewable Energy Sources
  • Low Voltage Photovoltaic Systems
  • Commercial Solar Installations
