MI 3108 EurotestPV

MI 3108 EurotestPV



Add to Quote

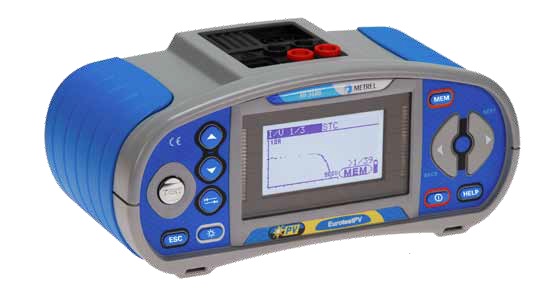

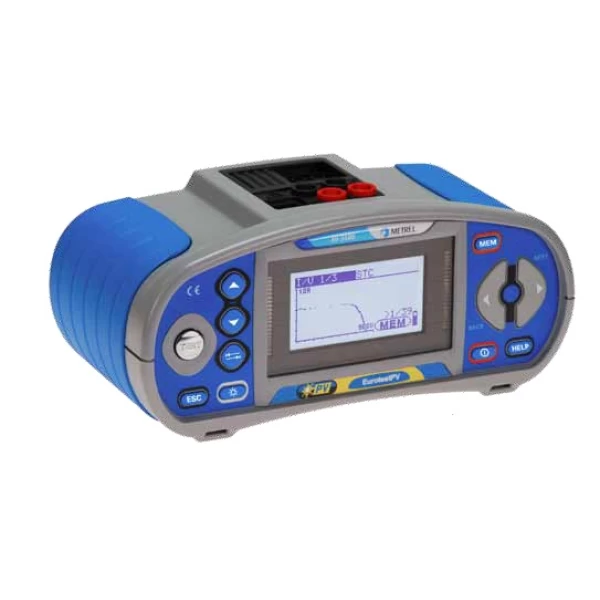

MI 3108 EurotestPV is a combined photovoltaic tester and electrical installations safety tester. It enables complete testing of electrical installations according to EN 61557 standards and in addition performs all necessary tests required on single-phase photovoltaic (PV) installations.

 Photovoltaic installations:

  • Calculation of STC values
  • Efficiency calculations
  • Graphical representation of module’s I – U curve
  • 2 voltage & 2 current channels for simultaneous AC & DC parameters measurements
  • Optional PV Remote Unit for simultaneous measurements of solar irradiation and temperature of PV module


 Electrical installations:

  • Automated RCD testing procedure
  • Support for B type RCD
  • Earth resistance measurement
  • Built-in fuse tables for automatic evaluation of the line / loop impedance results
  • Online monitoring of all 3 voltages
  • Scope function
  • Loop impedance test without tripping the RCD
  •     1-phase power and energy measurements (including harmonics up to 11th)
