Delta complete print pack

Delta complete print pack

We sell this product within Western Australia only.
As we are the Metrel importer, certain product lines have interstate dealers and agents acting as the final point of sale so customers have a local representative to provide support as required.
Interstate customers can contact us with your suburb/state and we will put you in touch with the nearest dealer.

All components are Generally available to dispatch in 1-2 business days. Contact us to confirm stock level before ordering.

SKU: ZFL-PRO-1432

$3,354.00 ex. GST

Add to Quote

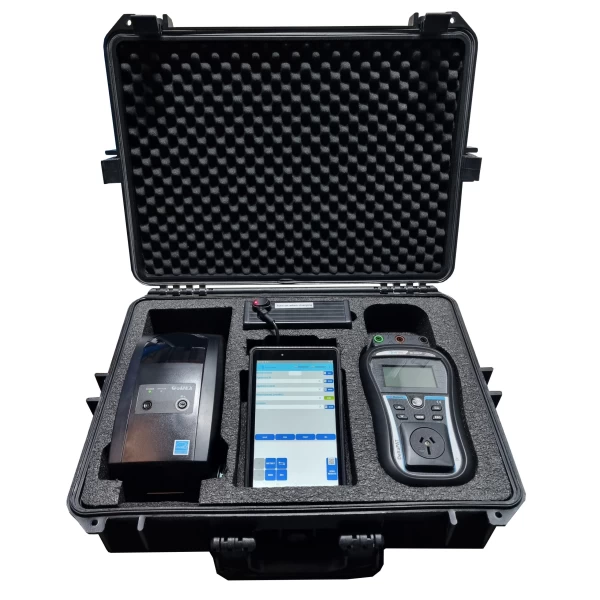

The recently updated Metrel Delta complete print pack is a complete portable appliance testing package. Integrated Bluetooth connectivity is used to connect each device (older models required external dongles). An android device is required which will run the ‘PATLink android app’, which is used as a remote controller providing an easy data entry interface to run tests, save results and instantaneously print test tags via the Godex printer. Test tags are printed complete with test and retest date, custom company logo (or just a default ‘pass’ icon) and QR code which can be scanned with the android device to automatically re-enter the test information for rapid retesting next time around.The kit also includes a rechargeable battery for the printer, meaning the whole kit is completely portable and able to run on battery power.
It is packaged in a custom-made heavy-duty carry case for portability.

KEY FEATURES

  • All the same key features of the tester itself can be found on the MI3309BT DeltaPAT page.
  • Custom heavy-duty carry case, cut to fit perfectly
  • All devices can work on either batteries or mains power
  • Metrel Delta 3309BT performs tests to AS/NZS 3760

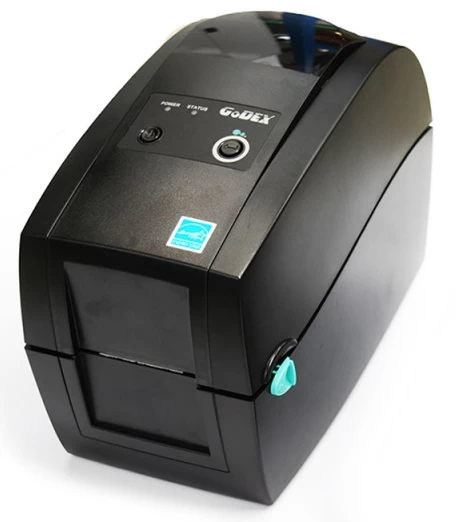

  • Godex RT200 allows printing of test tags, complete with test and retest date, company logo and QR code for rapid retesting, this is a thermal transfer printer which requires resin ribbons but does mean tags are more durable.
  • PATLink android app (license included) allows for simple control of the whole system
  • 2 year warranty on tester and printer (otherwise 1 year)
  • We are the Australian importer and Metrel’s Australian authorised repair and calibration centre, rest assured knowing we offer excellent local support and in the unlikely event you have any issues we can resolve it here in-house meaning minimal down time for our customers.

PATLINK ANDROID APP FEATURES

  • Use an android device’s on-board camera for QR code and barcode scanning for quick data entry
  • Remote control of tester and printer via the app
  • Easy data entry with full QWERTY keyboard
  • QR codes contain all information for the appliance, so scanning the code makes it simple to perform retests
  • Overview of testing parameters by scanning QR code
  • Easy control of the tester and printer from a single point.
  • Simple licensing means it’s possible to use multiple android devices per kit and no recurring license fee.
  • Simple to download and will automatically update through the Google Play™ store

PRIMARY MEASURING FUNCTIONS

  • Visual inspections
  • Functional and visual inspection
  • Earth bond resistance (200mA)
  • Insulation resistance (250V & 500V)
  • Insulation resistance via probe (250V & 500V)
  • Substitute leakage current
  • Substitute leakage current via probe
  • Differential leakage current test
  • Touch leakage test
  • RCD and PRCD testing, type (K, S)
  • Power test
  • IEC cord polarity test
  • Leakage and load currents with current clamp
  • TRMS voltage meter

Be advised, some of these videos illustrate an older variant of this kit with a 'Zebra TLP2824' printer, that printer was discontinued by Zebra and so we now use the 'Godex RT200' in this kit, other than that the same general premise still applies.
