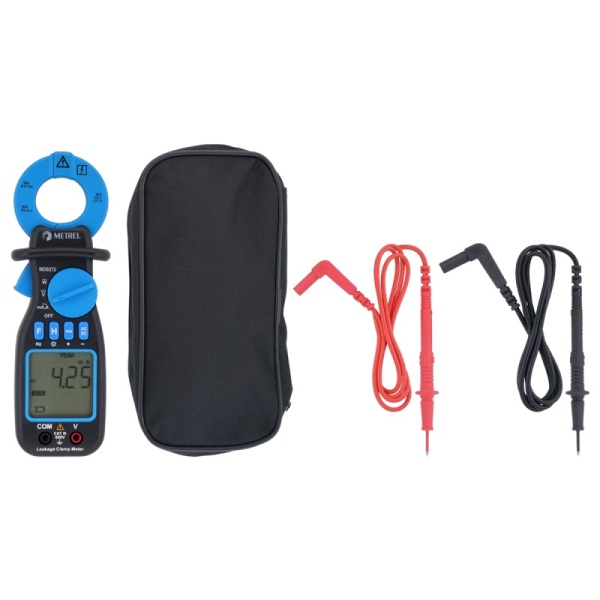

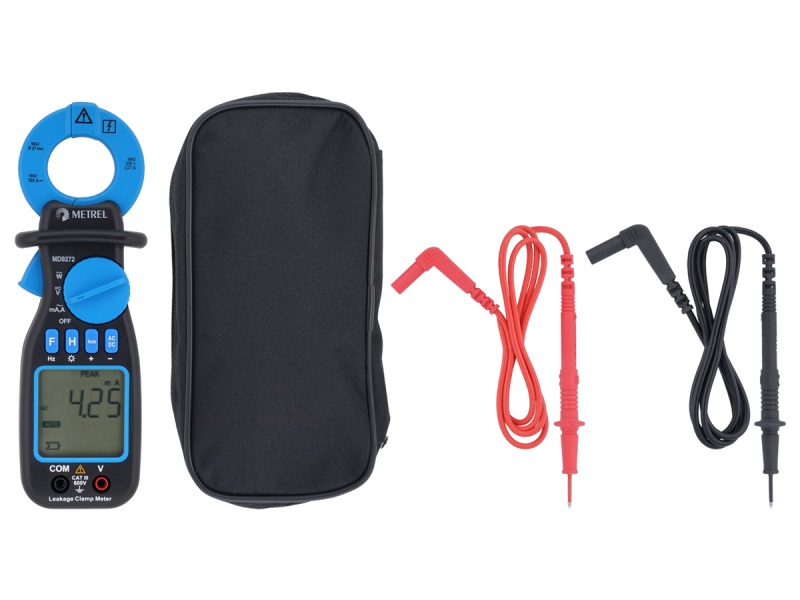

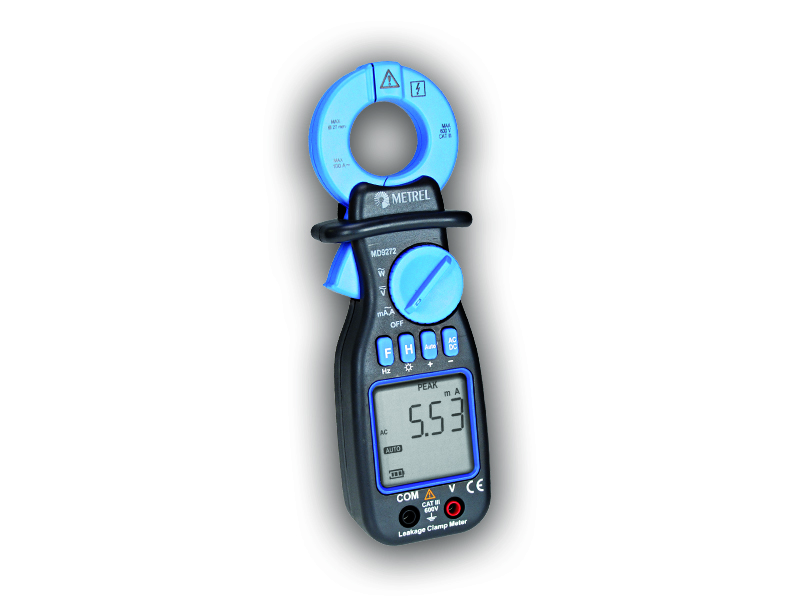

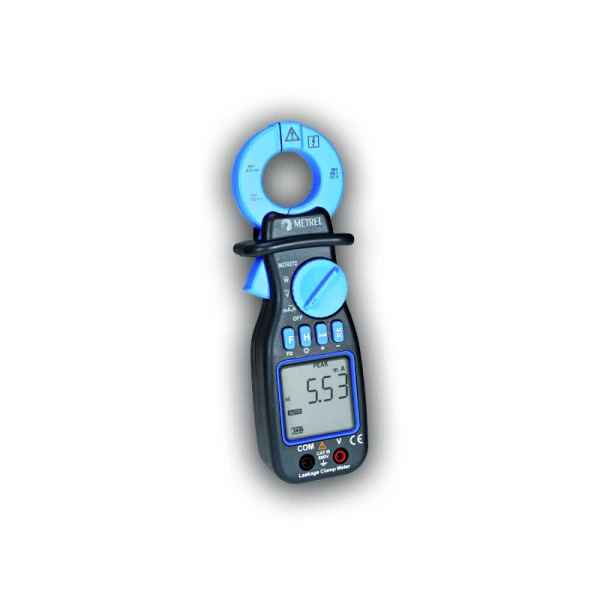

MD 9272 Leakage Clamp TRMS Meter with Power Functions

MD 9272 Leakage Clamp TRMS Meter with Power Functions

The MD 9272 is a unique earth leakage clamp meter. It has the ability to accurately read the TRMS AC leakage current of a system and can also detect losses in the system and suggest possible reasons for the loss. The voltage, power, harmonic, power factor (PF), total harmonic distortion (THD) and crest factor measurements make this instrument suitable for any electrician and engineer.


Typically special order, inquire for current price and availability
While still currently available on special order, it’s replacement MI9273 is very similar but with Bluetooth added and is typically stocked.

SKU: MD-9272

$628.00 ex. GST

Available on back-order

Add to Quote

The MD 9272 is a unique earth leakage clamp meter. It has the ability to accurately read the TRMS AC leakage current of a system and can also detect losses in the system and suggest possible reasons for the loss. The voltage, power, harmonic, power factor (PF), total harmonic distortion (THD) and crest factor measurements make this instrument suitable for any electrician and engineer.

Measuring Functions

  • TRMS AC voltage measurement
  • TRMS AC current measurement
  • Frequency measurement
  • Power parameters measurement
  • TRMS: accurate measurements on sinusoidal and non-sinusoidal signals
  • Jaw size: 28 mm
  • Shielded Jaw: shielded jaw allows the clamp meter to be used in the noisiest environments
  • Accurate: readings of AC current with an accuracy of 0.8 % and a base resolution of 0.01 mA and voltage with an accuracy of 0.5 % and a base resolution of 0.1 V
  • Power: measures various power parameters (active, reactive, apparent power, THD, PF, phase displacement)
  • Intelligent loss analysis: complex algorithms detect loss and allow determining possible reasons for current loss
  • Harmonics: measures current or voltage harmonic components and a percentage value of a harmonic up to the 19th
  • THD and PF: dual display allows readings to be displayed along with Total Harmonic Distortion (THD) or Power Factor (PF)
  • Peak value: the peak value of the waveform or crest factor can be displayed
  • MAX/MIN/HOLD mode: displays maximum, minimum or average measured value
