ADT946A Ultra High Pressure Hydraulic Hand Pump

ADT946A Ultra High Pressure Hydraulic Hand Pump

SKU: 9dd37bf425ad


Add to Quote

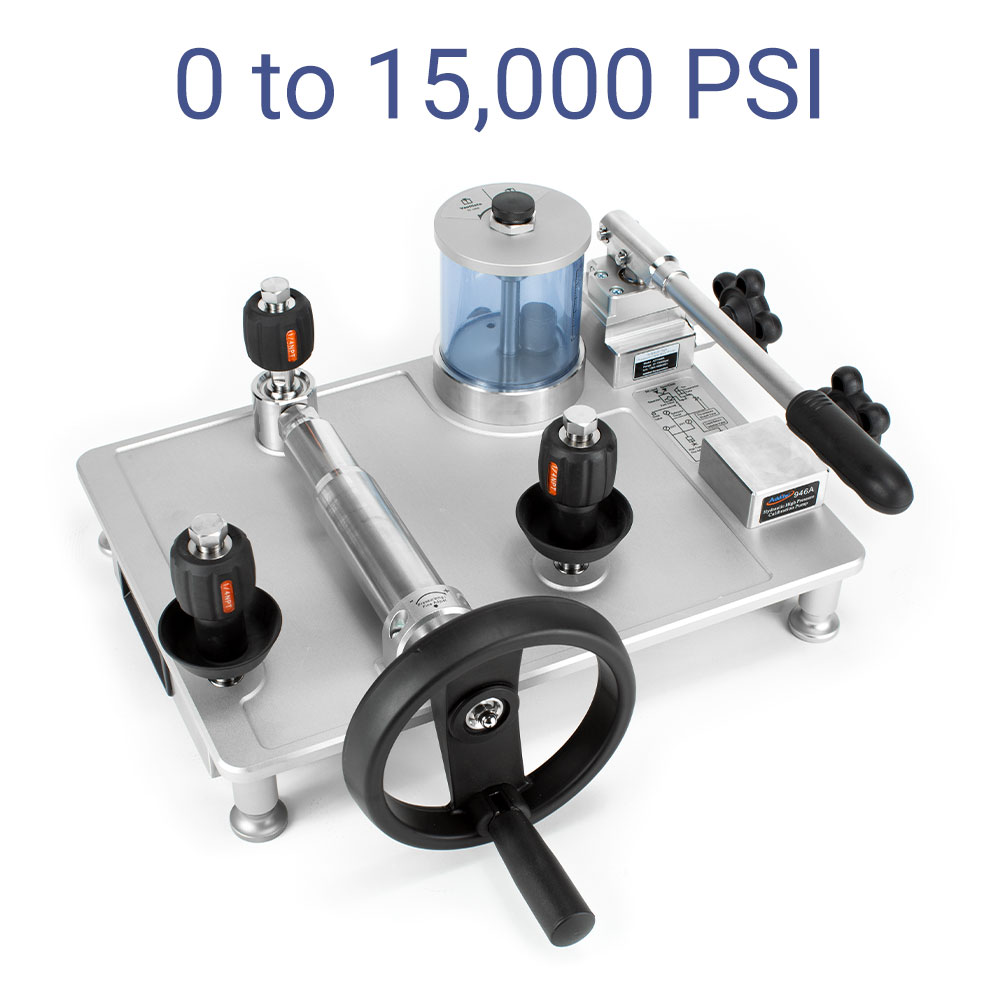

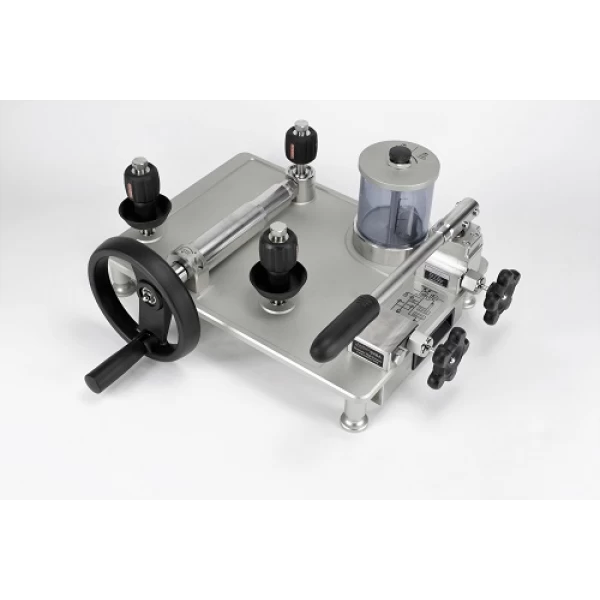

The new Additel ADT946A hydraulic hand pump is a benchtop pressure testing pump designed to generate high pressure to 100,000 kPa (1,000 bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the high pressure, fine adjust screw press. The ADT946A test pump incorporates an isolation valve which isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. Three hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT946A is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers.

Hand pump to fill large volume systems

Durable and Minimal Maintenance

Isolation valve provides stable pressures while
reducing maintenance on the hand pump check valve.


15,000 psi (1,000 bar) can be generated easily with
the dual-piston system.

Three hand-tight quick connectors

Allows easy connection and disconnection to the test
pump without the need for PTFE tape or wrenches.

  • Media: Mineral oil or deionized water. (Oil is default media liquid. Pump with water as media to be ordered as ADT946W. Pump stability is best when used with oil. Performance may decrease when used with water as the media.)
  • Reservoir capacity: 25.6 in3 (420 ml)
  • Generated Pressure Range
    0 to 15,000 psi (1,000bar) gauge pressure
  • Material: Ram/adapters: SS
    Body: SS, aluminum, Copper
    Seals: Buna-N
  • Connection
    Hand-tight connectors for both test gauge and reference gauge(s)
    1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
  • Dimensions: Height: 7.8” (200 mm)
    Base: 18.1” (460 mm) x 14.3” (365 mm)
  • Weight: 26.5 lb (12 kg).
  • Piston volume: Fine adjust piston: 0.152 in3 (2.5 ml)
  • Volume Per Stroke: 0.23 in3 (3.72 ml)
  • Warranty: 1 year
