The Additel ADT959A test calibration pump is designed to generate pressure up to 280,000 kPa (2,800 bar) for applications requiring accurate pressure testing and calibration. The hand pump enables the ADT959A to fill large volume systems. The ADT959A is a durable unit and requires minimal maintenance. The isolation valve provides stable pressures while reducing maintenance on the hand pump check valve. Pressures to 280,000 kPa (2,800 bar) can be generated easily with the dual-piston system. It can be used in calibrating pressure gauges, transmitters, or other pressure measuring instruments.

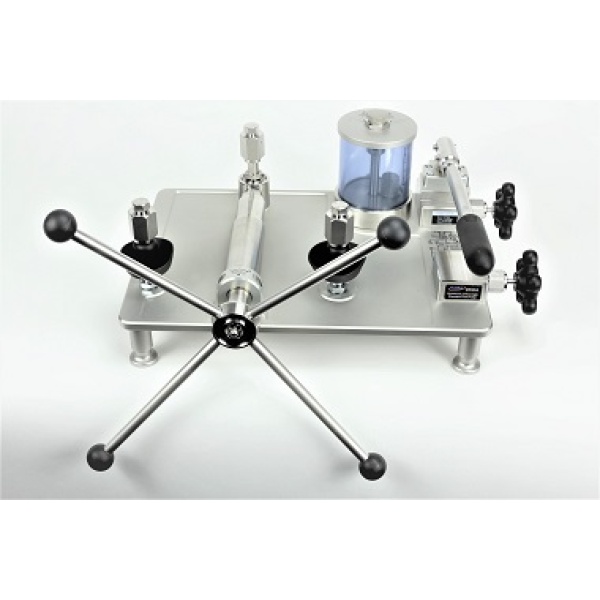

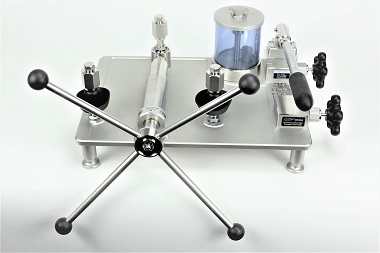

ADT959A Ultra High Pressure Hydraulic Hand Pump
ADT959A Ultra High Pressure Hydraulic Hand Pump
$0.00
Generate Ultra-high Pressure
Generate pressure up to 40,000 psi (2,800 bar)
Hand pump to fill large volume systems
Durable and Minimal Maintenance
Isolation valve provides stable pressures while
reducing maintenance on the hand pump check valve
Easy-to-use
40,000 psi (2,800 bar) can be generated easily with
the dual-piston system
- Media: Diethylhexyl Sebacate
- Pressure Range
0 to 40,000 psi (2,800 bar) gauge pressure. - Material
Ram/adapters: SS
Body: SS, aluminum, Copper
Seals: Buna-N, PTFE, Copper Alloy, Aluminum Alloy - Reservoir capacity: 25.6 in3 (420 ml)
- Connection
Test Gauge Connection: Autoclave F-250-C, 9/16″ –
18 UNF female
Reference Gauge Connection: Autoclave F-250-C,
9/16″ – 18 UNF female
1/2BSP female and M20X1.5 female connections
are available upon request - Dimensions: Height: 6.9” (175 mm)
Base: 17.9” (455 mm) x 15.0” (380 mm) - Weight: 28.7 lb (13 kg).
- Volume Per Stroke: 0.227 in3 (3.72 ml)
- Piston volume: Fine adjust piston: 0.152 in3 (2.5 ml)
- Warranty: 1 year
- Calibration equipment for laboratories
- Pressure testing
