ADT760A Automatic Handheld Pressure Calibrator

ADT760A Automatic Handheld Pressure Calibrator - Image 2

ADT760A Automatic Handheld Pressure Calibrator - Image 3

ADT760A Automatic Handheld Pressure Calibrator - Image 4

ADT760A Automatic Handheld Pressure Calibrator - Image 5

ADT760A Automatic Handheld Pressure Calibrator

Engineered to enhance workflow efficiency, the ADT760A introduces significant technical upgrades over its predecessor, including an upgraded range (375 psi), an improved touch screen, a full-capability HART field communicator, and a non-PC version option (ADT760S).

SKU: ADT760A

Model Type

Pressure Range

Accuracy

Option

Clear

Add to Quote

Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

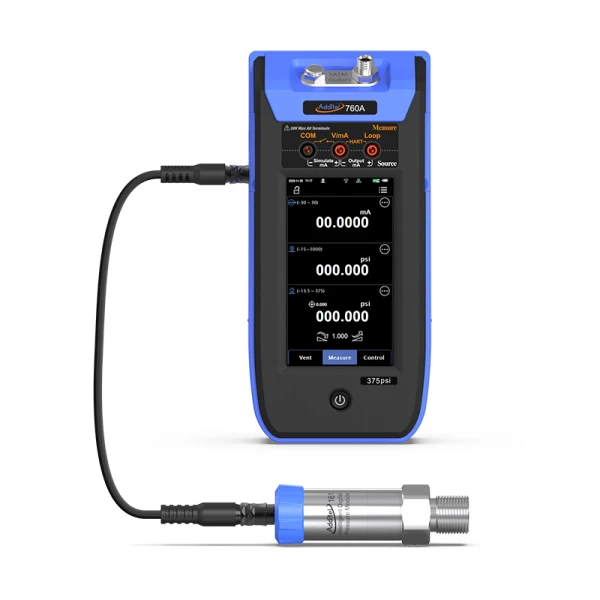

Additel’s benchmark handheld pressure calibrator (Additel 760 series), is engineered for an exceptional user experience. Now, we’ve introduced key upgrades designed to raise that standard even further with our ADT760A series. The ADT760A includes many key upgrades: Extended range to 375 psi (25 bar), provides a full HART field communicator (-DL models), support for our new contamination prevention system, updated into capacitive touch screen and an all new non-PC version (ADT760S).

All these enhancements are designed to help you work smarter, not harder. We believe the upgraded ADT760A will significantly boost your efficiency and give you time back for what matters most.

Go to non-PC Version (ADT760S)

ADT760A/760S-LLP:

The 760A/760S-LLP is designed for low pressure calibration and comes with a build-in pressure module of your choice.

ADT760A/760S-D:

The760A/760S-D gives you differential and gauge pressure but at a higher pressure range than the 760A/760S-LLP. Covering the range of -12.5 to 35 psi (-0.86 to 2.5 bar) and with an accuracy of 0.01%FS or 0.02%FS depending on the interchangeable ADT155 module used, the 760A/760S-D is an ideal solution to cover very common gauge and differential pressure measurements. The Additel 760A/760S-D comes with an internal module of your choice. The maximum range module compatible with the 760A/760S-D is to 35 psi. Lower pressure configurations down to ±10 inH2O differential can be purchased to improve accuracy at lower pressures.

ADT760A-MA:

The 760A/760S-MA generates and controls pressure from vacuum pressures up to 375 psig (25 bar.g) with an accuracy of 0.01%FS or 0.02%FS depending on the interchangeable ADT155 module used. Equipped with a built-in barometric reference, each unit can switch between gauge and absolute pressure types. A variety of internal sensors are available which offer lower pressure ranges for improved performance.
