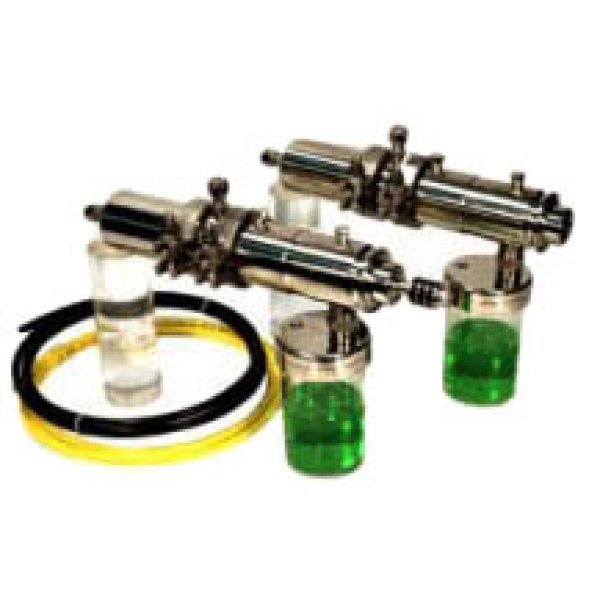

SAA Liquid & Slurry Sampler

SAA Liquid & Slurry Sampler



Add to Quote

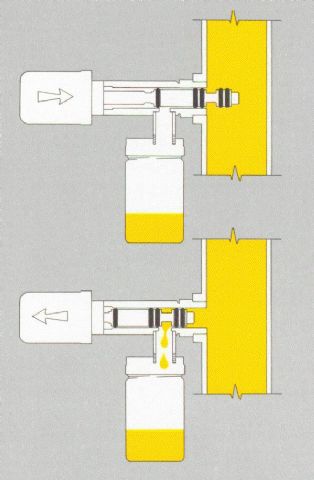

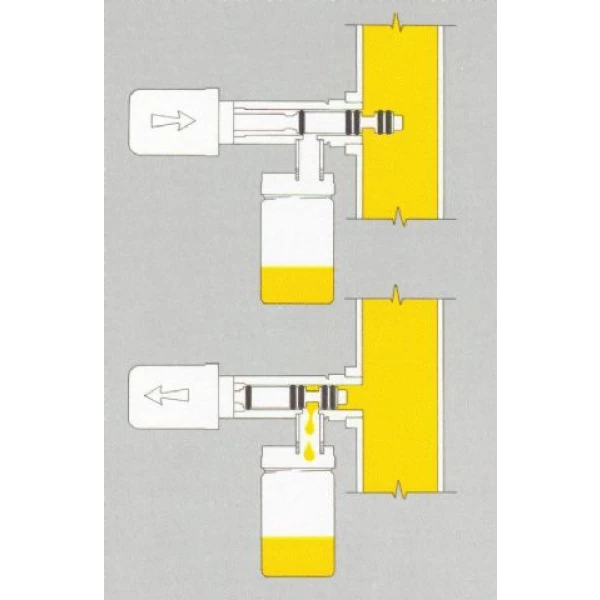

The Isolok process samplers can be used to sample almost any liquid or slurry stream by either a composite, batch or grab sample.  The design prevents exposure of the operators to any hazardous process media as collection is always isolated from process and can’t be left open.  Sample is always at atmospheric pressure.

Standard construction is 316 stainless steel, with a variety of exotic alloys and elastomeric seals available to suit almost any process stream.

  • For chemical process sampling, waste effluents, petrochemicals, mining, food and pharmaceuticals.
  • Batch or composite sampling
  • 3cc-8cc sample volume per cycle
  • Handles solids up to 9mm outside diameter
  • Rugged 316 Stainless construction
  • Abrasion-resistant elastomers available for slurry service
  • Specialized alloys and seals available on request
  • Only one moving part for sample capture
  • Minimizes fugitive emissions
  • Process pressure – vacuum to 1400 kPa
  • Process temperature: -40°C to 288°C
