ADT 917 Pneumatic Pressure Test Pump

November 01, 2019

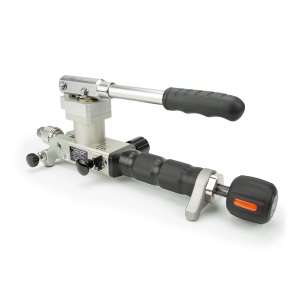

The 917 pneumatic pressure test pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 7,000kPa. A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 917 is an ideal comparison test pump for pressure instruments calibration

Out of stock


  • Portable and light weighty
  • High Resolution 10 Pa (0.1 mbar)
  • High-quality screw press for fine pressure adjustment
  • A specially designed shut-off valve stabilizes the pressure during calibration.
  • Durable and Minimal Maintenance
  • Built-in gas-liquid isolator protects the pump from moisture and dirt.
  • Easy-to-use
  • Hand-tight Quick Connectors



• Media:

• Generated Pressure Range
  95% vacuum to 1,000 psi (70 bar) positive pressure

• Adjustment Resolution:
  10 Pa (0.1 mbar).

• Material:
  Ram/adapters: SS
Body: SS/aluminum
Seals: Buna-N

• Connection:
  Hand-tight connectors for both test gauge and reference gauge.

• Test Gauge Connection:
  1/4NPT female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female , 1/4BSP female, or M20X1.5 female

• Dimensions:
  Height: 5.5” (140 mm)
Base: 12.4″ (315 mm) x 7.8″ (198 mm)

• Weight:
  5.7 lb (2.6 kg).

• Warranty:
  1 year


917_pneumatic_pressure_test_pump917&918 User Manual
