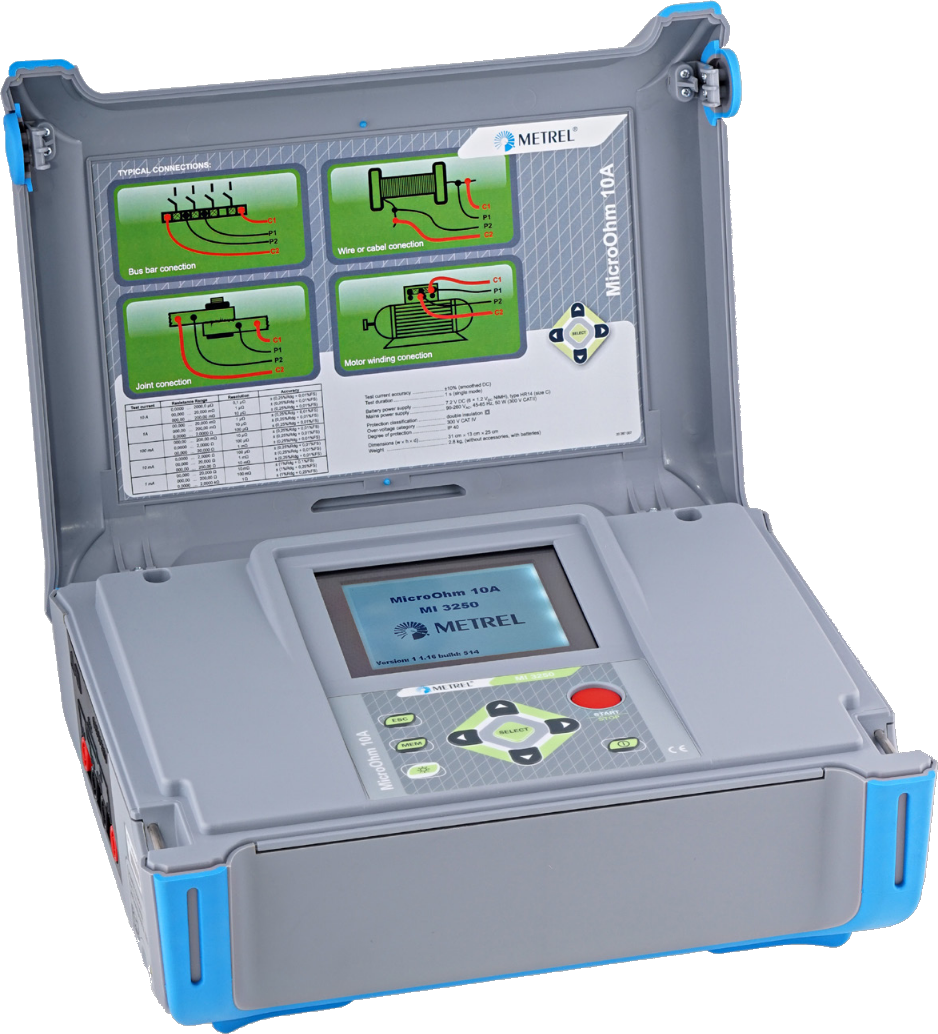

Metrel MI3250 continuity / ductor tester

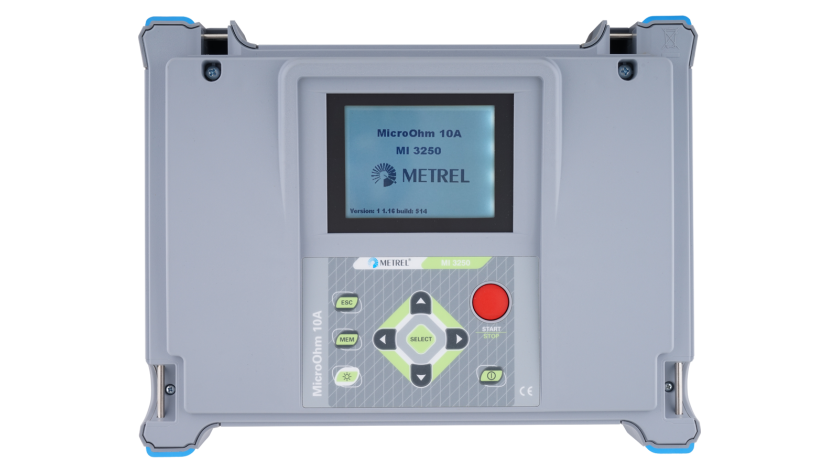

Metrel MI3250 front

MI 3250 MicroOhm 10A

The Metrel MicroOhm MI 3250 is a portable low resistance ohmmeter (continuity / ductor tester)  with a test current upto 10A. Zedflo are a Metrel authorised distributor, repair and calibration centre in Australia

Typically ‘In stock’ subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.

SKU: MI-3250

Original price was: $4,246.00.Current price is: $4,243.00. ex. GST

Add to Quote

The Metrel MI 3250 MicroOhm 10A is portable low resistance ohmmeter for measuring low resistances of breakers and switches, busbars, cable joints, small to medium sized transformer and motor windings for industrial application, etc., with test current up to 10 A. The used 4-lead Kelvin testing method together with automatic bidirectional procedure ensure very high accuracy of test results (0.25%). The instrument can be powered by mains or internal rechargeable batteries.

Test results can be stored on the instrument and with PC software HVLink PRO that is supplied as a part of standard set enables transfer of measured results to PC where they can be analysed or printed.

  • Highly efficient 10 A current source generates 10 A into 200 mΩ load for 15 min without overheating.
  • High overvoltage protection (CAT IV / 300 V) allows measurement in substations and other points with low line resistance.
  • Internal protection cicuit protects user and instrument from inadvertent connection to lines.
  • Custom limits can be set for PASS / FAIL evaluation of test result.
  • 50 Hz / 60 Hz ripple detection and rejection.
  • Instrument can be powered from mains or internal rechargeable battery. Instrument can be normally used while built-in fast battery charger charges the NiMh batteries.
  • Large 320 x 240 LCD offers easy-to-read results and all associated parameters.
  • Lightweight portable design.
  • Up to 1000 test results with timestamp can be stored in internal memory.
  • PC SW HVLink PRO enables downloading, review, analyses and printing of test results.
Function Measuring Range Resolution Accuracy Current
Resistance 1.9999 mΩ 0.1 μΩ ±(0.25 % of reading + 0.01 % FS) 10 A
19.999 mΩ 1 μΩ ±(0.25 % of reading + 0.01 % FS) 10 A/1 A
199.99 mΩ 10 μΩ ±(0.25 % of reading + 0.01 % FS) 10 A/1 A/100 mA
1.9999 Ω 100 μΩ ±(0.25 % of reading + 0.01 % FS) 1 A/100 mA/10 mA
19.999 Ω 1 mΩ ±(0.25 % of reading + 0.01 % FS) 100 mA/10 mA
19.999 Ω 10 mΩ ±(1 % of reading + 0.1 % FS) 1 mA
199.99 Ω 10 mΩ ±(0.25 % of reading + 0.01 % FS) 10 mA
199.99 Ω 100 mΩ ±(1 % of reading + 0.25 % FS) 1 mA
1.9999 kΩ 1 Ω ±(1 % of reading + 0.25 % FS) 1 mA
Power supply (mains) 90 … 260 VAC / 60 VA
Power supply (battery) 6 x 1.2 V NiMH 3500 mAh batteries, type C (included in set)
Operation > 1000 single measurements
Overvoltage category CAT IV / 300 V
Protection class Double insulation
Display 320 x 240 LCD with backlight
Communication RS232 and USB
Memory 1000 memory locations
Dimensions 310 x 130 x 250 mm
Weight 2.8 kg

Measurement the resistance of:
• Bus bar joints;
• Motor and transformer windings;
• Cables;
• Fuses;
• Aircraft frame bonds;
• Rail and pipe bonds;
• Lightning conductor bonding
