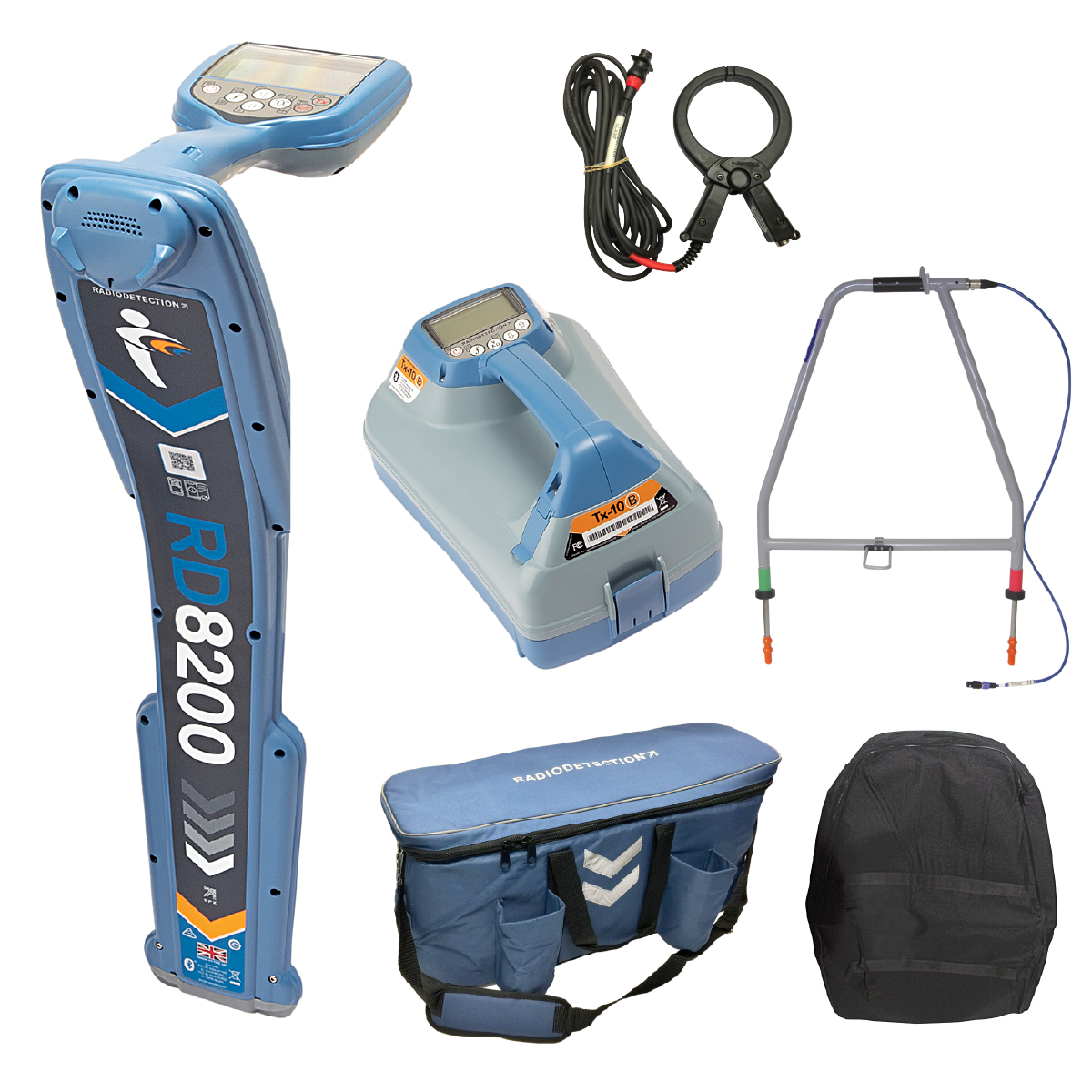

RD8200 Cable and Pipe Locator and Transmitter Kit
RD8200 Cable and Pipe Locator and Transmitter Kit - Image 2
RD8200 Cable and Pipe Locator and Transmitter Kit - Image 3
RD8200 Cable and Pipe Locator and Transmitter Kit - Image 4
RD8200 Cable and Pipe Locator and Transmitter Kit - Image 5

  • All RD8200 Locators come with 2 D-Cell Battery Tray as Standard.
  • 3 Years Warranty via Registration covered by Radiodetection Australia.
  • TX-series transmitters are FCC Compliant (include 200kHz frequency)

COMPATIBLE ACCESSORIES

RD8200 Cable and Pipe Locator and Transmitter Kit

The RD8200 range of locators and transmitters simplify the task of distinguishing and tracing utilities in congested networks, near substations or high voltage lines.

The RD8200 builds on the RD7200 platform with enhanced performance, and multi-frequency tracking, making it suitable for teams who demand high-end precision and full data traceability.

The Tx range is designed to meet the demands of tracing utilities through today’s complex underground infrastructure. The Tx-5 has a medium power and induction capability as well as Fault-Find. The Tx-10 has the highest power capability with both Fault-Find and CD modes as standard.

SKU: 10/RD8200-TX-KIT

Price range: $13,212.00 through $15,202.00 ex. GST

Add to Quote

Speed, accuracy and reliable performance

  • Easy to setup and use
  • Sun light readable display, high performance audio system
    and vibration alerts for noisy environments
  • Sensitive and accurate signal processing for reliable results

Adaptable in challenging environments

  • Ideal for congested underground infrastructures
  • Rejects strong interfering signals
  • Identify target power cable in the presence of many

Technology driven best on-site practice

  • Encourage correct locator handling for improved detection
  • Monitor field operations through the automatic usage
    logging feature
  • Proof of work to differentiate your operations from your
    competition and add value to your clients

Ergonomic design, premium quality

  • Rugged yet light weight and ergonomic
  • Designed and built to the highest standards in Great Britain
  • Self Test for confidence and trust in your locator measurements



RD8200 Locator Specifications

PERFORMANCE

Sensitivity 6E-15 Tesla
5µA at 1 meter (33kHz)
Dynamic range 140dB rms/√Hz
Selectivity 120dB/Hz
Depth measurement precision1 ± 3%
Locate accuracy ± 5% of depth
Active Locate filter bandwidth ± 3Hz, 0 < 1kHz
± 10Hz, ≥ 1kHz
Start-up time Less than a second
Maximum depth readout2 Cable / Pipe: 30m
Sonde: 19.5m

Locate Functions

Active Locate Modes Five:
Peak, Peak+™ (choice of combined Peak & Guidance or Peak & Null), Guidance, Broad Peak™, Null
Gain control Guidance Mode: Automatic
Other modes: Manual gain using “+” or “-“ with one touch to return to center (50% of Full Scale)
Custom locate frequencies Up to 5 additional frequencies in the range 50Hz to 1kHz at 1Hz resolution
Active locate frequencies 21 Frequencies:
ELF (98/128Hz), 512Hz, 570Hz, 577Hz, 640Hz, 760Hz, 870Hz, 920Hz, 940Hz, 1090Hz, 1450Hz,
4096Hz, 8kHz, 8440Hz, 9820Hz, 33kHz, 65kHz, 82kHz, 83kHz, 131kHz and 200kHz
Sonde Frequencies 4 Frequencies:
512Hz, 640Hz, 8kHz and 33kHz
Active Locate filter bandwidth ± 3Hz, 0 < 1kHz
± 10Hz, ≥ 1kHz

Physical Characteristics

Weight With Lithium-Ion battery pack fitted: 1.8kg

With D-cell alkaline batteries fitted: 1.9kg
Ingress Protection Rating IP65
Protected against dust ingress and jets of water3 applied from any direction
Operating temperature4 -20°C to 50°C
Unit dimensions 648mm × 286mm × 125mm

Transmitter Specifications

Performance

Specification TX-10 and TX-10B
Max power output 10W
Max voltage output 90V
Max current output 0.5A
Induction field strength 1

Transmitter Enhancements

Current Direction (CD) Provides current direction (CD) signals to enable the locator to differentiate individual utilities.
iLOC remote control iLOC is an advanced Bluetooth® link between the RD8200 locator and transmitter, which allows you to control the locate signal’s power and frequency from up to 450m away.  Less time walking and more time locating.
SideStep® (Tx-10B only) Shifts the locate and transmitter frequency by several Hz, out of the bandwidth of other locate signals that may be interfering with the locate.
SideStepauto™ Automatically selects the best frequency to use based on the load impedance (works only in direct connect mode).
Fault Find Enables the use of an accessory A-Frame with a compatible locator to detect and pinpoint pipe’s coating and insulation faults and cable’s sheath fault.
Boost Sets the transmitters to output its maximum output power indefinitely or for a predefined period of time.
Maximum Voltage Selection Allows the user to increase the voltage, and the current, output to a maximum of 90 Vrms.
Ingress Protection IP65 – Shock resistant, ingress protected casing protects against knocks, drops, water and dust.
Lithium Ion battery pack option Deliver extended run-time, lighter weight and superior cold-weather performance by comparison to standard alkaline batteries.

No need for operators to replace, manage and recycle alkaline battery cells, reducing the associated costs, workload and environmental burden.
Automatic impedance matching Transmit your locate signal as far as possible by automatically matching the transmitter impedance to that of your target cable.
Eco Mode Automatically reduces the output power to allow full depletion of the alkaline batteries. An audio and visual warning provides user feedback (only available with alkaline batteries).
Power Selector Restricts the power output of the transmitter to a predefined level.
Automatic overvoltage protection system In the event of an erroneous direct connection to a high voltage line (up to 250V), a warning symbol is displayed advising the operator to take action.

All specifications are measured in test conditions, at 21°C, and fitted with 2 × good quality alkaline batteries unless otherwise noted.
1 Based on volumetric testing at a known fixed depth. True depth accuracy depends on factors such as ground composition, utility characteristics and the locate frequency / signal strength employed. Always follow local safe digging guidelines.
2 The RD7200 will locate to greater depths in the right conditions, but depth accuracy will be compromised. Depth measurement will not be displayed beyond these depths.
3 Water projected by a nozzle at a pressure of 30kPa /0.3 bar / 4.4 psi in accordance with BS EN 60529 1992 A2 2013.
4 At very low temperatures, battery life will be degraded and measurement precision may be reduced.

Construction

Accurate and simple to use, the RD8200 comes with twenty one active and four passive frequencies (Power, Radio, CPS and CATV) that cover the majority of site locating tasks. A rugged, IP65 rated casing along with a high contrast screen make it suitable for use in all weather conditions.

Power

Current Direction, track the right line
Identify your target amongst a number of parallel utilities by applying a specialized CD signal from a Tx-10 transmitter. CD arrows displayed on the locator confirm you are tracing your target line.

Power Filters™, works where other locators won’t
When a transmitter can’t be connected, tracing individual power lines through dense networks can be a real challenge. Conflicting or powerful signals confuse or combine to create a wash of signal.

A single key press enables the use of the harmonic properties of power signals to establish if a signal comes from one source, or from multiple cables which you can then trace and mark.

Dynamic Overload Protection, rejects unwanted interference
Automatically filters out interference, enabling use in electrically noisy environments such as near substations or overhead power lines.

Water and Pipeline

A wide choice of active frequencies allow conductive pipes to be traced for long distances. Where sondes or cameras are used to survey pipes made from a variety of materials, including cast iron, clay, fibre, concrete and brick, the four RD8200 sonde frequencies are ideal for quickly locating and tracing their position.

Pipes with Cathodic Protection System can be followed using the CPS passive mode. CPS compass mode ensures alignment with the target pipeline.

Telecom

Program up to 5 extra frequencies to customize the RD8200 to signals found on your network. The RD8200 features higher frequencies to locate high impedance lines and sonde frequencies for duct and conduit tracing. Higher frequencies can also be used to trace sheathed domestic cables without grounding connections.

Cable sheath faults can be located to within 10 cm using 8 kHz Fault Find mode with a Radiodetection A-Frame

 RD7200 locator in use

RD7200 locator application example
