Locate and map buried utilities in a single operation.

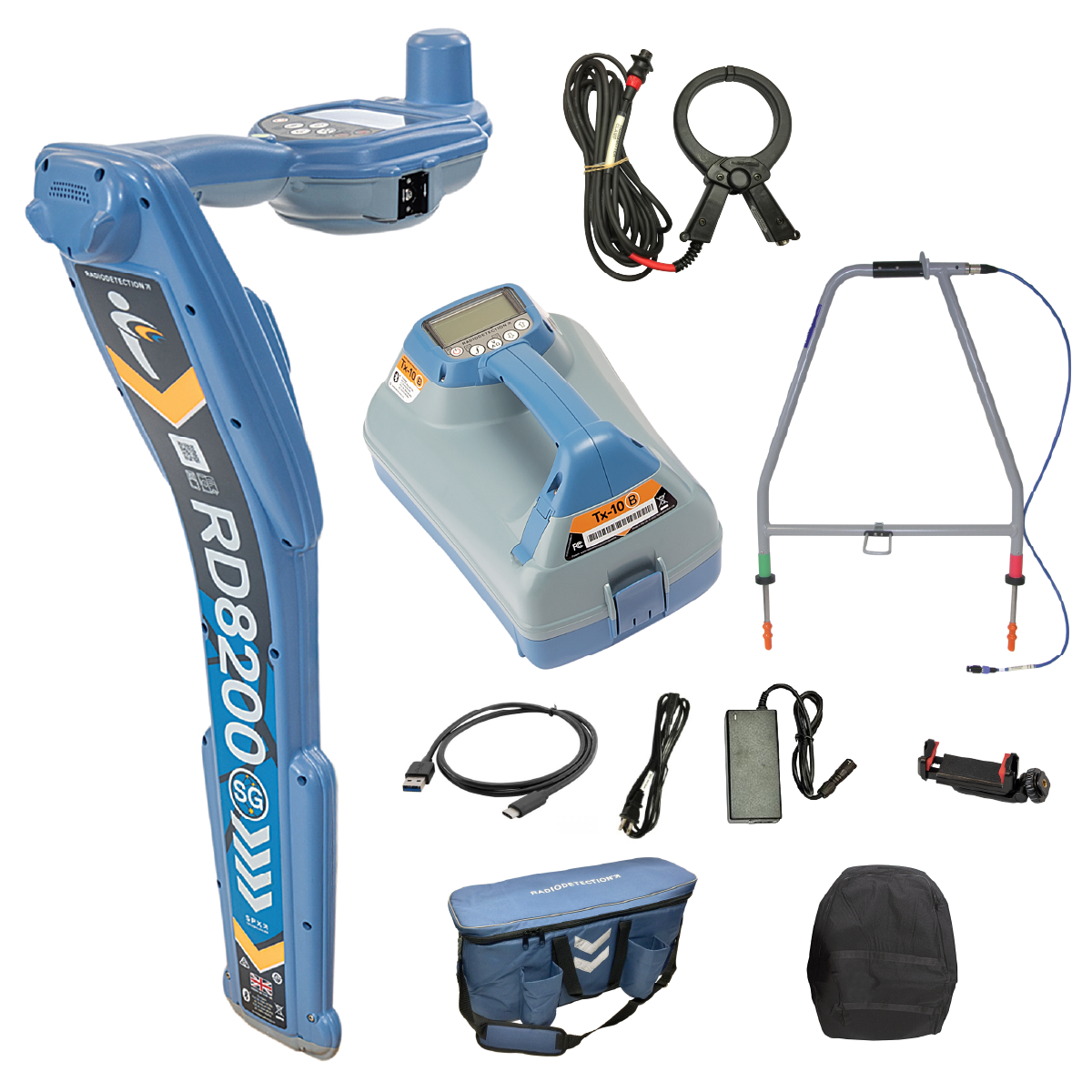

The RD8200SG is Radiodetection’s most advanced, combined mapping and utility locating solution that enables users to map buried utilities with survey grade accuracy.
The Tx range is designed to meet the demands of tracing utilities through today’s complex underground infrastructure. The Tx-10 has the highest power capability with both Fault-Find and CD modes as standard.
Price range: $20,842.00 through $22,832.00 ex. GST
Map while you locate
Flexibility to work with the system that works for your business
|
 |
Already a mapping expert?Integrate utility locating into your mapping procedures.
Already a Locating Expert?
|
 |
| Sensitivity | 6E-15 Tesla 5µA at 1 meter (33kHz) |
| Dynamic range | 140dB rms/√Hz |
| Selectivity | 120dB/Hz |
| Depth measurement precision1 | ± 3% |
| Locate accuracy | ± 5% of depth |
| Active Locate filter bandwidth | ± 3Hz, 0 < 1kHz ± 10Hz, ≥ 1kHz |
| Start-up time | Less than two and a half seconds |
| Maximum depth readout2 | Cable / Pipe: 30m Sonde: 19.5m |
| Convergence time RTK | < 10 sec |
| Position accuracy RTK | 0.01m + 1ppm CEP |
| Active Locate Modes | Five: Peak, Peak+™ (choice of combined Peak & Guidance or Peak & Null), Guidance, Broad Peak™, Null |
| Gain control | Guidance Mode: Automatic Other modes: Manual gain using “+” or “-“ with one touch to return to center (50% of Full Scale) |
| Custom locate frequencies | Up to 5 additional frequencies in the range 50Hz to 1kHz at 1Hz resolution |
| Active locate frequencies | 21 Frequencies: ELF (98/128Hz), 512Hz, 570Hz, 577Hz, 640Hz, 760Hz, 870Hz, 920Hz, 940Hz, 1090Hz, 1450Hz, 4096Hz, 8kHz, 8440Hz, 9820Hz, 33kHz, 65kHz, 82kHz, 83kHz, 131kHz and 200kHz |
| Sonde Frequencies | 4 Frequencies: 512Hz, 640Hz, 8kHz and 33kHz |
| Weight | With Lithium-Ion battery pack fitted: 2.4kg |
| Ingress Protection Rating | IP65 Protected against dust ingress and jets of water3 applied from any direction |
| Operating temperature4 | -20°C to 50°C |
| Unit dimensions | 687mm x 350mm x 137mm |
| Specification | TX-10 and TX-10B |
| Max power output | 10W |
| Max voltage output | 90V |
| Max current output | 0.5A |
| Induction field strength | 1 |
| Current Direction (CD) | Provides current direction (CD) signals to enable the locator to differentiate individual utilities. |
| iLOC remote control | iLOC is an advanced Bluetooth® link between the RD8200 locator and transmitter, which allows you to control the locate signal’s power and frequency from up to 450m away. Less time walking and more time locating. |
| SideStep® (Tx-10B only) | Shifts the locate and transmitter frequency by several Hz, out of the bandwidth of other locate signals that may be interfering with the locate. |
| SideStepauto™ | Automatically selects the best frequency to use based on the load impedance (works only in direct connect mode). |
| Fault Find | Enables the use of an accessory A-Frame with a compatible locator to detect and pinpoint pipe’s coating and insulation faults and cable’s sheath fault. |
| Boost | Sets the transmitters to output its maximum output power indefinitely or for a predefined period of time. |
| Maximum Voltage Selection | Allows the user to increase the voltage, and the current, output to a maximum of 90 Vrms. |
| Ingress Protection | IP65 – Shock resistant, ingress protected casing protects against knocks, drops, water and dust. |
| Lithium Ion battery pack option | Deliver extended run-time, lighter weight and superior cold-weather performance by comparison to standard alkaline batteries.
No need for operators to replace, manage and recycle alkaline battery cells, reducing the associated costs, workload and environmental burden. |
| Automatic impedance matching | Transmit your locate signal as far as possible by automatically matching the transmitter impedance to that of your target cable. |
| Eco Mode | Automatically reduces the output power to allow full depletion of the alkaline batteries. An audio and visual warning provides user feedback (only available with alkaline batteries). |
| Power Selector | Restricts the power output of the transmitter to a predefined level. |
| Automatic overvoltage protection system | In the event of an erroneous direct connection to a high voltage line (up to 250V), a warning symbol is displayed advising the operator to take action. |
All specifications are measured in test conditions, at 21°C, and fitted with 2 × good quality alkaline batteries unless otherwise noted.
1 Based on volumetric testing at a known fixed depth. True depth accuracy depends on factors such as ground composition, utility characteristics and the locate frequency / signal strength employed. Always follow local safe digging guidelines.
2 The RD7200 will locate to greater depths in the right conditions, but depth accuracy will be compromised. Depth measurement will not be displayed beyond these depths.
3 Water projected by a nozzle at a pressure of 30kPa /0.3 bar / 4.4 psi in accordance with BS EN 60529 1992 A2 2013.
4 At very low temperatures, battery life will be degraded and measurement precision may be reduced.
ConstructionAccurate and simple to use, the RD8200SG comes with twenty one active and four passive frequencies (Power, Radio, CPS and CATV) that cover the majority of site locating tasks. A rugged, IP65 rated casing along with a high contrast screen make it suitable for use in all weather conditions.
