MI 3116 Photovoltaic (PV) Safety Tester – 40A

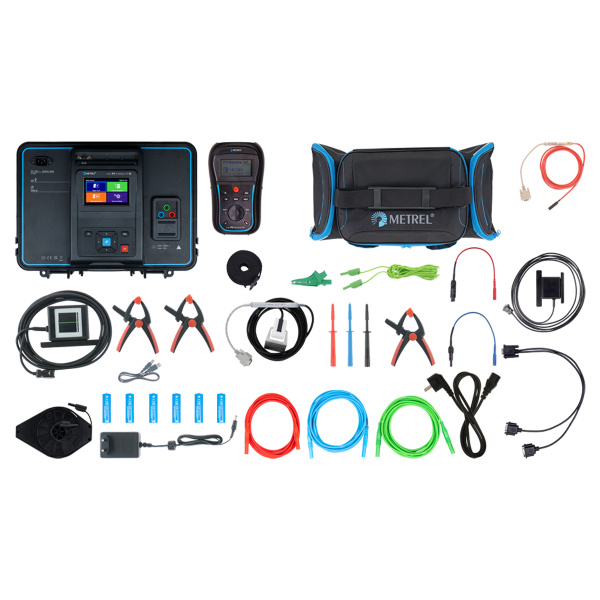

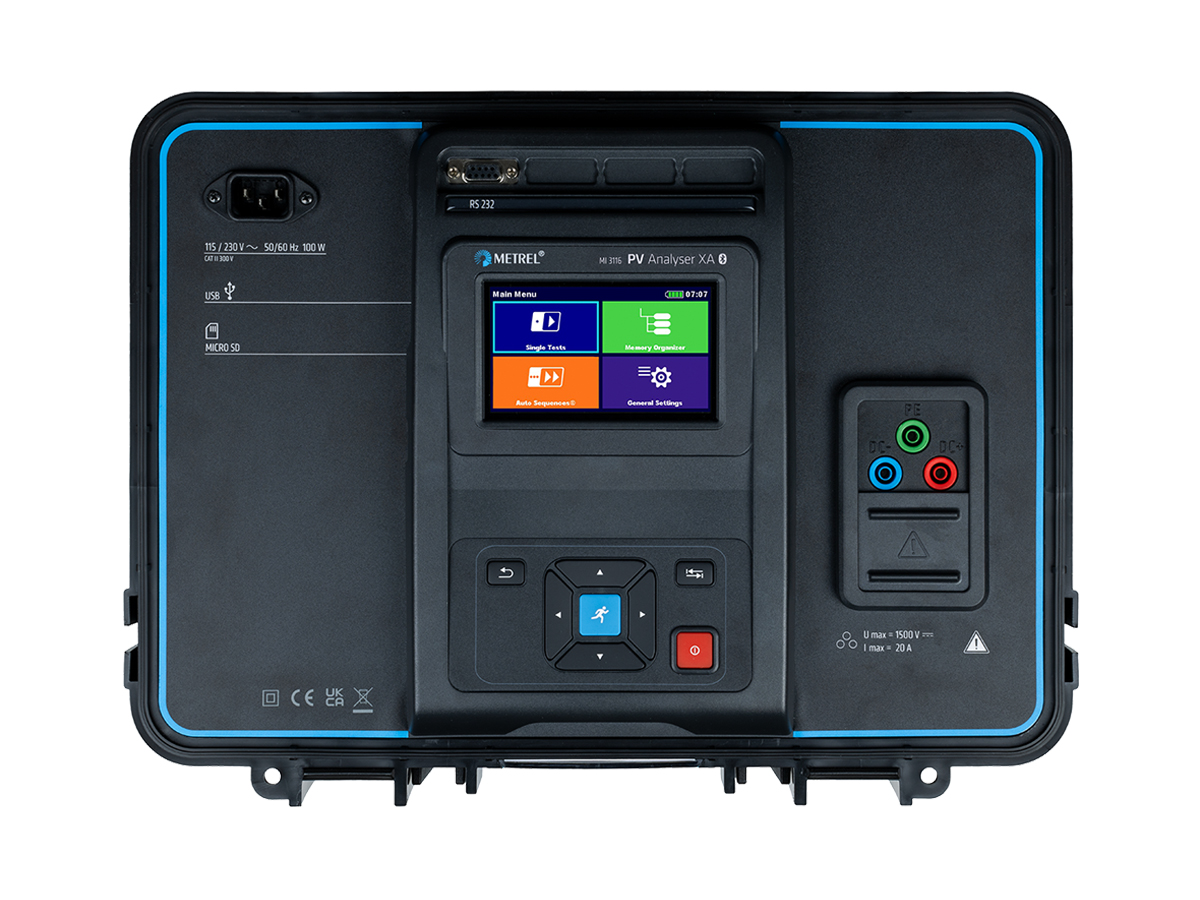

The need for testing 1500V PV systems is an ever increasing demand. The Metrel MI-3116 tests parameters and measure I/V values in systems rated to 1,500V DC/40 A/48 kW. The irradiation and cell temperatures are measured in real time using the A 1785 PV Wi-Fi remote unit. The MI 3116 PV Analyser offers testing in accordance with the IEC 62446 standard and supports all category 1 and category 2 tests and measurements.

Typically ‘In stock’ subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.

SKU: N/A

$10,545.00 – $11,395.00 ex. GST

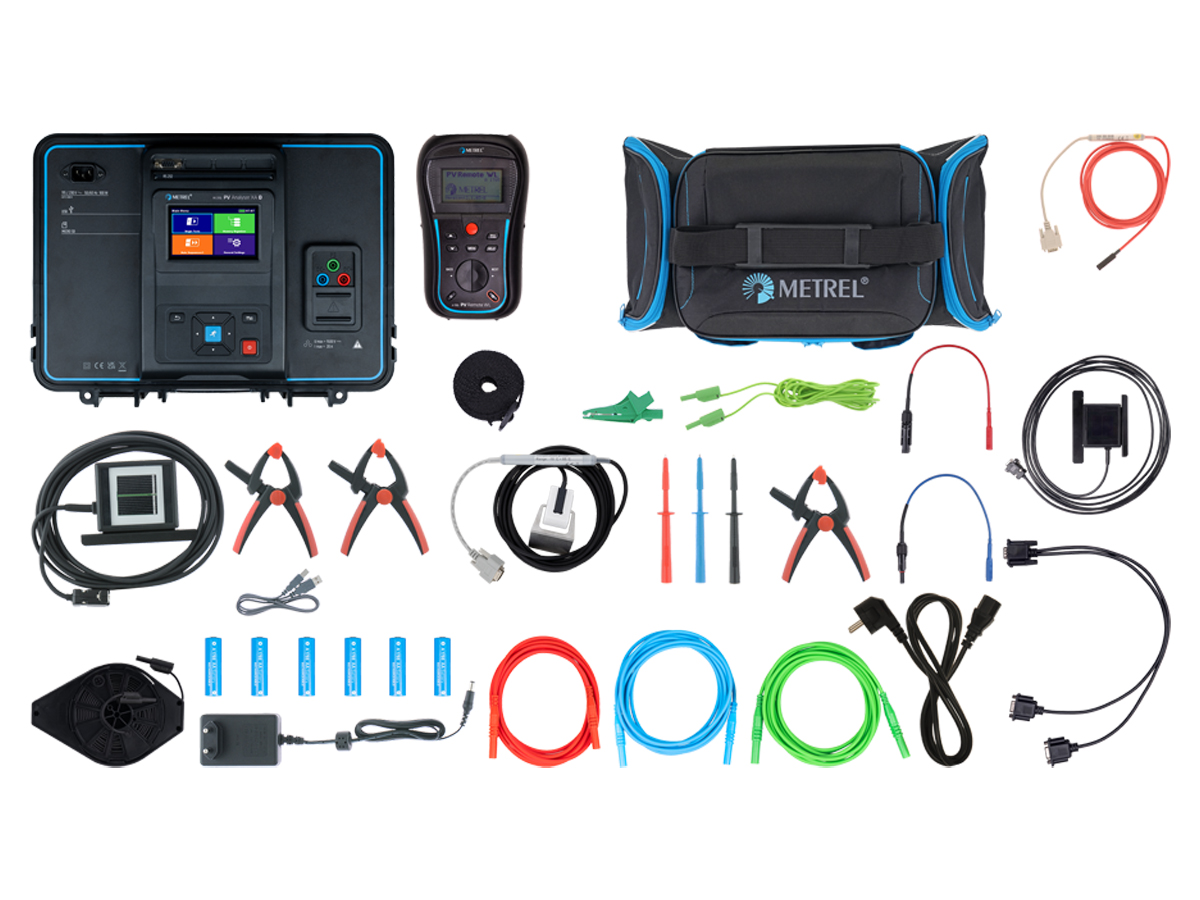

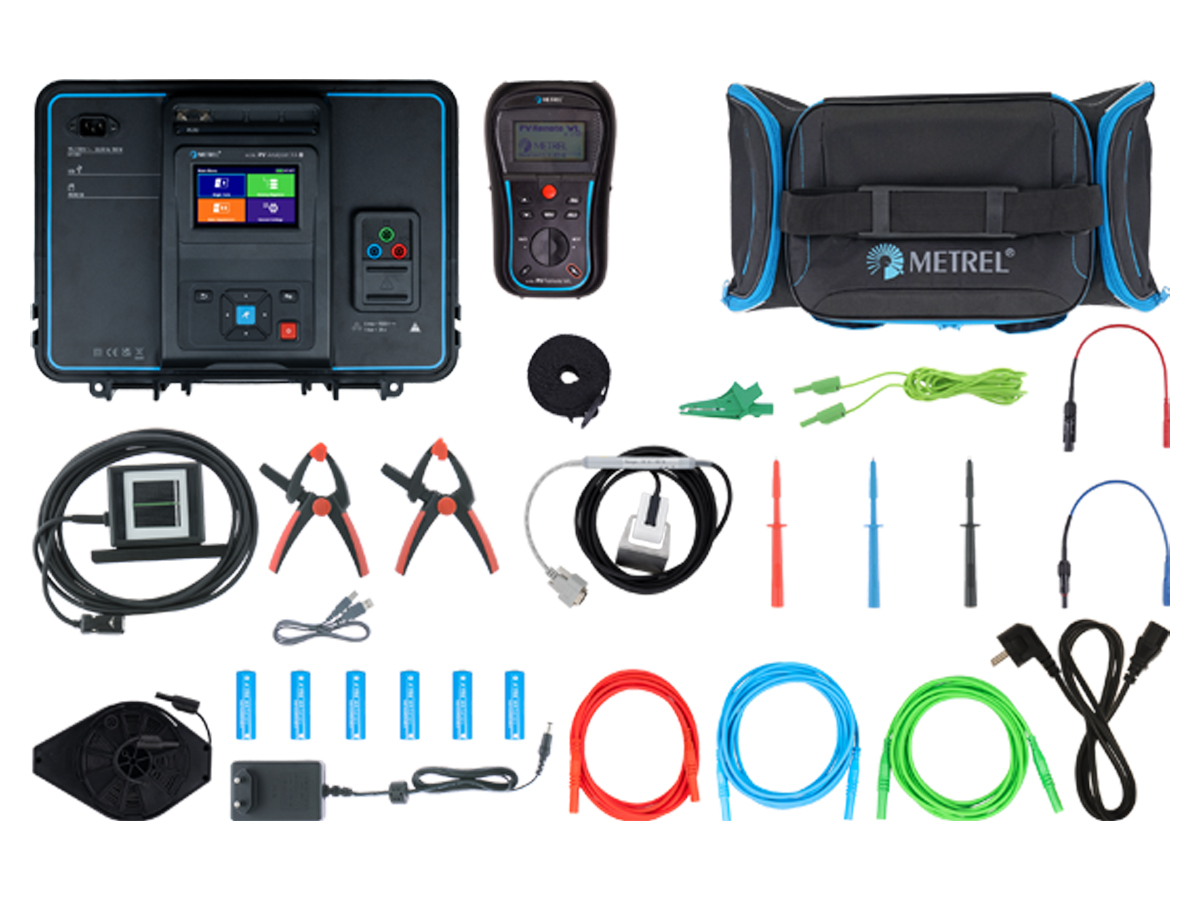

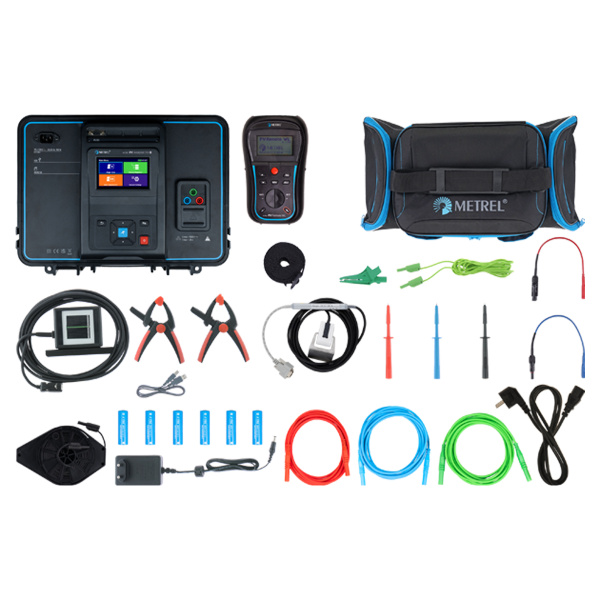

Set Type

Clear

Add to Quote

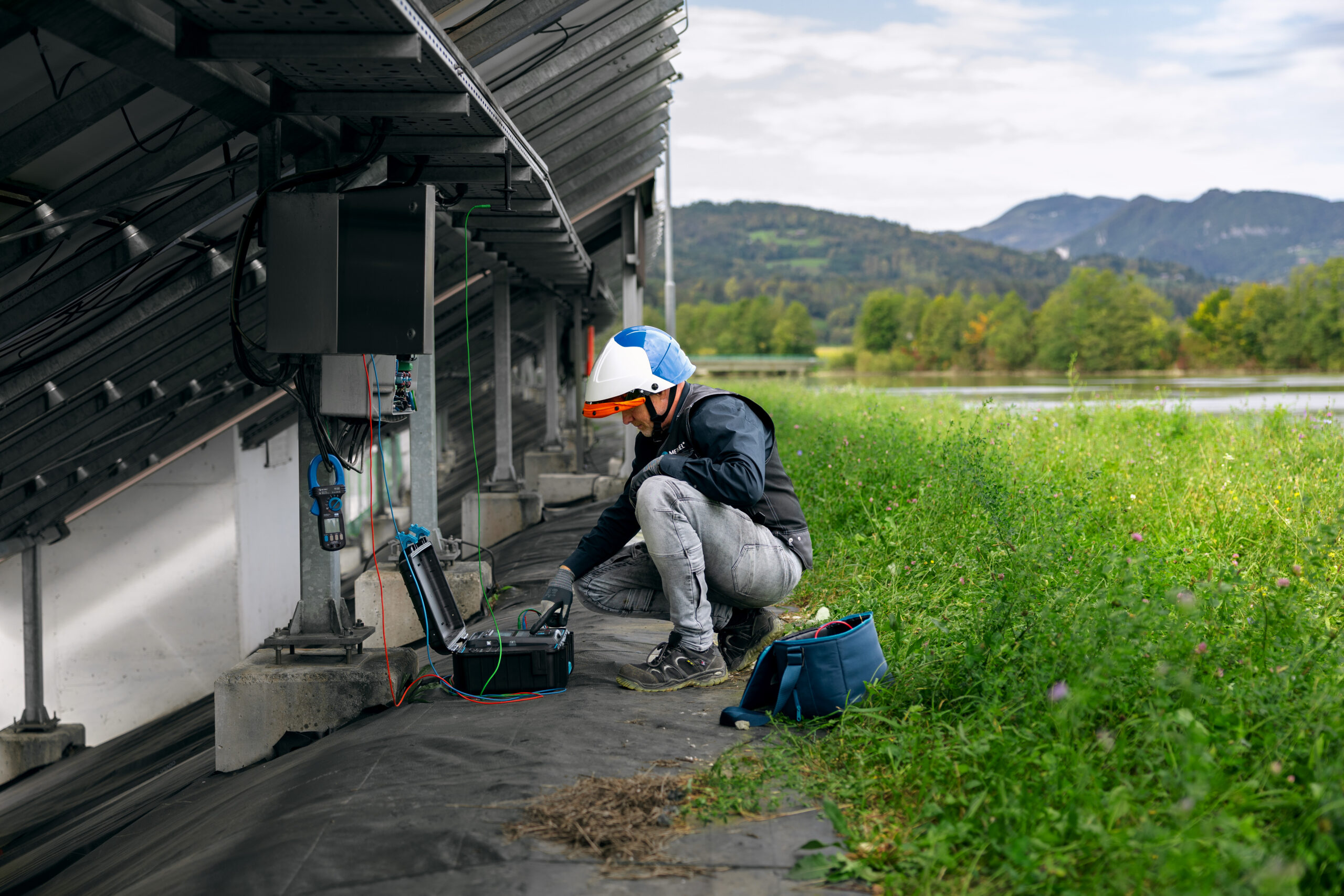

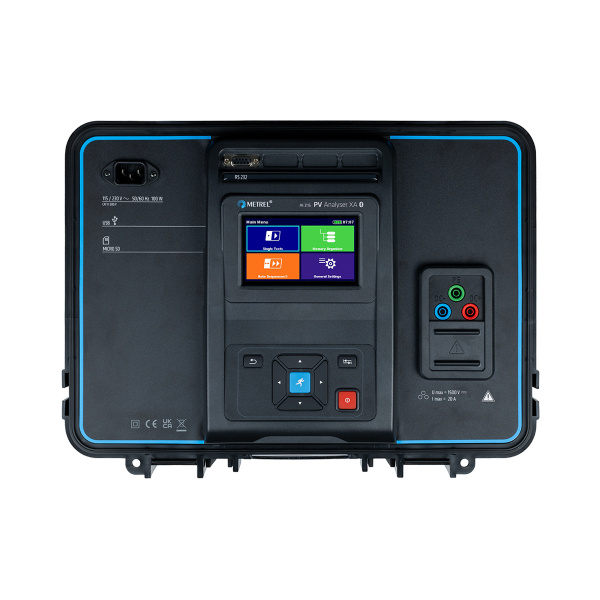

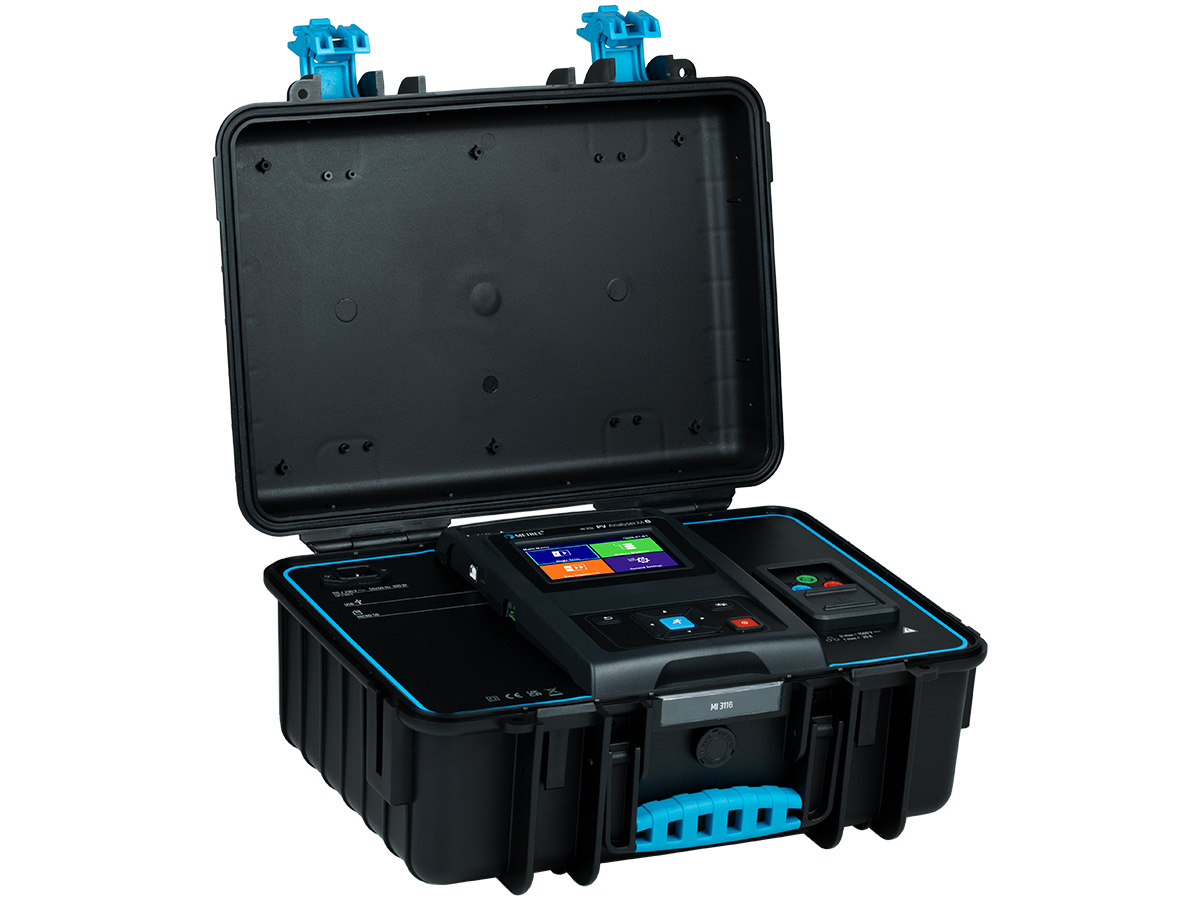

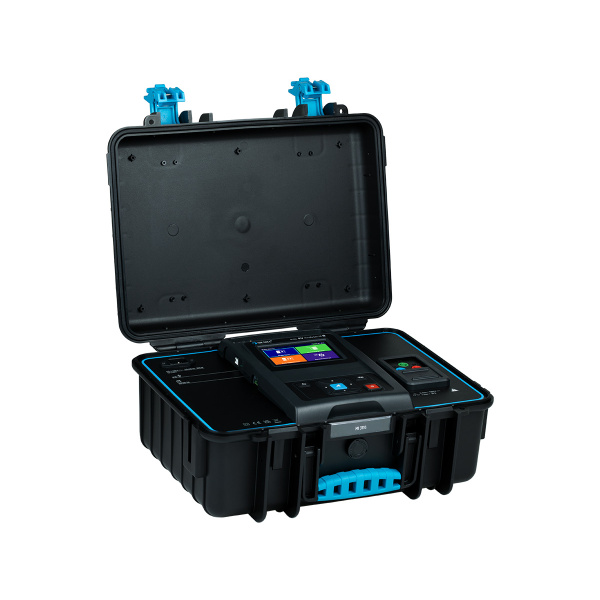

The MI 3116 PV Analyser XA is an advanced photovoltaic and electrical installation tester designed for maximum efficiency and precision. It combines insulation and I/U measurements of 1500 V PV systems in a single device while ensuring accurate testing of high-efficiency PV modules. A wireless (Wi-Fi) remote unit enables real-time measurement and logging of irradiation and cell temperature, enhancing data collection. The Auto Test function for Category 1 tests streamlines operation, while the innovative correction feature allows users to adjust previously incorrect parameters on completed measurements or entire test groups, ensuring greater accuracy and reliability in PV system diagnostics.

Measuring functions

Maximum system voltage up to 1500 VDC
Maximum harness Sub Array current up to 40 A DC
1500 V insulation resistance of strings
Support for bifacial modules
I/V characteristics
Isc and Uoc test
Continuity of PE conductors
Polarity test
Acquisition of irradiation and PV module temperature

Insulation and I/U measurement of 1500 V PV systems in one instrument
Measurement of high efficiency PV modules
Capacitive measurement method
Wireless (Wi-Fi) remote unit for measuring and logging irradiation and cell temperature of PV modules
Auto test for Category 1 tests
Calculation of STC values and comparison with nominal data
Correction of previously incorrectly entered parameters on already executed measurement or a group of measurements

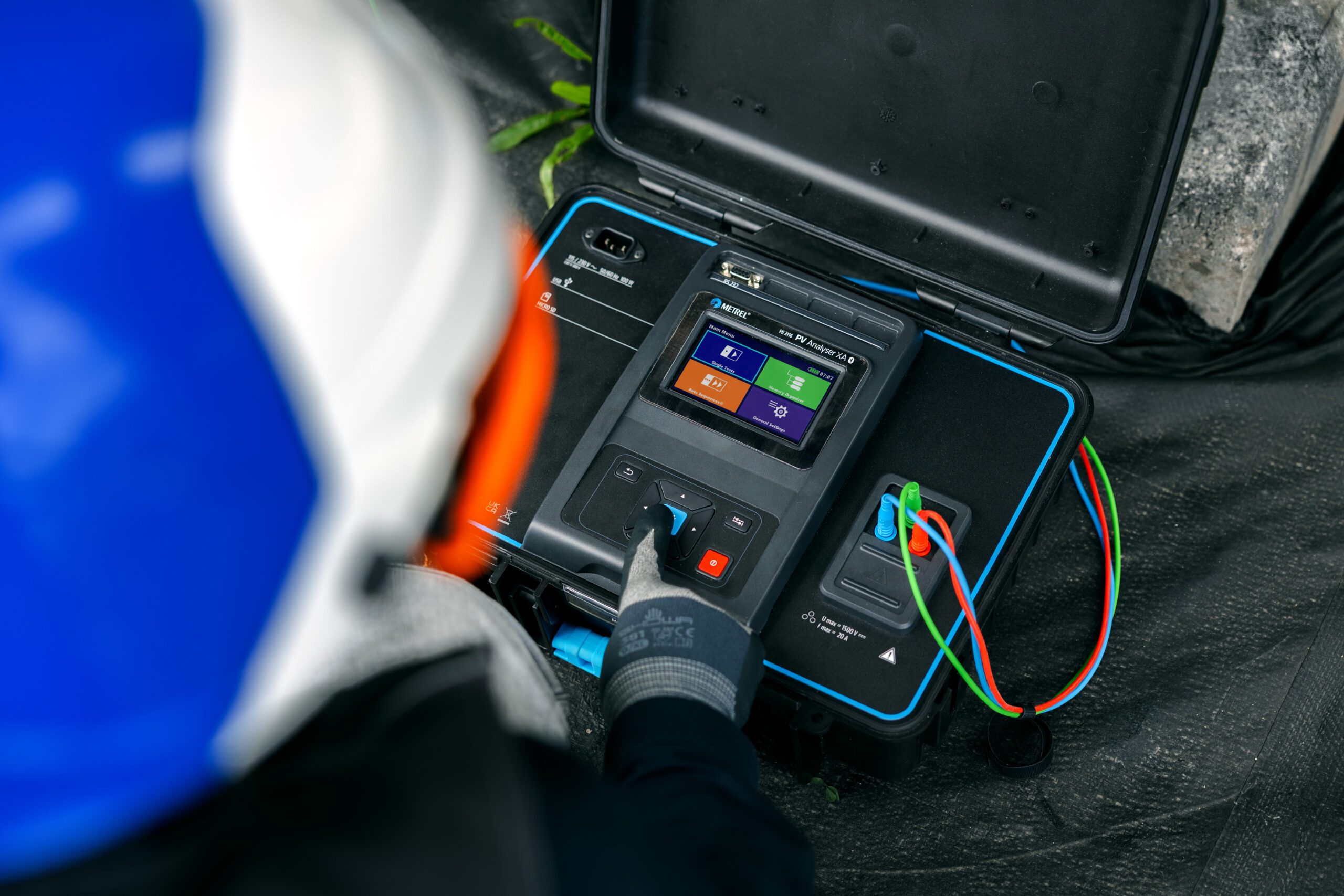

The instrument is controlled via a colour touch screen display through which the user can prepare and start the selected test or measurement, store results, and review them in a numerical and graphical form
Memory organizer, operations on a single or a group of measurements, search functionality
PV modules database handler
AUTOSEQUENCE
The SW 1201 Metrel Electrical Safety Manager (MESM) is a powerful software solution designed to streamline electrical safety testing. It allows users to predefine measurement structures, upload or download test data, and efficiently review results. With advanced features such as I/U curve analysis, a PV module database explorer, and professional report generation, MESM enhances workflow efficiency and ensures precise data management

Standards applied

Photovoltaic systems

EC/EN 62446 Photovoltaic (PV) systems – Requirements for testing, documentation and maintenance
EN 62466-1 Photovoltaic (PV) systems. Requirements for testing, documentation and maintenance – Part 1: Grid connected systems – Documentation, commissioning tests and inspection
EN 62466-2 Photovoltaic (PV) systems. Requirements for testing, documentation and maintenance – Part 2: Grid connected systems – Maintenance of PV systems
IEC/EN 60891 Photovoltaic devices – Procedures for temperature and irradiance corrections to measured I-V characteristics
