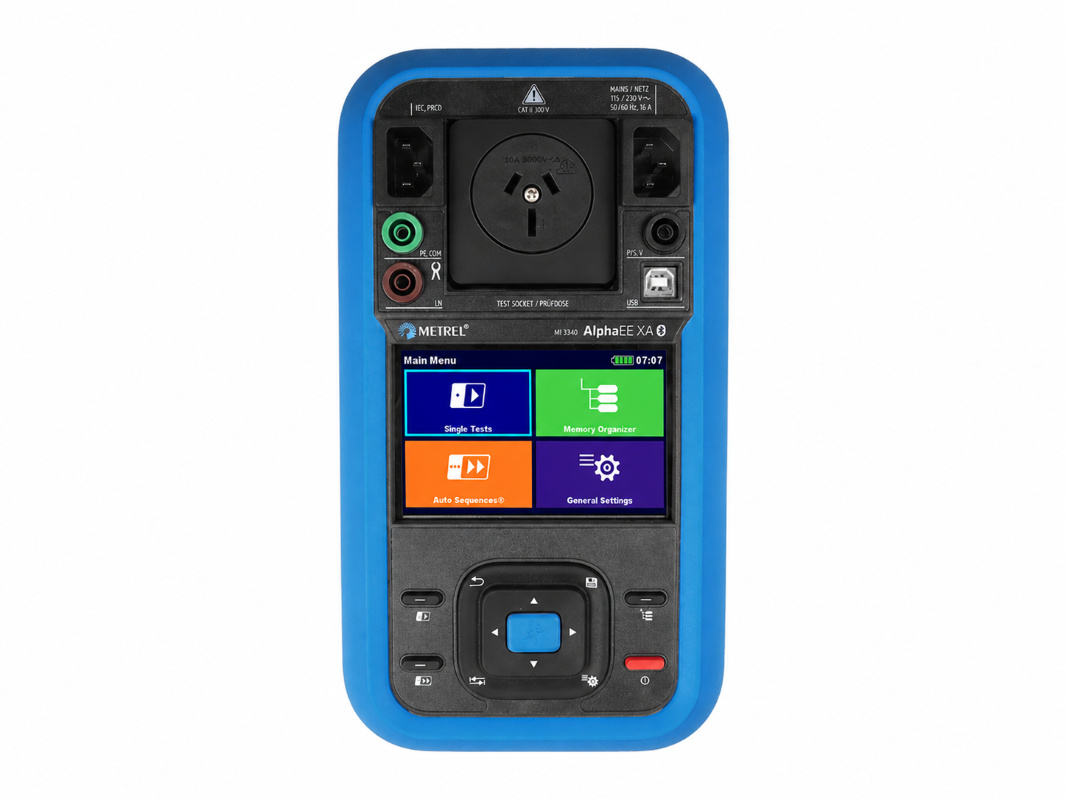

MI 3340 AlphaEE XA Portable Appliance Tester - Image 2

MI 3340 AlphaEE XA Portable Appliance Tester

The new cutting-edge MI 3340 AlphaEE XA Portable Appliance Tester is designed with an innovative housing that redefines the ease and comfort of electrical equipment testing.

AUSTRALIAN EXCLUSIVE

MESM PRO licence included with every standalone MI 3340 purchase.

Includes all BASIC licence functionality, professional report printing and PRO export to Excel.
Learn more about MESM.

Looking for the complete MI 3340 kit?
View the MI 3340 Alpha PRO PAT Tester

Typically ‘In stock’ subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.

Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

The new cutting-edge MI 3340AlphaEE XA Portable Appliance Tester, is designed with an innovative housing that redefines the ease and comfort of electrical equipment testing. The instrument is engineered for robust performance and perfect balance, the AlphaEE XA ensures effortless one-handed operation, making it an indispensable tool for professionals on the go. The user-friendly interface provides the flexibility of a touch screen or function keys catering to your preferred method of operation. This dual option enhances usability, ensuring a seamless experience whether you’re conducting routine checks or detailed diagnostics. Designed with service organizations in mind, the AlphaEE XA boasts specialized measuring functions that cater to a wide range of applications. It offers both periodic testing and testing after repair with pre-defined AutoSequences and single measurements for on-the-spot servicing, providing unparalleled versatility. AlphaEE XA boosts the future of electrical equipment testing, with its unparalleled convenience, advanced functionality, and exceptional performance, all encapsulated in a sleek, user-centric design.

Measuring functions

EN 50678 / EN 50699
Visual inspections;
Auto test (Continuity + Insulation resistance + Alternative leakage)
Continuity of protective earth 200mA;
Insulation Resistance (Riso, Riso-S) 50V, 100V, 250V, 500V;
Protective conductor current (Direct, Residual, Alternative);
Touch leakage current (Direct, Alternative);
Leakage current produced by a floating input, PE current (Direct, Residual);
Leakage current produced by a floating input, Touch current (Direct);
Leaks & Power (Itou, Idiff, P, S, Q, PF, THDu, THDi, CosØ, I, U);
Point to Point Leakage current (Direct)
Power (P, S, Q, PF, THDu, THDi, CosØ, I, U);
PRCD test, (2 pole, 3 pole, K/ Di (varistor), S (3-pole)), S+;
PRCD test (PE conductor, Open conductor, PE probe);
RCD test (type A, AC, B, B+, F);
IC-CPD test (EV-RCD, PE conductor);
Voltage, SELV/PELV;
Socket test;
Polarity / Active polarity test;
EVSE Diagnostic test;
Clamp current;*
Functional inspections.

* (With optional A 1472).

Ergonomic housing: Experience ultimate convenience with our ergonomic housing, designed for effortless single-handed operation.
Li-Ion battery: Enjoy extended use and rapid recharging with Li-Ion battery, leveraging advanced Li-Ion technology for longer operation times and quicker charge cycles.
Pre-defined AUTOSEQUENCE®s: According to: EN 50678, EN 50699, EV-Cables, P-RCDs, Devices with Floating inputs, Audio/video, information and communication technology EN 62368-1.
Insulation resistance test (50V, 100V): Lower test voltages at insulation resistance tests make it easy to safely evaluate charging stations for e-bikes and other electric transportation devices.
IC-CPD: Easily test Mode 2 and Mode 3 EV cables with the help of supported compatible adapters.
Active polarity test: Ensure flawless functionality with our active polarity test, designed to verify devices requiring mains voltage for operation, including P-RCD switches, smart extension leads, and electric vehicle charging cables.
Colour touch screen: Offers users a quick overview and effortless parameter adjustment, enhancing both efficiency and user experience.
Auto Continuity: The Auto start feature enables a rapid and efficient assessment of devices with a larger number of metal parts that require inspection.
Socket test: a socket test function empowers users to troubleshoot connection points effectively. With this feature, you can verify mains voltage, and the integrity of “L / N / PE” wiring, ensuring reliable and accurate confirmation.
Standby power: Testing of Standby power (Commission regulation No 2023/826).
Support for PRCD testing: Support for all types of PRCDs, including 2-pole, 3-pole, K/Di (varistor), S (3 pole) and testing with the PE probe.
BlackBox protocol: The primary purpose of the Black Box protocol is to enable execution of Single tests and AutoSequences via remote applications.
PC SW Metrel ES Manager: Enables creation of test structures, user-defined AUTOSEQUENCE®s, professional test reports and data transfer for archiving.
aMESM Android SW: Enables QR code scanning, and uploading of pre-prepared user-defined AUTOSEQUENCE®s.

Portable appliances safety

PAT Competences: Portable Appliances Safety Testing
EN 50699 Recurrent Test of Electrical Equipment
EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
AS / NZ 3760 In-service safety inspection and testing of electrical equipment
VDE 0701 Inspection after repair, modification of electrical appliances – periodic
VDE 0702 Inspection on electrical appliances – general requirements for electrical safety
NEN 3140 Guidelines for safe working practices
IEC 62368-1:2023 Audio/video, information and communication technology equipment – Part 1: Safety requirements
IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment

Building LV Installation

IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC – Equipment for testing, measuring or monitoring of protective measures – series
IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC – Equipment for testing, measuring or monitoring of protective measures – relevant parts
AS / NZ 3017 Electrical installations – Verification guidelines
