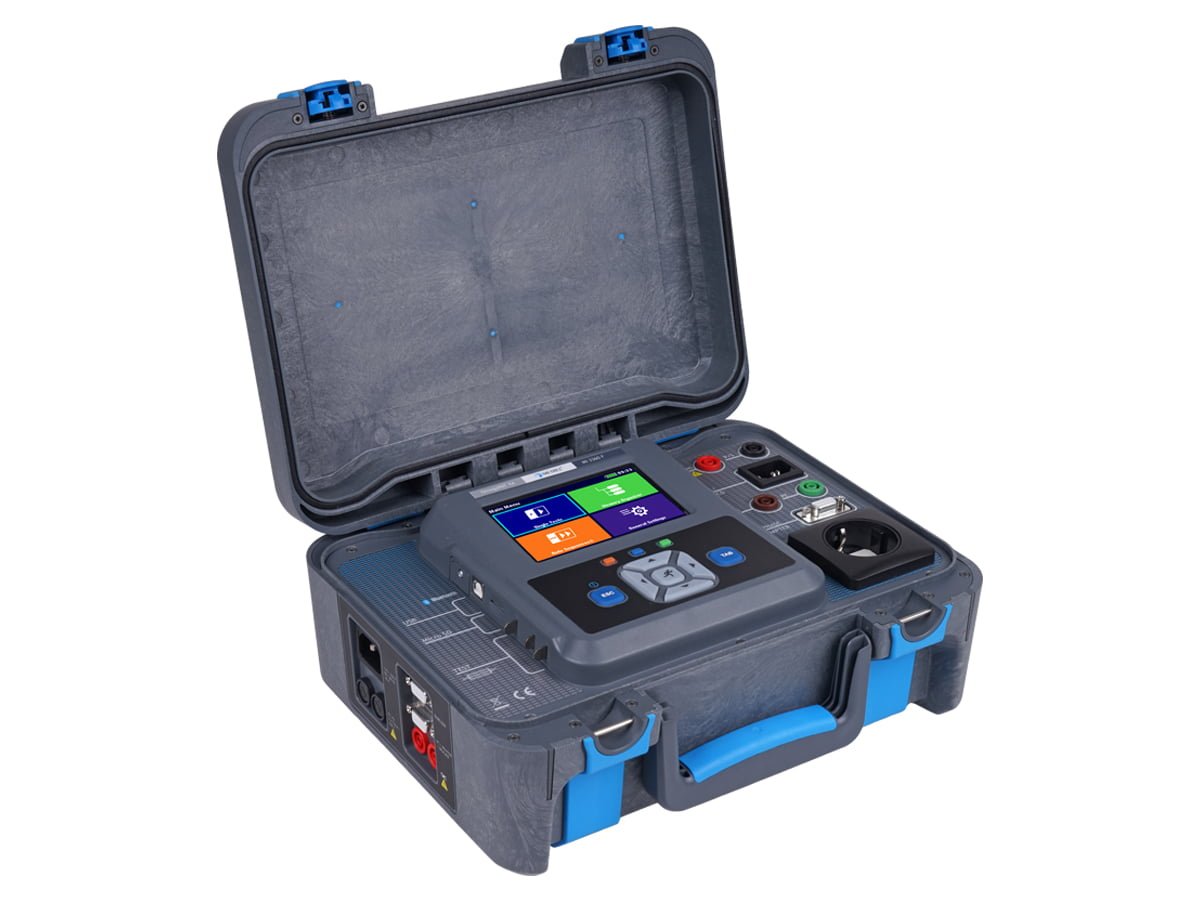

MI-3360 OmegaPat XA portable appliance tester. Gray case with blue accents, open to reveal screen and controls. Electrical safety testing device.

MI-3360 Portable Appliance Tester - OmegaPat XA - Image 2

MI-3360 Portable Appliance Tester - OmegaPat XA - Image 3

MI-3360 Portable Appliance Tester - OmegaPat XA - Image 4

MI-3360 Portable Appliance Tester - OmegaPat XA - Image 5

MI-3360 Portable Appliance Tester - OmegaPat XA - Image 6

MI-3360 Portable Appliance Tester – OmegaPat XA

Quick, efficient and dependable testing of electrical safety of devices from the following areas:

Portable appliances according to EN 50678 & EN 50699
Medical electrical devices according to IEC/EN 62353 extended to tests in acc. with IEC 60601
Audio/video, information and communication technology equipment according to IEC/EN 62368 (in combination with A 1789 SFC adapter)
Welding equipment according to VDE 0544-4, IEC/EN 60974 (in combination with A 1422 Active 3-phase adapter)

Supplied to order. Contact us for quotation and lead time.

SKU: MI-3360

Set Type

Clear

Add to Quote

Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

The Metrel MI 3360 OmegaGT XA brings 4 variations of this instrument, intended for professional use in the most demanding applications. All of them support user accounts, which means that one device can be used by several electricians. Model versions cover the following fields of testing: portable appliances, welding equipment, medical devices and professional testing of PRCD devices. All instruments have an advanced built-in user interface that enables the execution of pre-defined and user-created AUTOSEQUENCE®s. Large memory capacity (8 GB microSD card) enables the user long term saving and archiving of data. All the instruments are specially designed for long-term testing, since their memory structure enables simple searching through the archive of devices and quick re-execution of (periodic) tests. Great emphasis was put on support for peripheral devices such as printers and barcode or QR code scanners and RFID readers (in Bluetooth and wired versions). All of the instrument versions are supported by Metrel ES Manager PC software.

Touch screen: high resolution colour touch screen, 4.3” TFT.
Double manipulation: keyboard and touch screen enable the user to control the instrument in any manner they like.
Pre-defined AUTOSEQUENCE®s: enable the user simple and quick execution of test sequence for the chosen device.
Read the code and test: QR and barcode system of labelling in combination with AUTOSEQUENCE®s enables the user quick and simple testing of electrical devices.
Testing groups: the instruments have built-in filters in accordance with their area of application, which enables the user simple choice of needed test sequences.
Support for PRCD testing: support for all types of PRCDs, including 2-pole, 3-pole, K/Di (varistor), S (3 pole) and testing with the PE probe.
Support for RCD testing: all instruments support testing of A, AC, B, B+ and F RCDs.
Fuse testing: the instrument has a special, integrated testing module for quick testing of all types of fuses.
Hard-wired devices: the instruments have integrated additional test terminals that enable the user simple testing of hard-wired devices.
High-voltage testing (only MI 3360 F): the instrument enables insulation resistance measurement that has to be performed after repairs or maintenance of electrical devices.
Testing of medical devices (only MI 3360 M): the instrument enables testing of medical devices in accordance with IEC/EN 62353.
Testing of welding equipment (only in combination with A 1422): all models of OmegaPAT XA support testing of welding equipment in accordance with IEC/EN 60974-4.
Large memory: support for microSD memory cards, 8 GB card already integrated in the instrument, although that can be expanded to 32 GB.
PC SW Metrel ES Manager: enables creation of test structures, user-defined AUTOSEQUENCE®s, professional test reports and data transfer for archiving.
aMESM Android SW: enables QR code scanning, and uploading of pre-prepared user-defined AUTOSEQUENCE®s.
