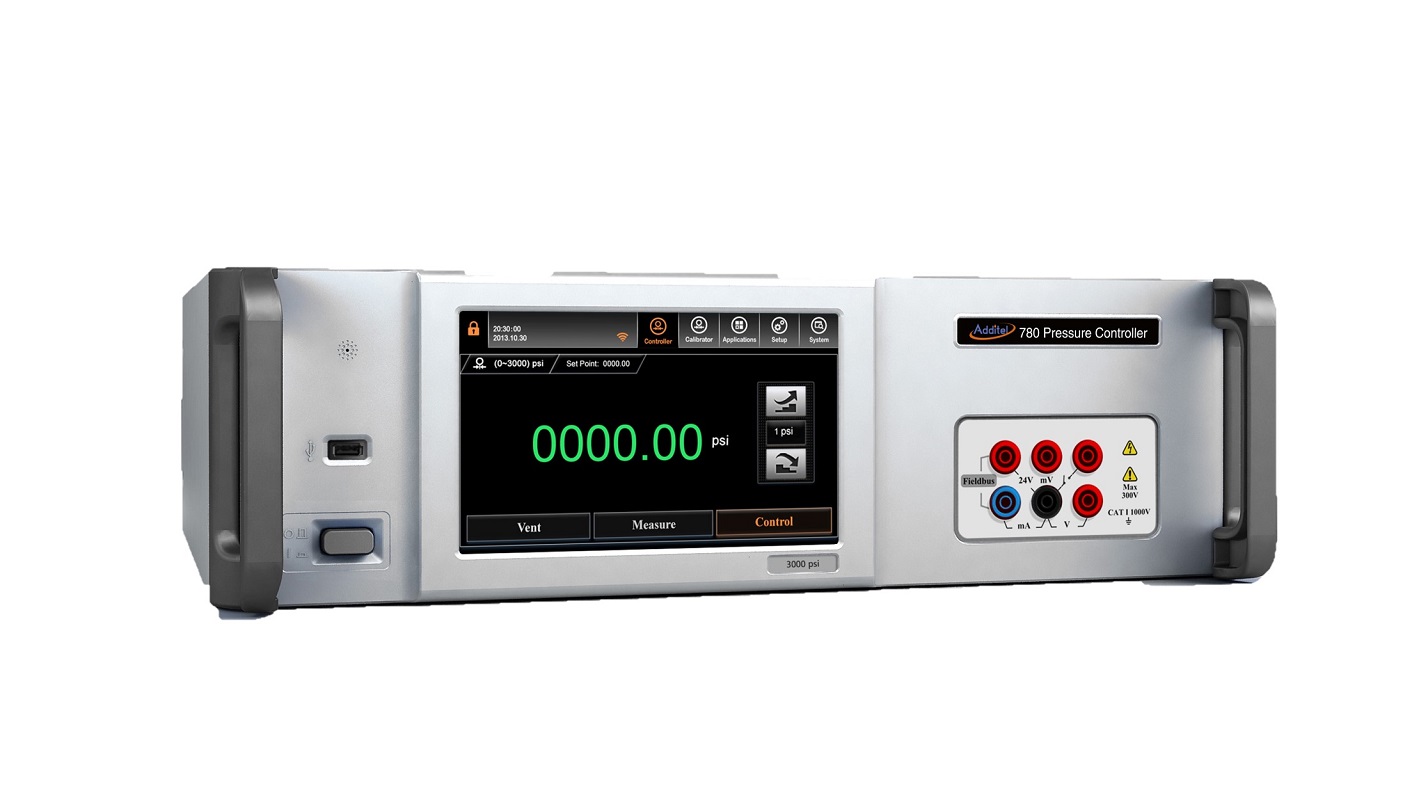

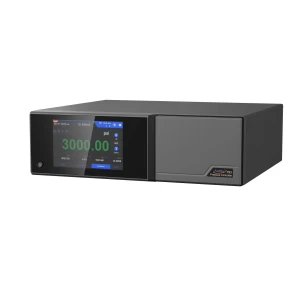

ADT 780 Series Pressure Controller

The ADT 780 series pressure controller incorporates Additel’s traditional, durability, accuracy, and quality into a new benchtop controller packed with features and functionality that is remarkably easy to use

SKU: ZFL-PRO-1573

$0.00

Add to Quote
Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

The Additel ADT780 Series Pressure Controller delivers a balance of accuracy, durability, and ease of use, making it a trusted choice for laboratories, production facilities, and calibration workshops. Designed as a compact benchtop solution, the 780 Series combines Additel’s reputation for reliable performance with modern features that simplify high-volume pressure calibration.

Available in two base ranges—up to 1,000 psi (70 bar) and up to 3,000 psi (200 bar)—the ADT780 provides flexibility for both low- and mid-pressure applications. Each configuration includes a preselected control sensor tailored to your specific workload, while support for both internal and external sensors allows expanded pressure ranges and accuracy upgrades in the future.

For calibration professionals, the ADT780 Series offers an intuitive user interface, stable and repeatable control, and robust build quality, making it a versatile addition to any calibration lab or production line.

  • Control and calibrate ranges from vacuum to 20,000 kPa
  • Removable interchangeable intelligent sensors
  • Precision accuracy of 0.005% of reading plus 0.005% of full scale
  • Standard model accuracy of 0.02% of full scale

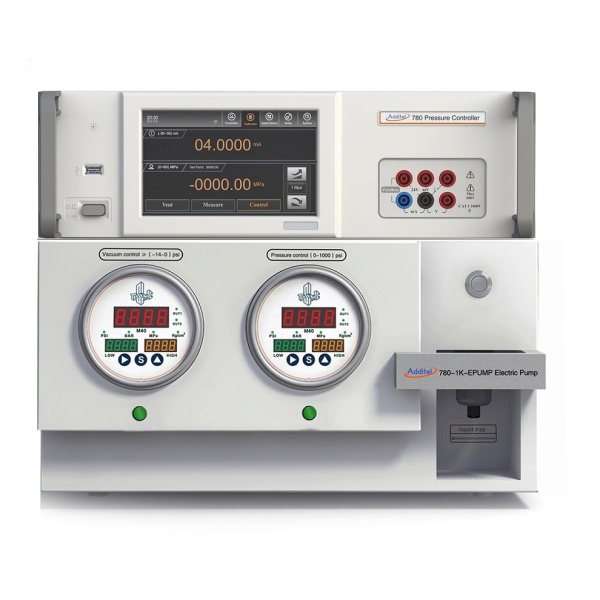

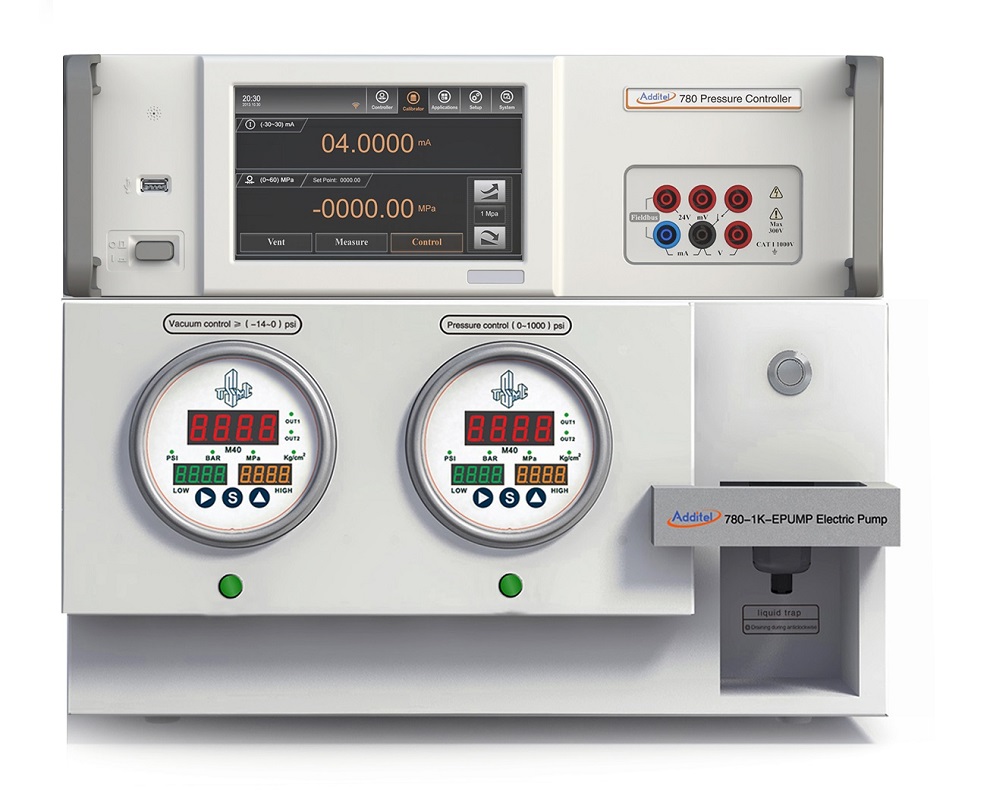

  • Standalone solution to 7,000 kPa, no gas bottle required when used with the Electric Pump

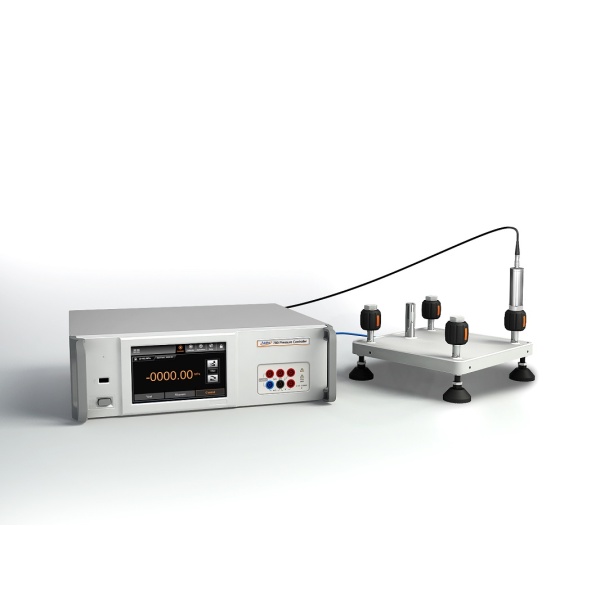

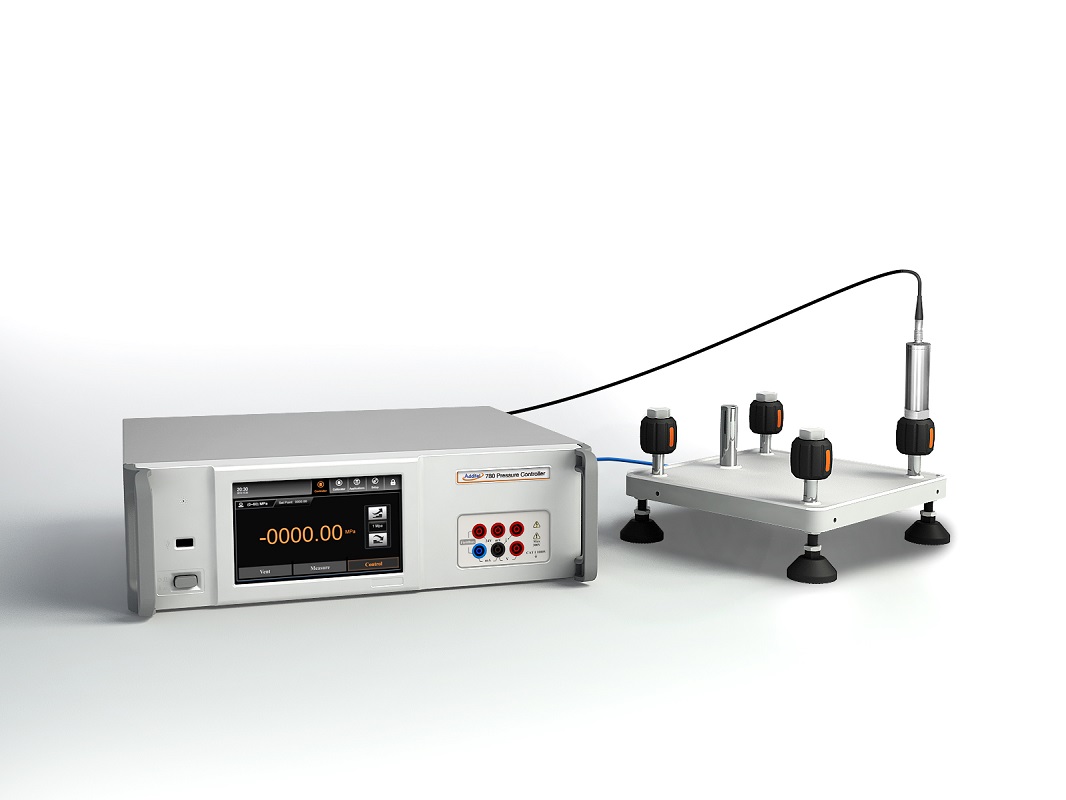

  • External pressure modules to 400 mPa for use with external pressure source/control such as a comparator pump.
  • WiFi enabled communications
  • Fully temperature compensated accuracy over 0°C to 50°C
  • HART Communication and Profibus PA
  • Large 7” color touch screen display
  • Control stability of 0.003%FS
  • Built-in barometer, do absolute and gauge calibrations
  • Easy-to-use icon based user interface

Calibration Laboratories

OEM End of line Production Calibration

Mobile Calibration Laboratories

High Volume Industrial Calibration Workshops
