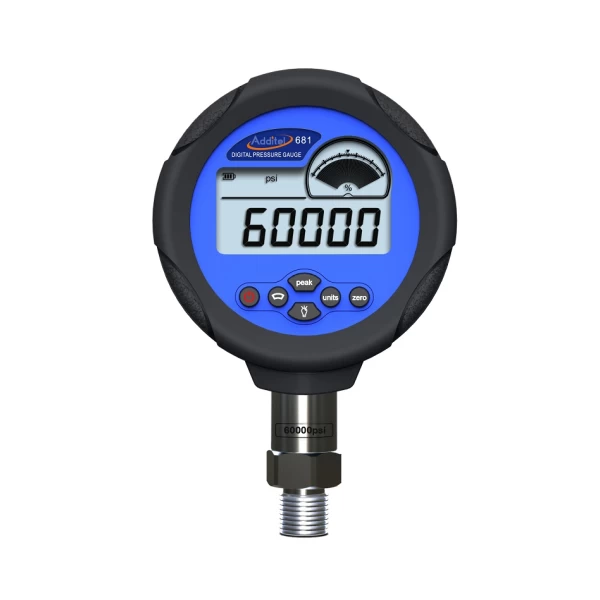

ADT681IS-CP-DL Digital Pressure Gauge – Intrinsically Safe Compound Pressure Data Logging

ADT681IS-CP-DL Digital Pressure Gauge – Intrinsically Safe Compound Pressure Data Logging

Conquer the world of absolute pressure measurements with confidence using our digital pressure gauge, engineered to deliver precision readings without compromise.



Add to Quote

The Additel ADT681-IS-DL IECEx approved data logging compound digital pressure gauges provide an accurate, reliable and economical solution for a wide range of pressure applications. With accuracy choices of 0.2%, 0.1%, 0.05% & 0.02% of full scale or 0.1% reading and compound pressure ranges from -100 kPa to 2,000 kPa, there are options to meet all budgets and service requirements.

The ADT681-IS-DL incorporates on-board datalogging and can be used with the free Additel Land software for setting up and retrieving results from the gauge or be used with optional Log II software for real time logging requirements.

The ADT681-IS-DL digital pressure gauge is supplied with ISO17025 accredited calibration certificate. Zedflo is a NATA accredited facility and can provide accredited calibration for these products.

The ADT681-IS-DL has options for measuring gauge, compound, differential, absolute and barometric pressure.

View Non Intrinsically Safe Versions

View Non Intrinsically Safe Data Logging Versions

View IECEx Intrinsically Safe Non Data Logging Versions

View Panel Mount Versions

View Panel Mount Data Logging Versions

  • IECEx Approval Ex ia IIC T4 Ga  –  Certificate No. TUR 16.0023X
  • Data storage of 21,843 records (each record includes date, time, pressure and ambient temperature)
  • Choice of accuracy levels 0.2%, 0.1%, 0.05% & 0.02% FS or 0.1% RDG
  • Pressure ranges from -100 to 2,000 kPa
  • Selectable engineering units
  • Large back-lit easy to read display
  • % pressure indication with fan shaped graph scale for visual reference
  • Display flash warning when pressure over 120% of FS
  • All ADT681 gauges can perform real time logging with optional Log II software
  • ISO 17025 accredited calibration certificate included
  • Precision pressure measurement
  • Field gauge and switch calibration
  • Pressure safety valve (PSV) testing
  • Pressure regulator testing
  • Hydrotesting
  • Gas pressure testing
  • Pressure data logging
