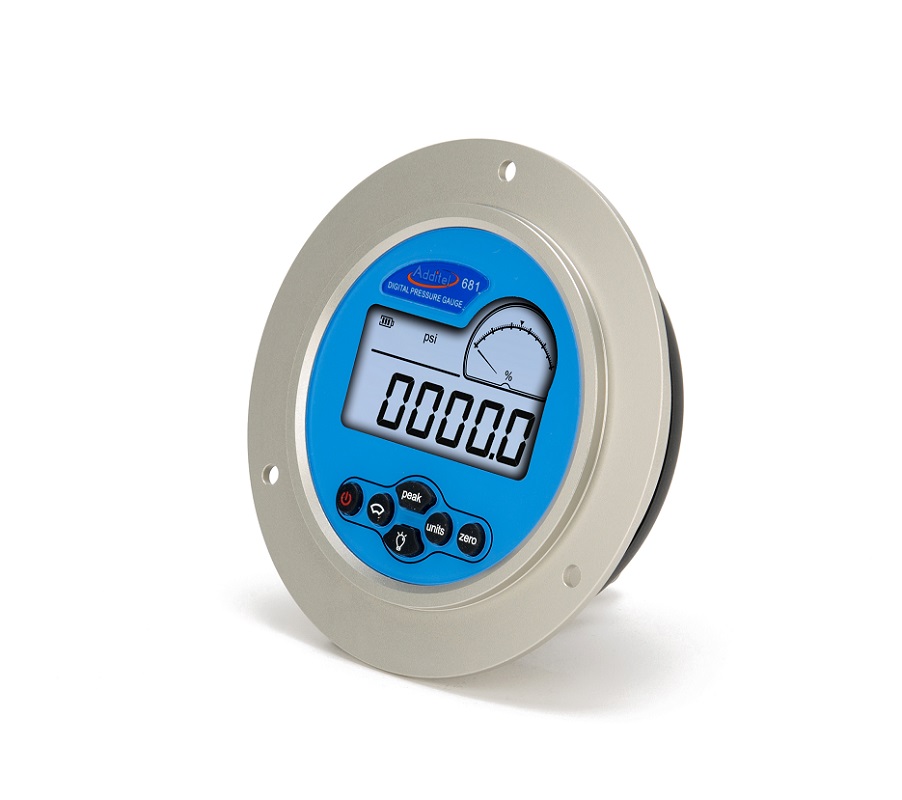

ADT681-PB-DL Digital Pressure Gauge – Gauge Pressure Data Logging Panel Mount

ADT681-PB-DL Digital Pressure Gauge – Gauge Pressure Data Logging Panel Mount

Buckle up for a precision ride with our digital pressure gauge, a cost-effective marvel delivering accuracy and reliability, making pressure measurements a breeze.

SKU: ADT681-PB-DL

$1,680.00$8,145.00

Add to Quote

The Additel ADT681-PB-DL panel mount digital pressure gauges, provide an accurate, reliable and economical solution for a wide range of pressure applications. With accuracy choices of 0.2%, 0.1%, 0.05% & 0.02% of full scale or 0.1% reading and pressure ranges from -100 kPa to 420 MPa, there are options to meet all budgets and service requirements.

Front flange with rear process connection allows for easy mounting into panels and test benches.

The ADT681-PB-DL incorporates on-board datalogging and can be used with the free Additel Land software for setting up and retrieving results from the gauge or be used with optional Log II software for real time logging requirements.

The ADT681-PB-DL digital pressure gauge is supplied with ISO17025 accredited calibration certificate. Zedflo is a NATA accredited facility and can provide accredited calibration for these products.

The ADT681-PB-DL has options for measuring gauge, compound, absolute and barometric pressure.

View Direct Mount Versions

View Direct Mount Data Logging Versions

View Direct Mount IECEx Intrinsically Safe Versions

View Direct Mount IECEx Intrinsically Safe Data Logging Versions

View Panel Mount Non Data Logging Versions

  • Front flange with rear entry for panel mounting
  • Data storage of 21,843 records (each record includes date, time, pressure and ambient temperature)
  • Choice of accuracy levels 0.2%, 0.1%, 0.05% & 0.02% FS or 0.1% RDG
  • Pressure ranges up to 420 MPa (60,000 PSI)
  • Selectable engineering units
  • Large back-lit easy to read display
  • % pressure indication with fan shaped graph scale for visual reference
  • Display flash warning when pressure over 120% of FS
  • All ADT681 gauges can perform real time logging with optional Log II software
  • ISO 17025 accredited calibration certificate included
  • Precision pressure measurement
  • Field gauge and switch calibration
  • Pressure safety valve (PSV) testing
  • Pressure regulator testing
  • Hydrotesting
  • Gas pressure testing
  • Pressure data logging
