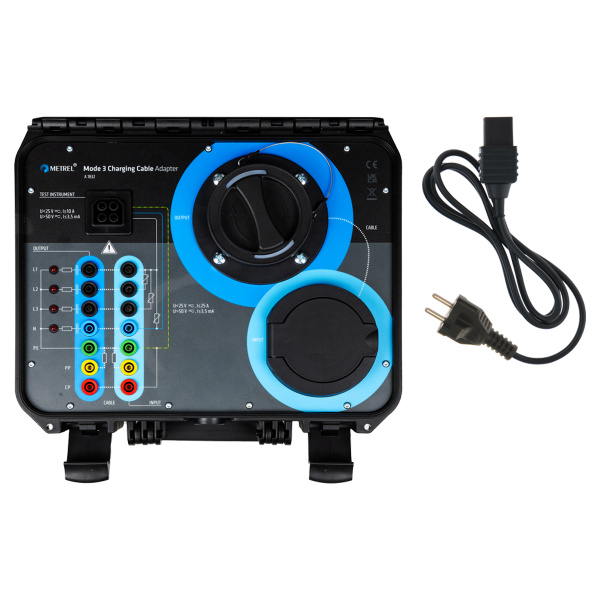

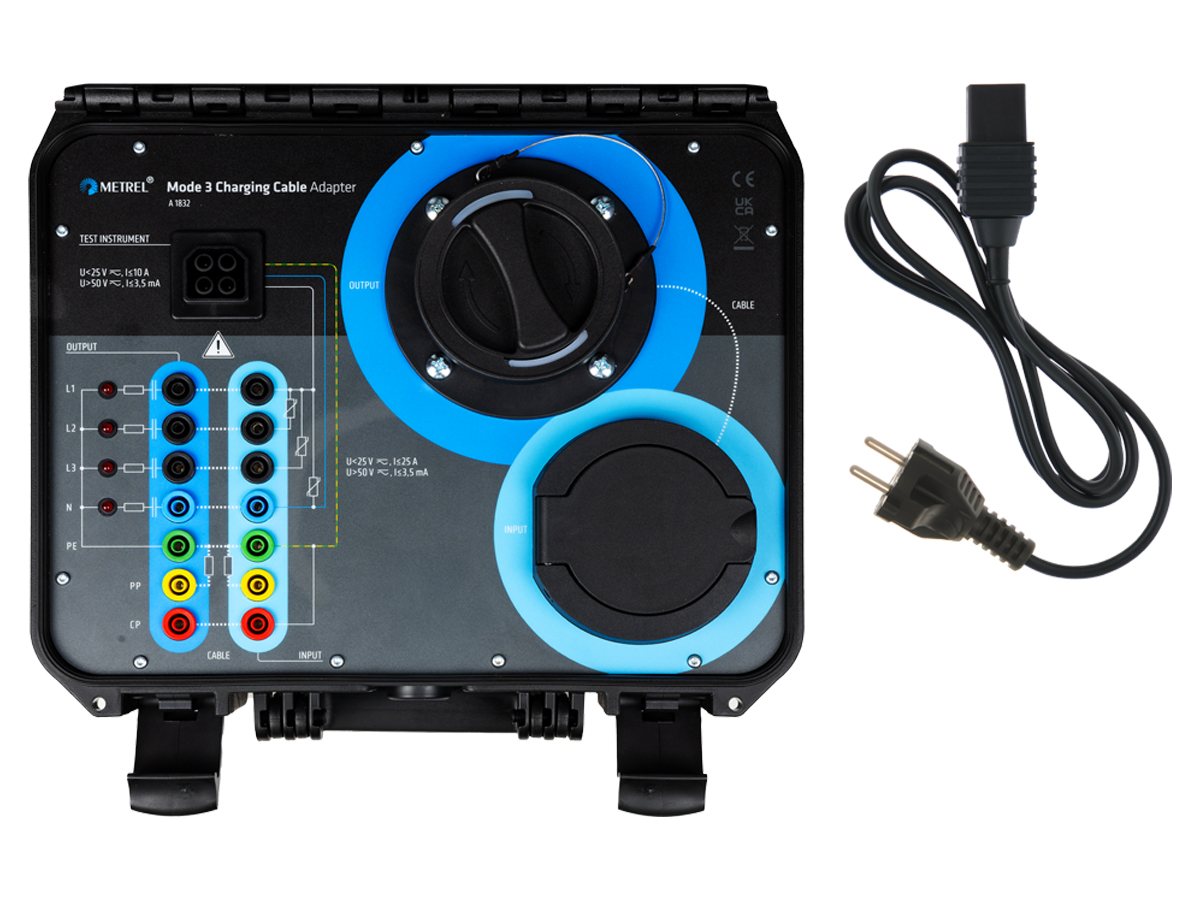

A-1832-Adapter-for-Mode-3-charging-cable-standard-set

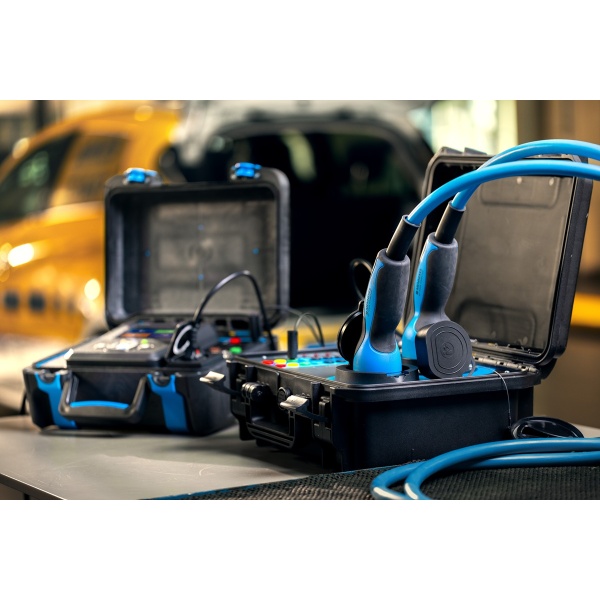

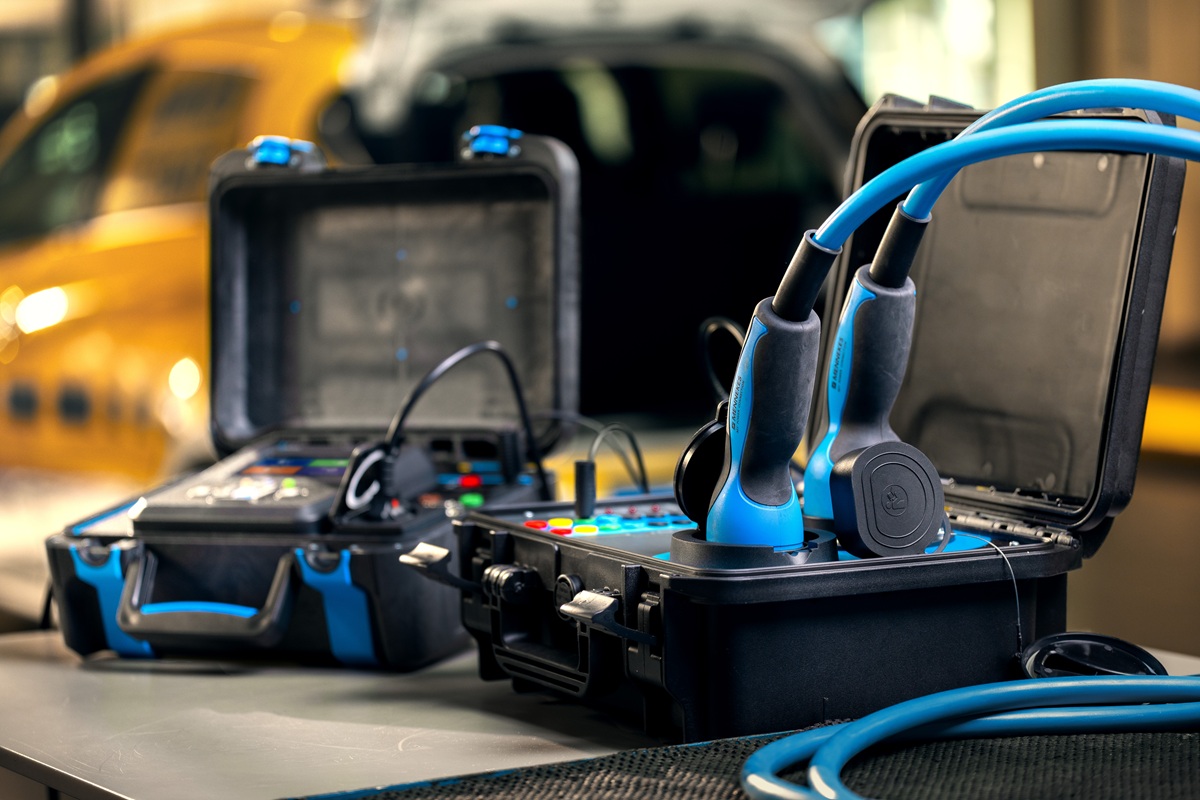

A-1832-Adapter-for-Mode-3-charging-cable-application-5

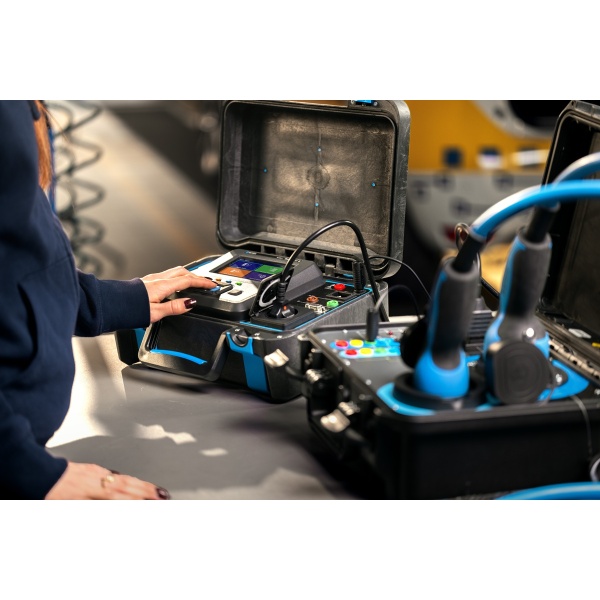

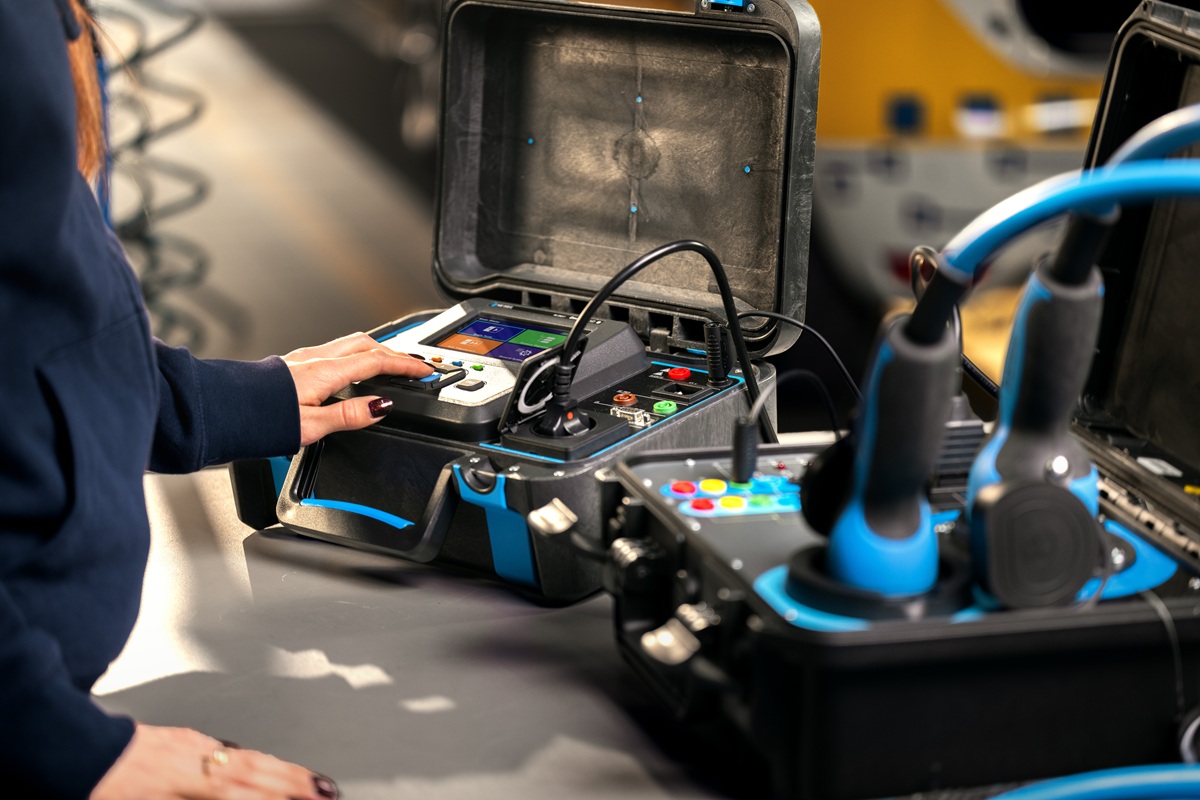

A-1832-Adapter-for-Mode-3-charging-cable-application-4

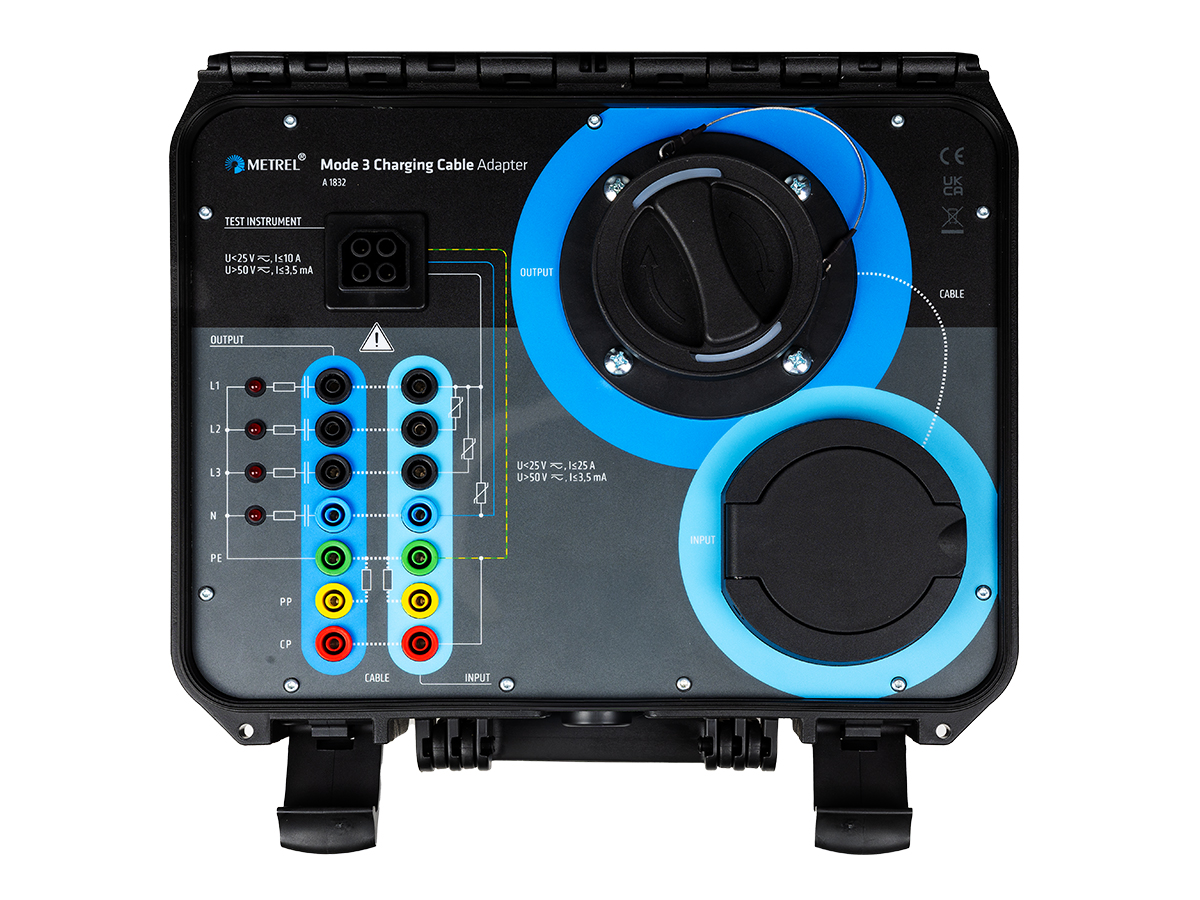

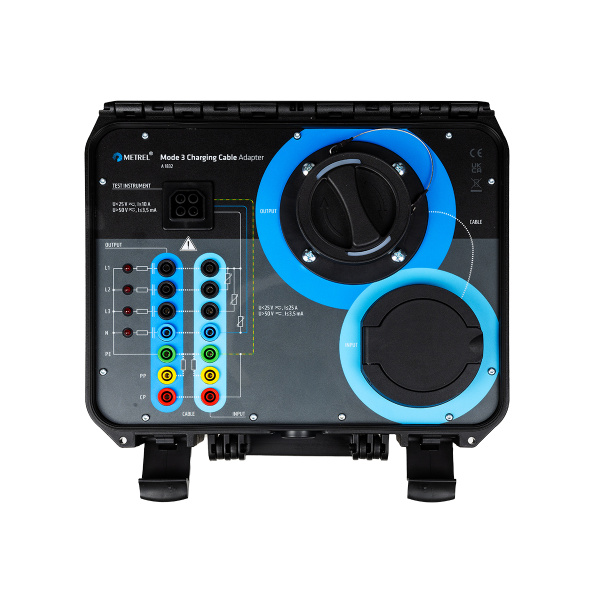

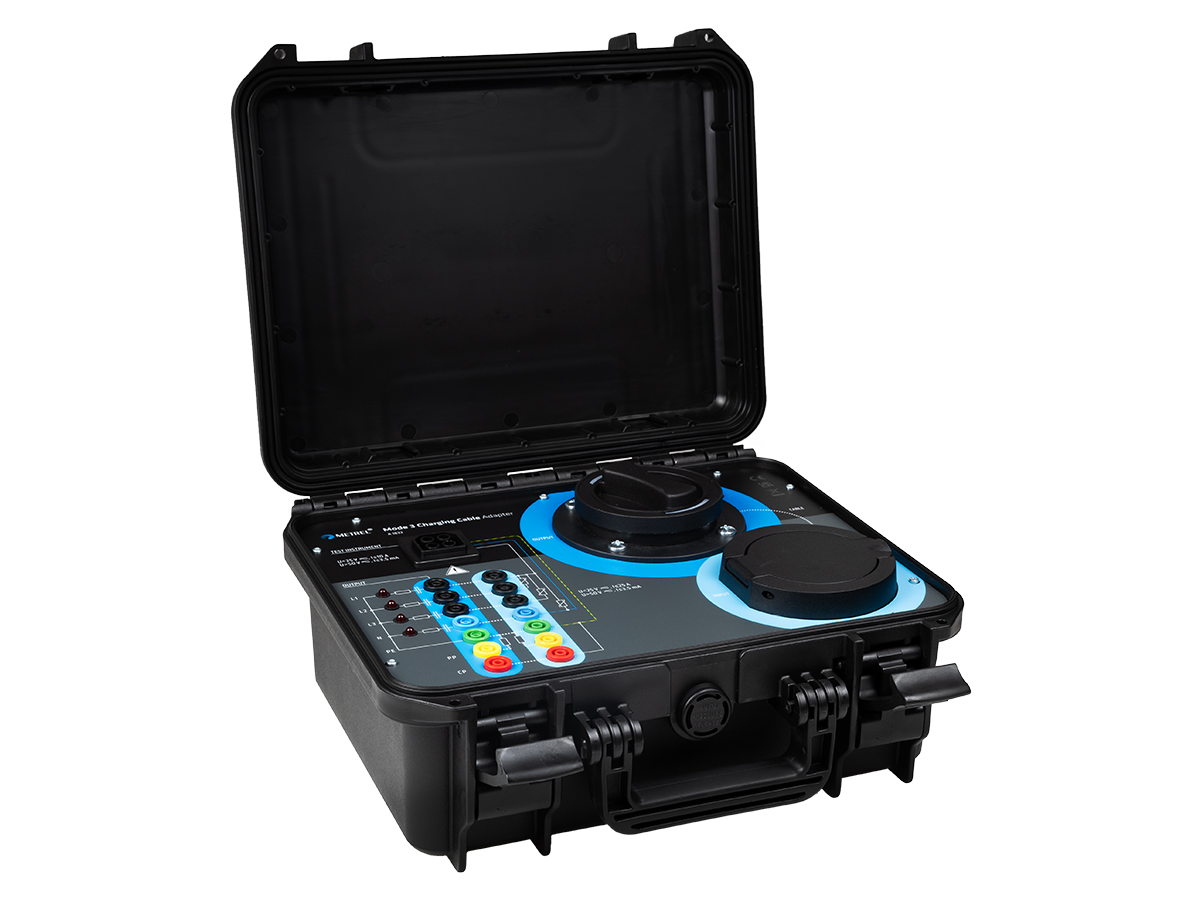

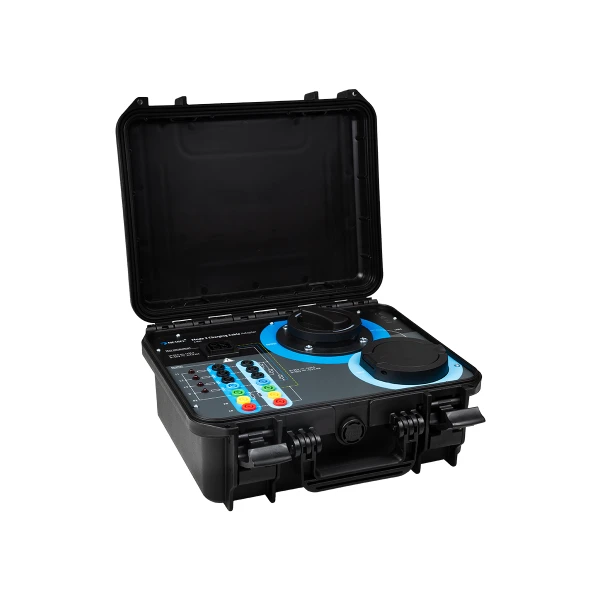

A 1832 Mode 3 Charging Cable Adapter

The A 1832 Mode 3 Charging cable adapter is used for electrical safety testing of Mode 3 EV charging cables with Type 2 connectors together with supported METREL or third-party testers.



Typically ‘In stock’ subject to prior sales. Contact us to confirm stock level before ordering.
If nil stock at time of order, lead time is typically ~4 weeks.

SKU: A-1832

Original price was: $1,335.00.Current price is: $1,268.00. ex. GST

Add to Quote

The A 1832 Mode 3 Charging cable adapter is used for electrical safety testing of Mode 3 EV charging cables with Type 2 connectors together with supported METREL or third-party testers. If used together with Metrel AUTOSEQUENCES®, integrated in the newer multifunctional testers, the EV charging cable can be comprehensively tested (including functionally) with a push of a button. It is possible to create a professional report using MESM software.



Measuring functions

  • Type 2 connectors enabling connection of Mode 3 EV charging cable;
  • Banana sockets outputs for connection to a test instruments test leads;
  • LED indicators for indication of continuity of phase conductors (L1, L2, L3, N);
  • Test input for connection of test instrument, enabling execution of AutoSequences®;
  • EV CABLES AUTO SEQUENCE® support;
  • MESM report creation.

Can be used with:

• Continuity testing of all wires:
• L1 > L1
• L2 > L2
• L3 > L3
• N > N
• PE > PE
• CP > CP
• Resistance of PP resistor (input)
• Resistance of PP resistor (output)
• Fast continuity check of L1, L2, L3, N conductors
with LEDs (by using the sub leakage test)
• Insulation resistance of phase conductors to earth
