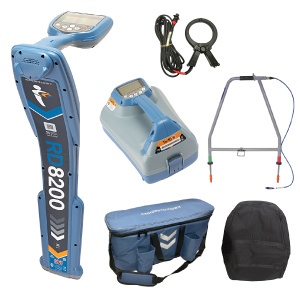

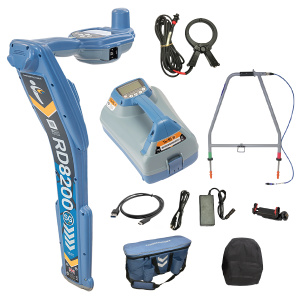

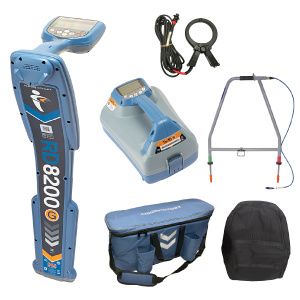

All RD8200 Locators come with 2 D-Cell Battery Tray as Standard.
3 Years Warranty via Registration covered by Radiodetection Australia.

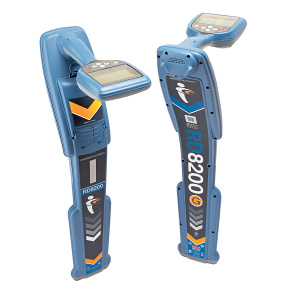

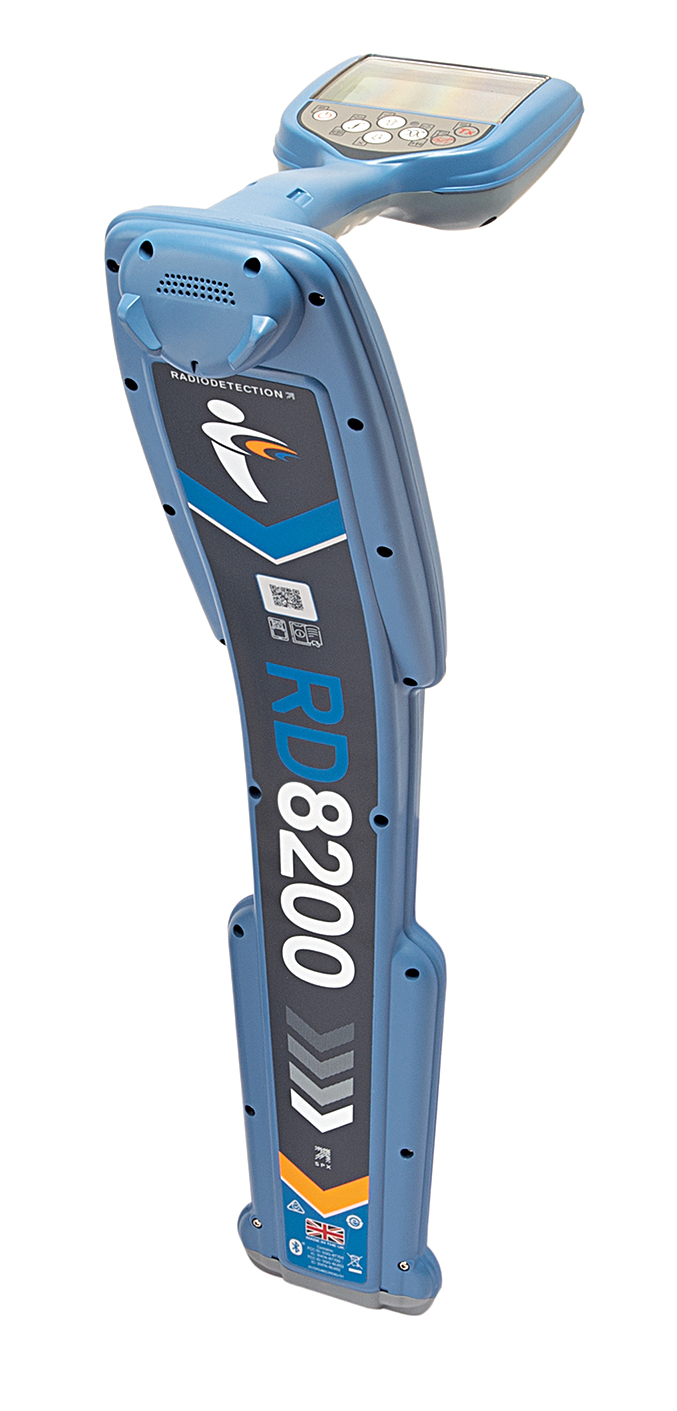

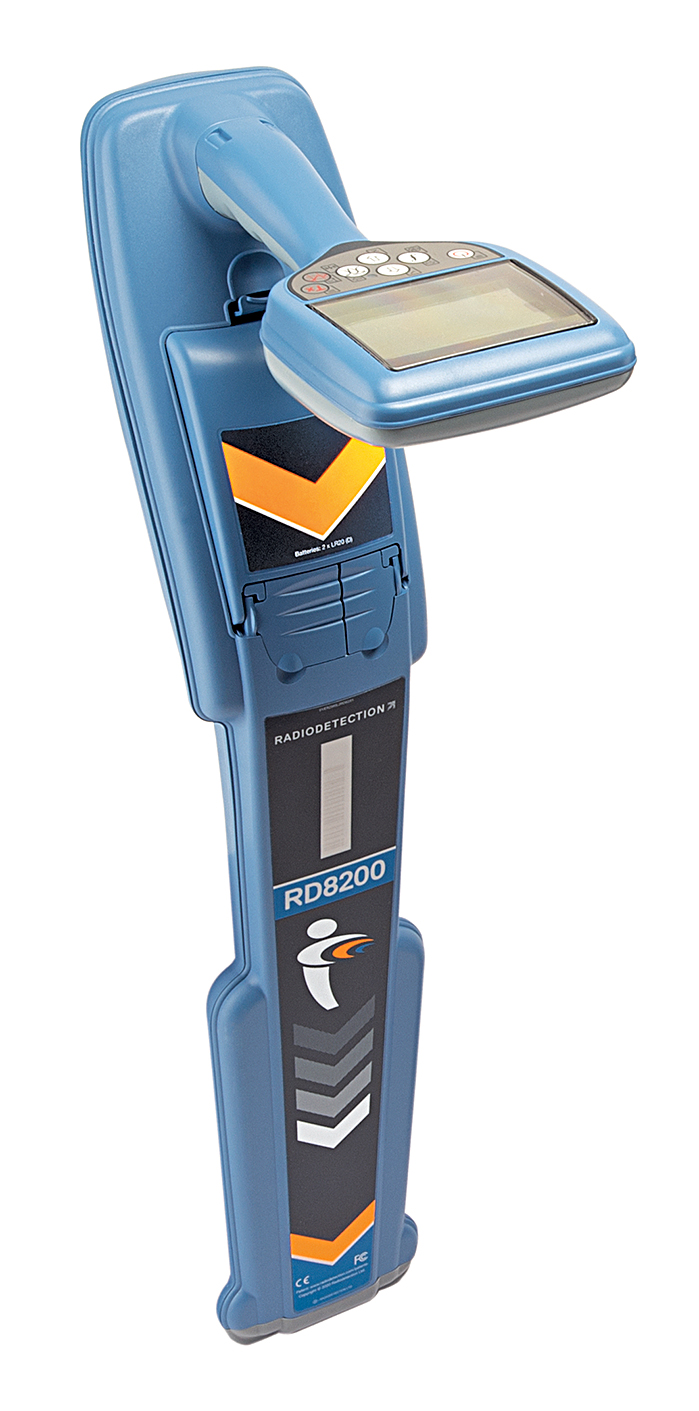

RD8200 Cable and Pipe Locator

The RD8200 range of locators and transmitters simplify the task of distinguishing and tracing utilities in congested networks, near substations or high voltage lines.

The RD8200 builds on the RD7200 platform with enhanced performance, and multi-frequency tracking, making it suitable for teams who demand high-end precision and full data traceability.

SKU: 10/RD8200-PARENT

Price range: $7,629.00 through $8,559.00 ex. GST

Power

With Soft Carry Bag?

Clear

Add to Quote

Circular loading icon. A gray radial array of rounded rectangles indicates a process is in progress. Loading symbol for websites and apps.

Speed, accuracy and reliable performance

Easy to setup and use

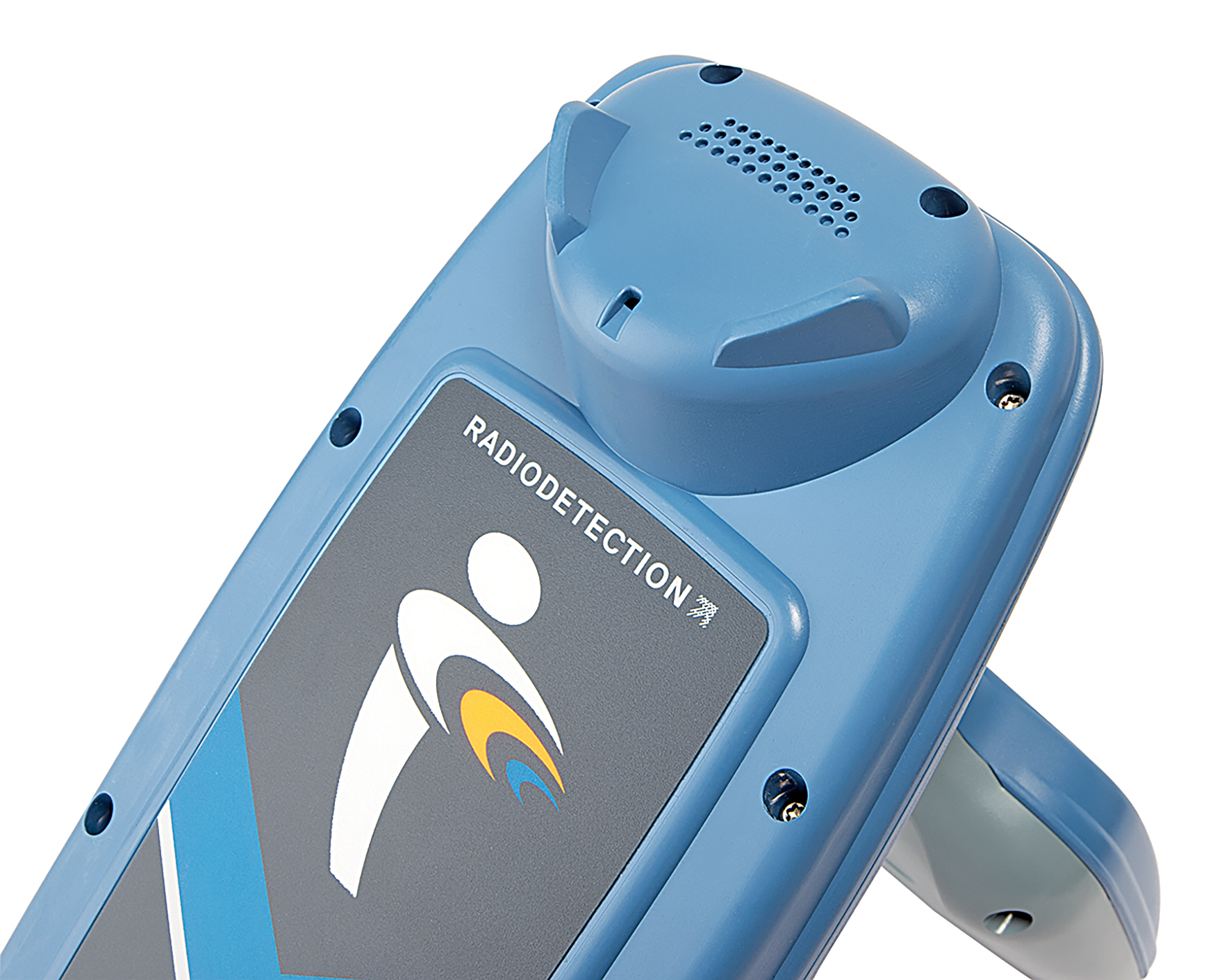

Sun light readable display, high performance audio system
and vibration alerts for noisy environments
Sensitive and accurate signal processing for reliable results

Adaptable in challenging environments

Ideal for congested underground infrastructures
Rejects strong interfering signals
Identify target power cable in the presence of many

Technology driven best on-site practice

Encourage correct locator handling for improved detection
Monitor field operations through the automatic usage
logging feature
Proof of work to differentiate your operations from your
competition and add value to your clients

Ergonomic design, premium quality

Rugged yet light weight and ergonomic
Designed and built to the highest standards in Great Britain
Self Test for confidence and trust in your locator measurements

Skip to PDF content

PERFORMANCE

Sensitivity	6E-15 Tesla 5µA at 1 meter (33kHz)
Dynamic range	140dB rms/√Hz
Selectivity	120dB/Hz
Depth measurement precision¹	± 3%
Locate accuracy	± 5% of depth
Active Locate filter bandwidth	± 3Hz, 0 < 1kHz ± 10Hz, ≥ 1kHz
Start-up time	Less than a second
Maximum depth readout²	Cable / Pipe: 30m Sonde: 19.5m

Locate Functions

Active Locate Modes	Five: Peak, Peak+™ (choice of combined Peak & Guidance or Peak & Null), Guidance, Broad Peak™, Null
Gain control	Guidance Mode: Automatic Other modes: Manual gain using “+” or “-“ with one touch to return to center (50% of Full Scale)
Custom locate frequencies	Up to 5 additional frequencies in the range 50Hz to 1kHz at 1Hz resolution
Active locate frequencies	21 Frequencies: ELF (98/128Hz), 512Hz, 570Hz, 577Hz, 640Hz, 760Hz, 870Hz, 920Hz, 940Hz, 1090Hz, 1450Hz, 4096Hz, 8kHz, 8440Hz, 9820Hz, 33kHz, 65kHz, 82kHz, 83kHz, 131kHz and 200kHz
Sonde Frequencies	4 Frequencies: 512Hz, 640Hz, 8kHz and 33kHz
Active Locate filter bandwidth	± 3Hz, 0 < 1kHz ± 10Hz, ≥ 1kHz

Physical Characteristics

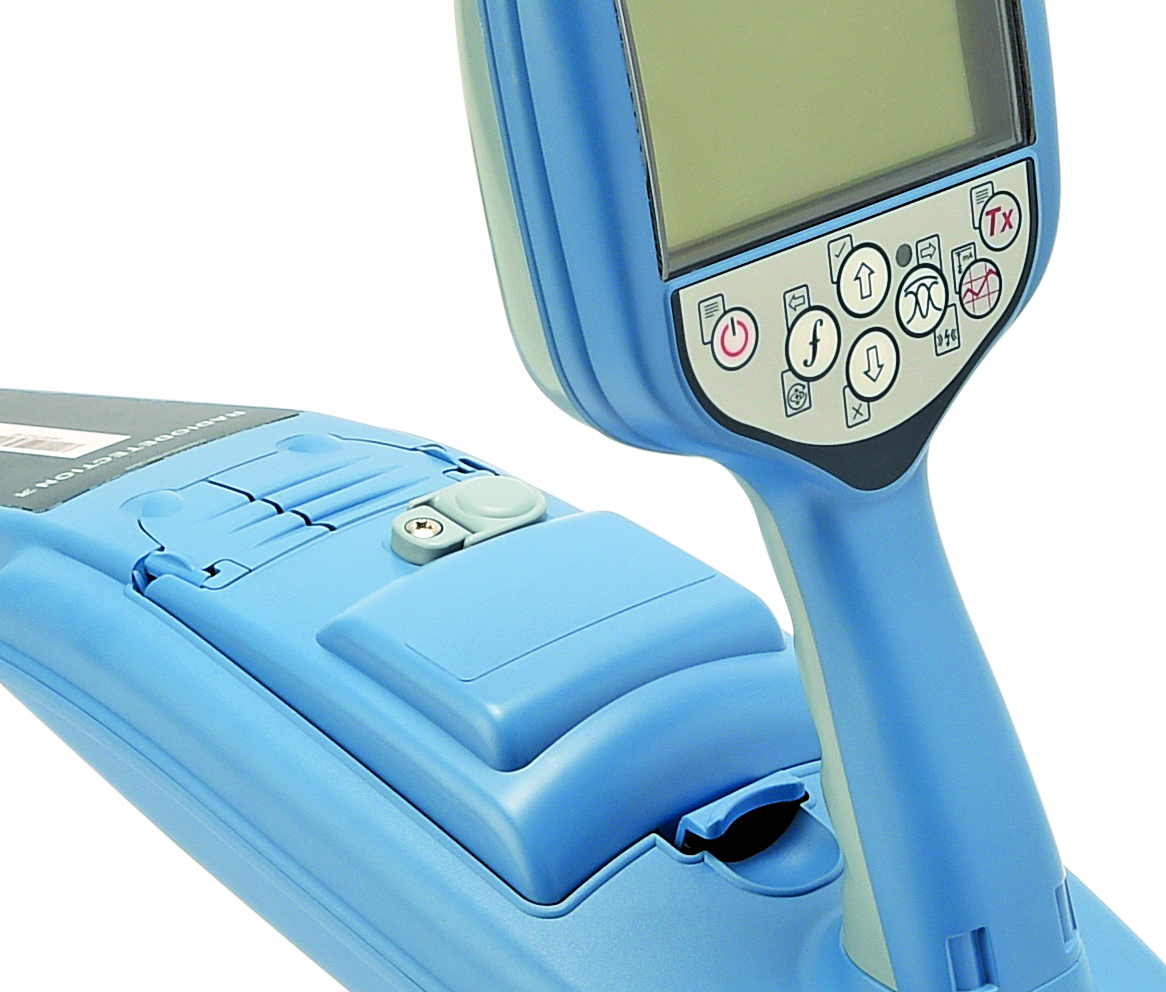

Weight	With Lithium-Ion battery pack fitted: 1.8kg With D-cell alkaline batteries fitted: 1.9kg
Ingress Protection Rating	IP65 Protected against dust ingress and jets of water³ applied from any direction
Operating temperature⁴	-20°C to 50°C
Unit dimensions	648mm × 286mm × 125mm

All specifications are measured in test conditions, at 21°C, and fitted with 2 × good quality alkaline batteries unless otherwise noted.
¹ Based on volumetric testing at a known fixed depth. True depth accuracy depends on factors such as ground composition, utility characteristics and the locate frequency / signal strength employed. Always follow local safe digging guidelines.
² The RD7200 will locate to greater depths in the right conditions, but depth accuracy will be compromised. Depth measurement will not be displayed beyond these depths.
³ Water projected by a nozzle at a pressure of 30kPa /0.3 bar / 4.4 psi in accordance with BS EN 60529 1992 A2 2013.
⁴ At very low temperatures, battery life will be degraded and measurement precision may be reduced.

Construction

Accurate and simple to use, the RD8200 comes with twenty one active and four passive frequencies (Power, Radio, CPS and CATV) that cover the majority of site locating tasks. A rugged, IP65 rated casing along with a high contrast screen make it suitable for use in all weather conditions.

Power

Current Direction, track the right line
Identify your target amongst a number of parallel utilities by applying a specialized CD signal from a Tx-10 transmitter. CD arrows displayed on the locator confirm you are tracing your target line.

Power Filters™, works where other locators won’t
When a transmitter can’t be connected, tracing individual power lines through dense networks can be a real challenge. Conflicting or powerful signals confuse or combine to create a wash of signal.

A single key press enables the use of the harmonic properties of power signals to establish if a signal comes from one source, or from multiple cables which you can then trace and mark.

Dynamic Overload Protection, rejects unwanted interference
Automatically filters out interference, enabling use in electrically noisy environments such as near substations or overhead power lines.

Water and Pipeline

A wide choice of active frequencies allow conductive pipes to be traced for long distances. Where sondes or cameras are used to survey pipes made from a variety of materials, including cast iron, clay, fibre, concrete and brick, the four RD8200 sonde frequencies are ideal for quickly locating and tracing their position.

Pipes with Cathodic Protection System can be followed using the CPS passive mode. CPS compass mode ensures alignment with the target pipeline.

Telecom

Program up to 5 extra frequencies to customize the RD8200 to signals found on your network. The RD8200 features higher frequencies to locate high impedance lines and sonde frequencies for duct and conduit tracing. Higher frequencies can also be used to trace sheathed domestic cables without grounding connections.

Cable sheath faults can be located to within 10 cm using 8 kHz Fault Find mode with a Radiodetection A-Frame
