MI 3205 Insulation Tester – TeraOhm 5 kV


September 09, 2020

Brands:Metrel

SKU:

MI-3205

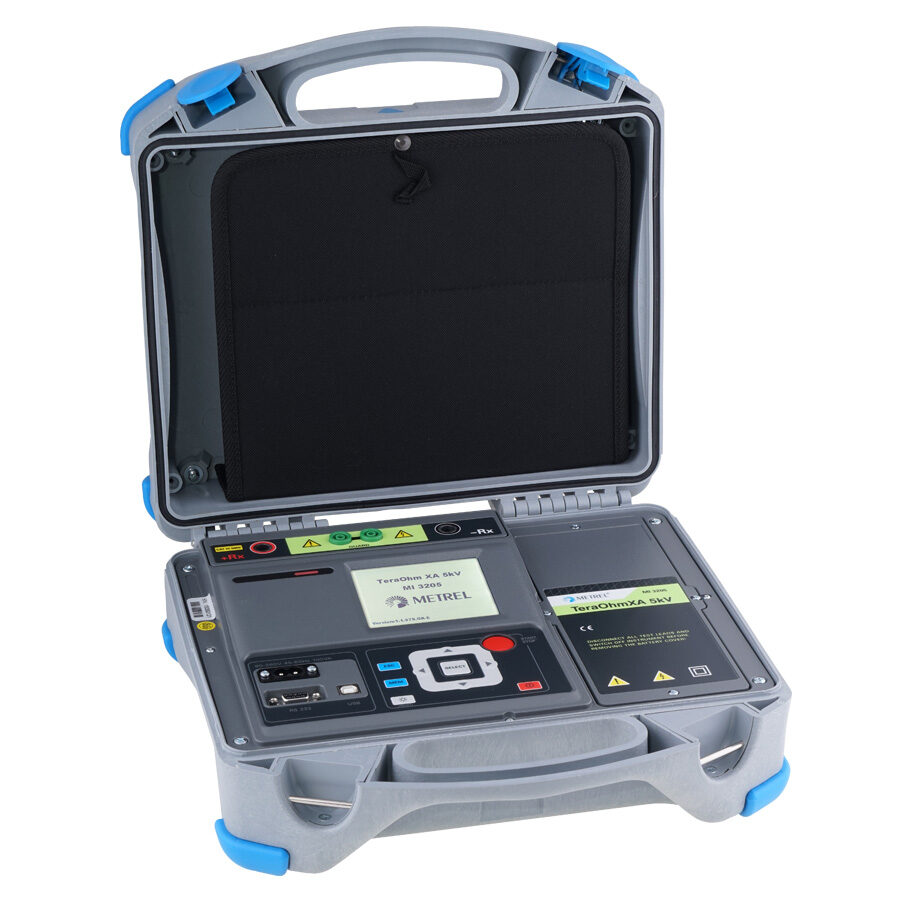

At Zedflo, we supply the MI 3205 TeraOhm XA 5kV from Metrel. It is a portable, battery or mains-powered insulation tester with excellent IP protection (IP65), intended for diagnosing of Insulation Resistance by using high DC test voltages of up to 5kV. Because of its robustness (CAT IV protection) and high immunity to radiated RF fields it is best suited for an industrial environment.

Clear




Features

  • Insulation resistance up to 15 TΩ
  • Adjustable test voltage (50 V…5 kV) 50 V and 100 V step
  • Programmable timer
  • Capacitance measurement
  • Charging rate for capacitive load < 1,5 s / μF at 5 kV
  • Automatic discharge of test object after completion of measurement
  • Guard terminal
  • High voltage breakdown detection
  • Custom defined tests
  • Auto adjustment function
  • Measurement results in numerical and graphical form
  • PC software HVLink PRO for downloading and analyzing of the test results and test report printing
  • Isolated RS232 and USB communication ports, BT interface
  • High quality accessories including shielded test leads in standard set
  • High EM interferences protection: Input AC current noise rejection (1 mA∞300 V) and additional averaging of the result (5, 10, 30, 60)
  • CAT IV / 600 V
  • Increased working nominal altitude to 3000m
  • High power Li-ion battery pack (14.8V, 4.4Ah)
  • Mains and rechargeable battery power supply
